Omron fh series User Manual

2

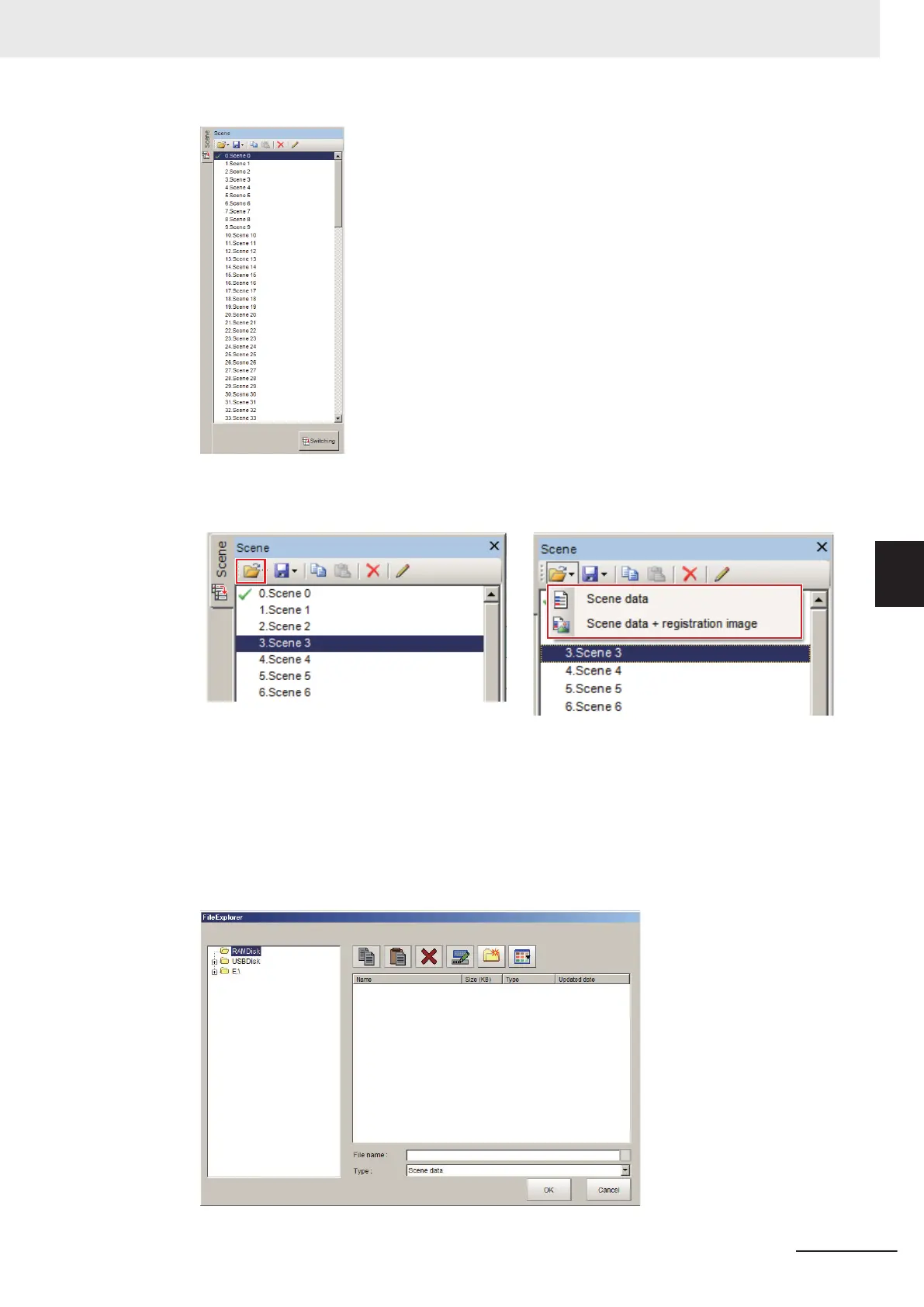

Select a scene on the scene list to load and click Open.
3 Select whether to load the scene data or the scene data and the registered image together.
l
Loading a scene data
1 Click Scene data.
FileExplorer is displayed.
5 Creating Measurement Scenes
5 - 35
FH/FHV Series Vision System User’s Manual (Z365-E1)
5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-3 Editing Scenes [TDM Editor]

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
