2 Click a scene data to read.
3 Click OK.

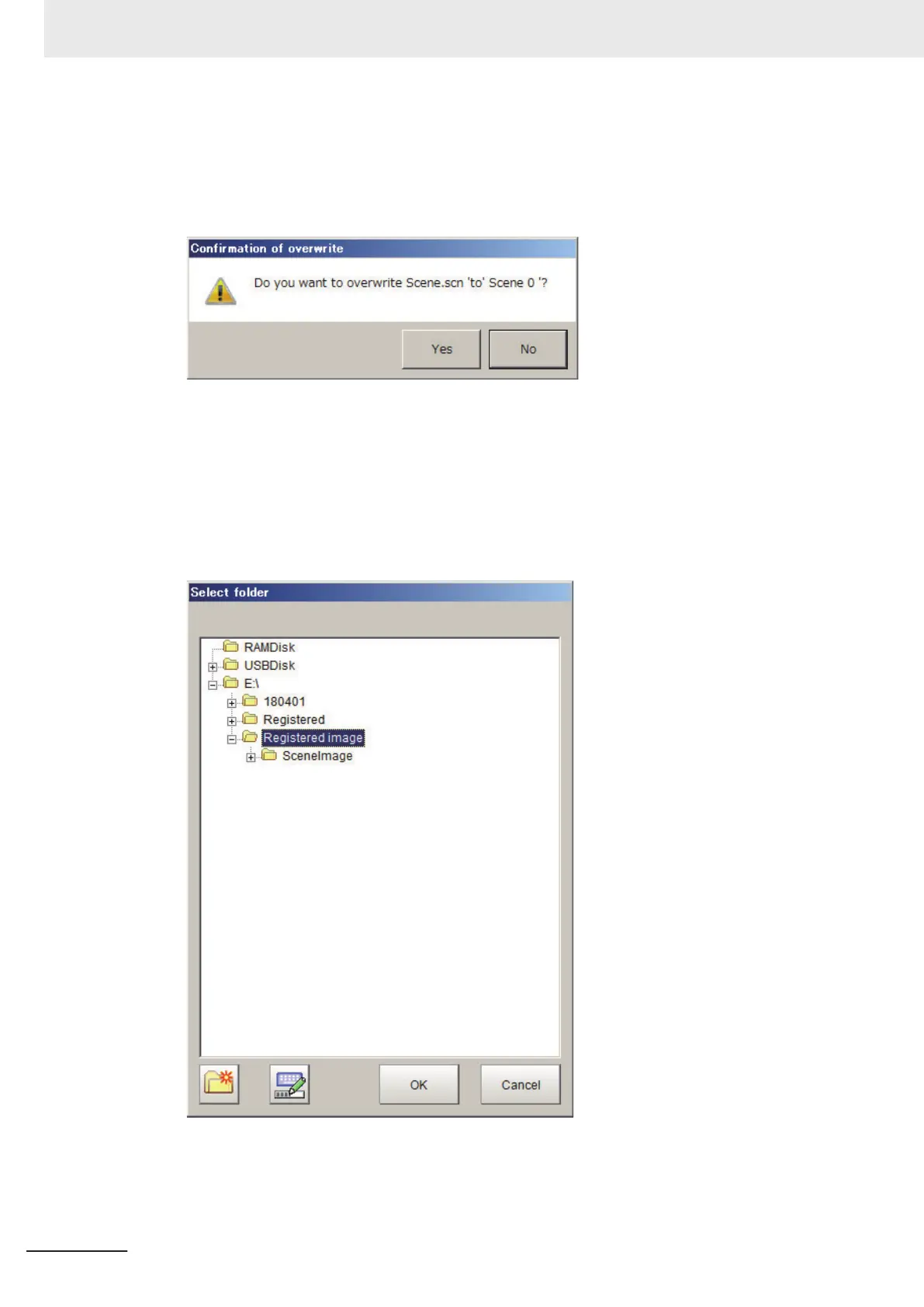

Confirmation of overwrite dialog box is displayed.
4
Click Yes.
l
Loading a scene data + registration image
1 Click Scene data + registration image.
Select folder dialog box is displayed.
2 Select a folder containing a scene data and registered images to load.
3 Click OK.
5 Creating Measurement Scenes
5 - 36
FH/FHV Series Vision System User’s Manual (Z365-E1)
