3

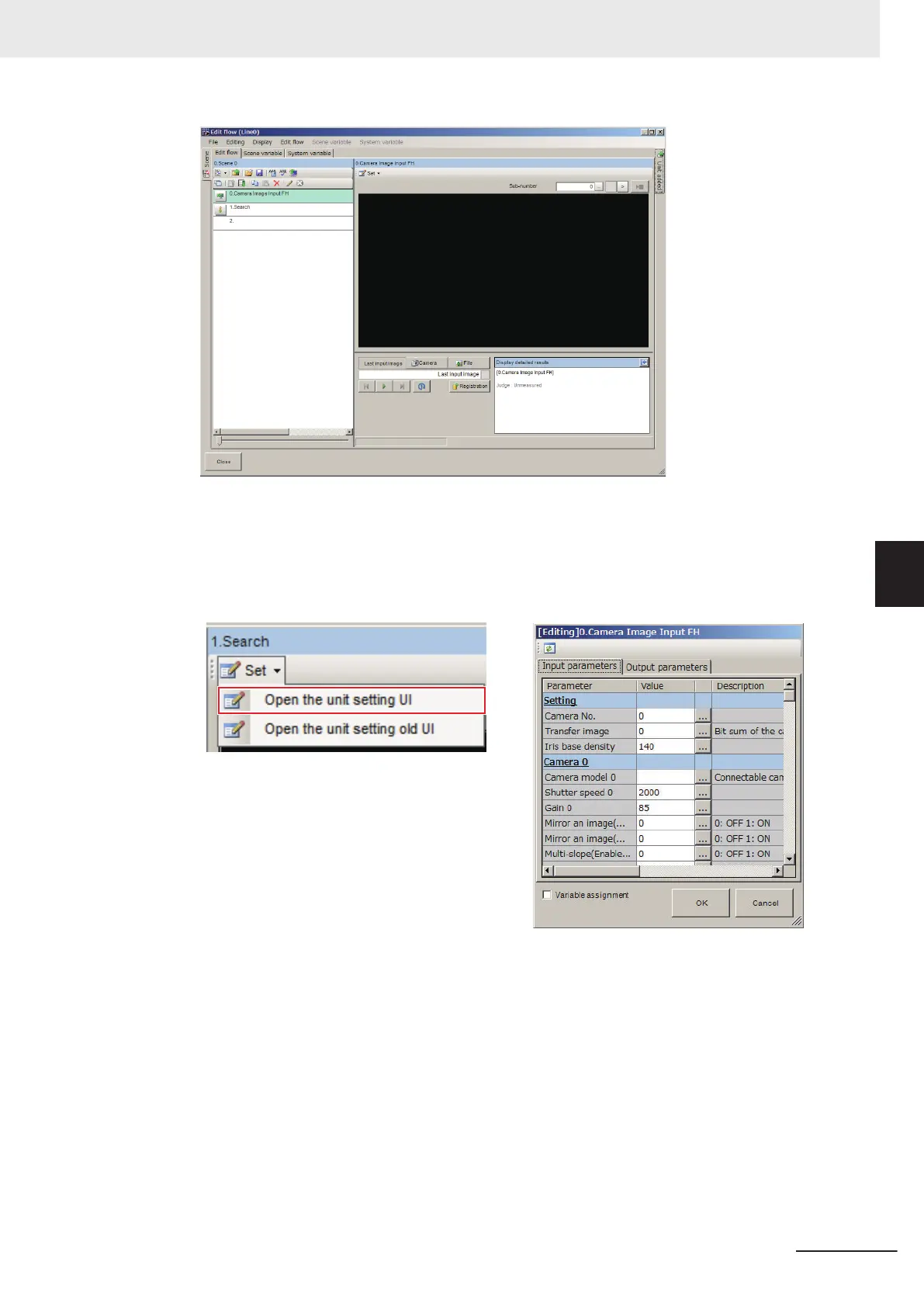

On the Unit list (flow), select a processing unit to assign variables.
4
Click Set on the Unit area and click Open the unit setting UI.
The Editing dialog box for the selected processing unit is displayed.
5 Check the check box for the Variable assignment.
The Variable column is displayed.
5 Creating Measurement Scenes
5 - 61
FH/FHV Series Vision System User’s Manual (Z365-E1)
5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-4 Using Variables

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
