6 In the Input parameter tab or Output parameter tab, select a parameter to assign a variable
and click....

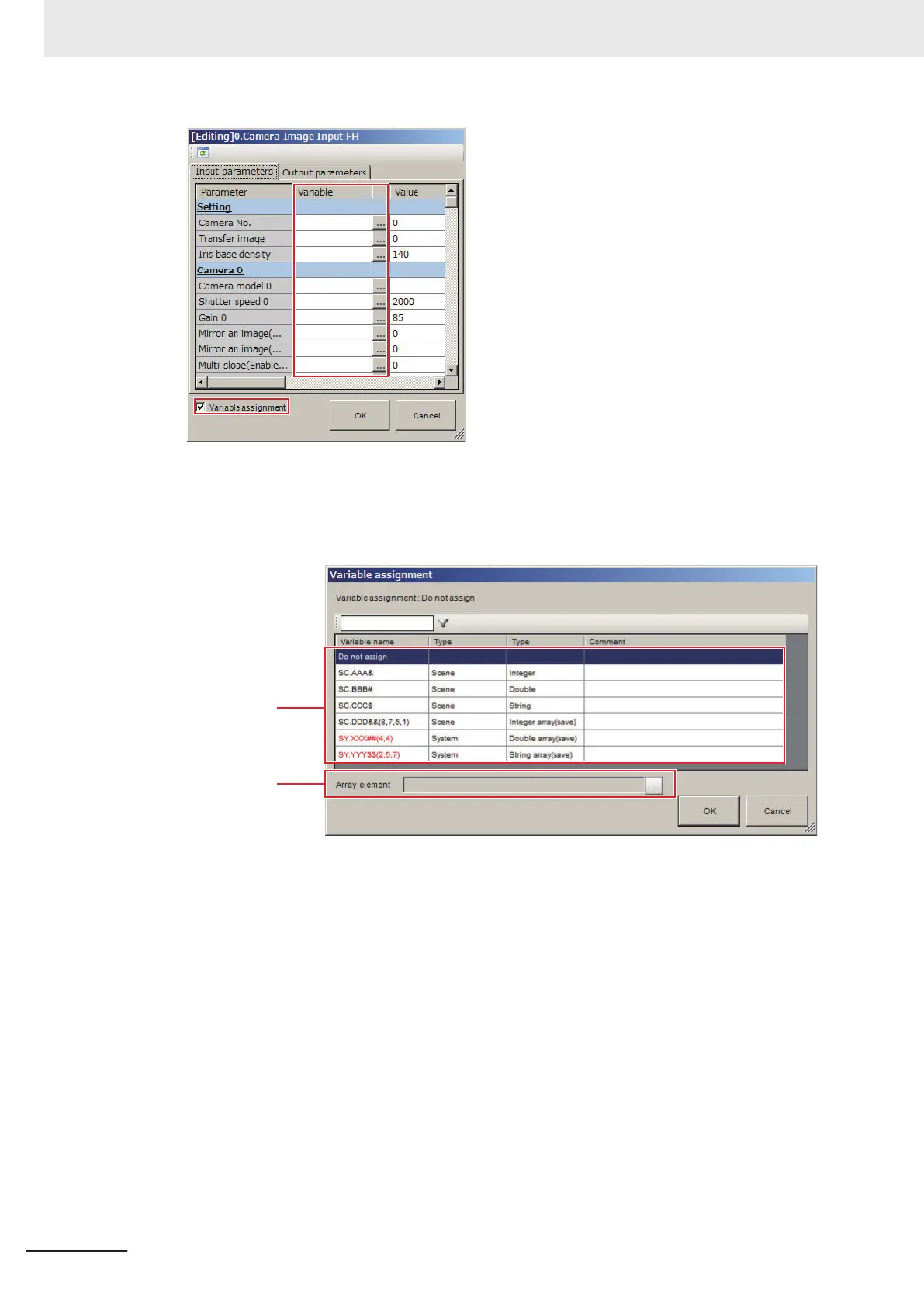

The Variable assignment dialog box is displayed.
rray element
input text box
7
On the Variable area, click the variable to assign.
For Array type variables, enter an element number to the Array element input text box with
comma-delimited format.
(One-dimensional element number, Two-dimensional element number, Three-dimensional ele-
ment number)
8 Click OK.
The assigned variables are reflected in the Input parameter tab and Output parameter tab of
the Editing dialog box. When a variable is assigned to a parameter, the cell background color
of the value becomes green. When a System variable is assigned to an Input parameter, the
variable name is displayed in red.
