Omron fh series User Manual

2

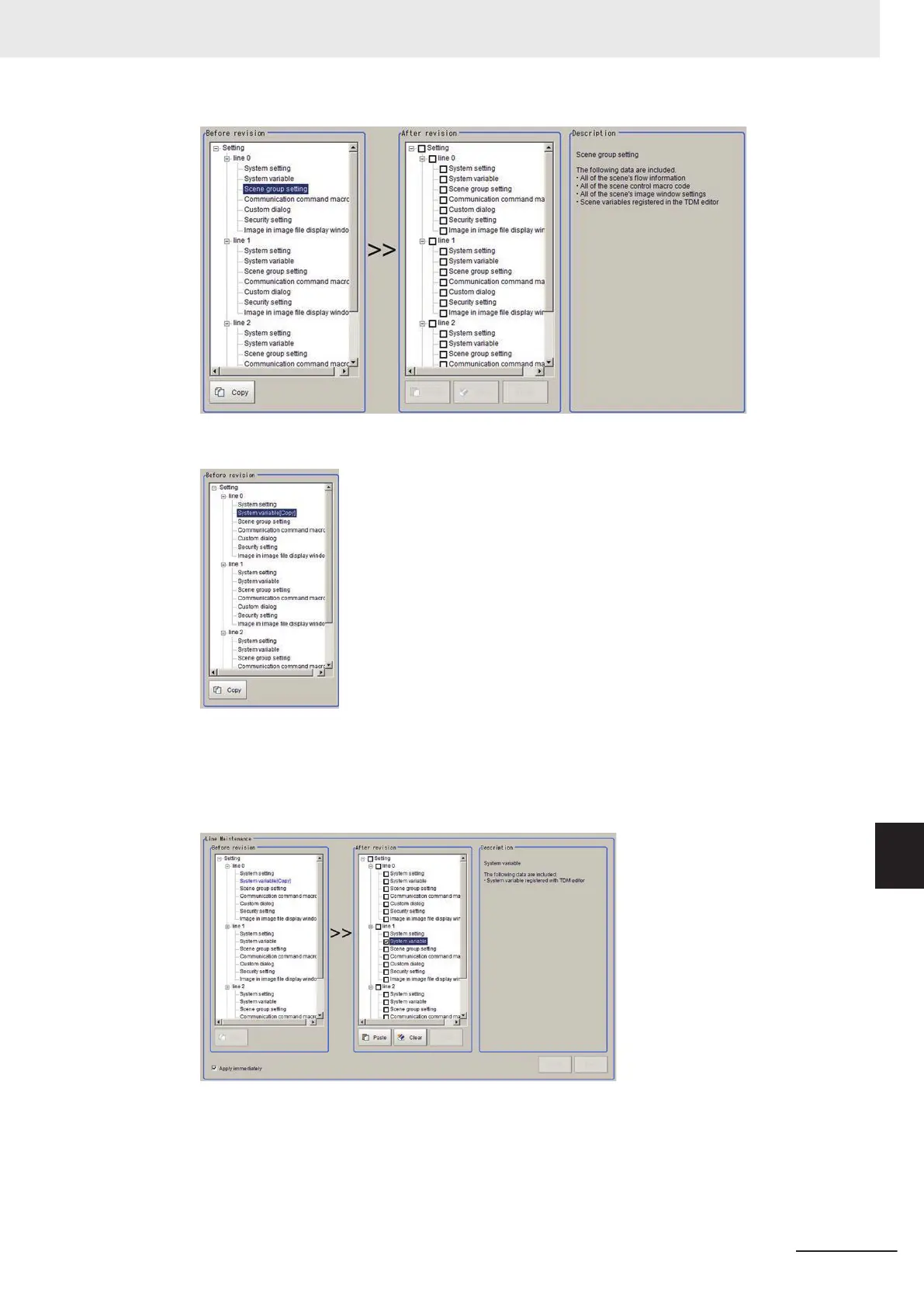

Click Copy.
3
In the After revision area check the settings that will be copied.
The Paste button will be grayed out in the following cases.
• If the same line as that selected for setting copy is checked.
• If the setting data type differs from that which is checked for Copy operation.
4
Click the Paste button.
5
The Confirm dialog screen is displayed.
After verifying the setting data in the After revision area is correct, click the Yes button.
9 Saving/Loading Data
9 - 43
FH/FHV Series Vision System User’s Manual (Z365-E1)
9-8 Copying Settings for Each Line in Multi-line Random-trigger Mode [Line Maintenance]
9
9-8-3 Operating with Functional Limitations

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
