Waterproof
packing
Hood base

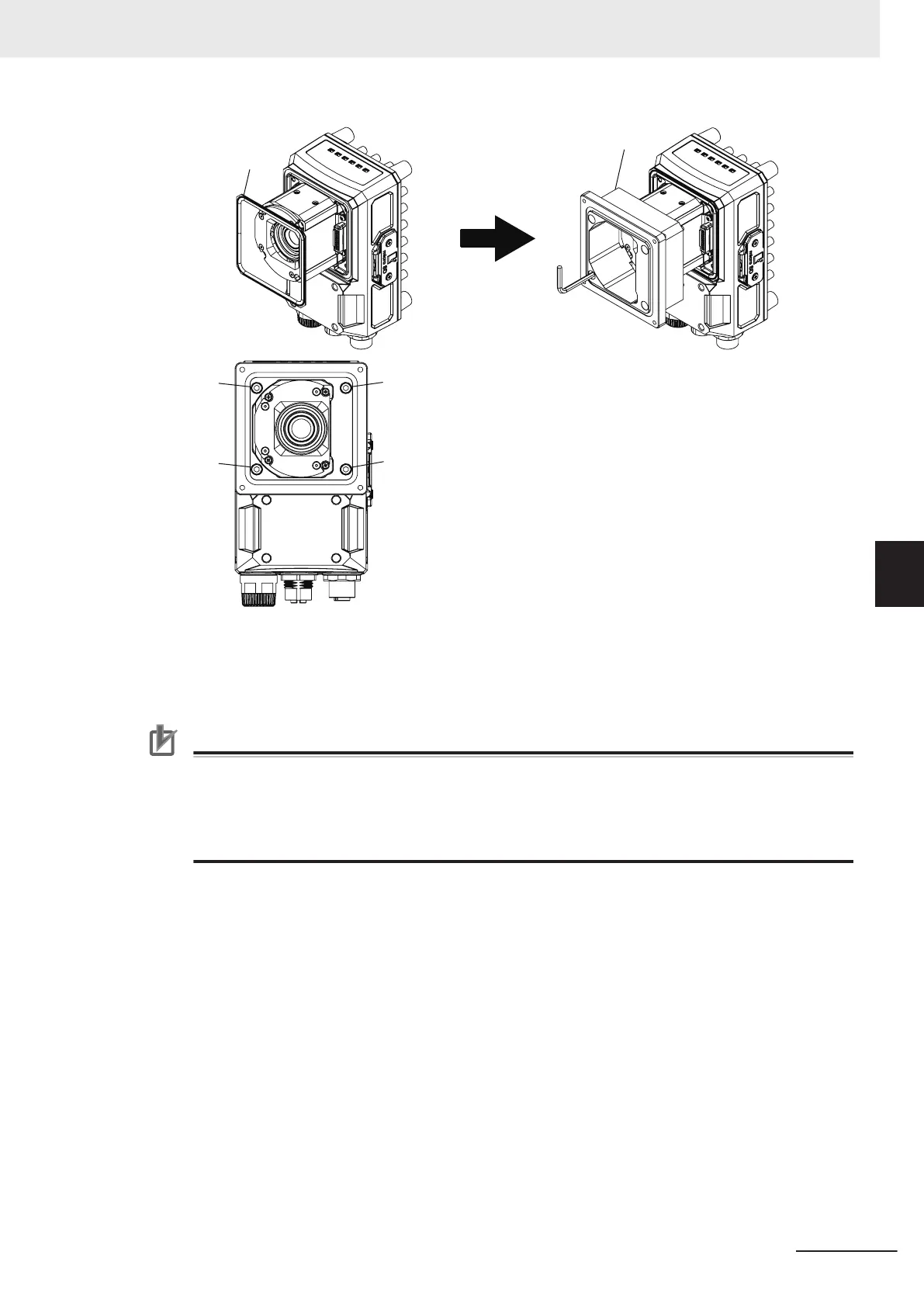

3 Attach the waterproof packing and hood cover.
Using the same hexagon wrench, tighten the screws in the order shown below.
Tightening torque (M2.5 Hexagon screw): 0.3 N・m
Precautions for Correct Use
• Place the waterproof packing along the groove of the Smart Camera, being careful not to
twist it.
• Pass the hexagon wrench included with the waterproof hood through the holes and tighten
the screws in order of 1 to 4 as shown in the figure below.
• Recommended tightening torque (M3 Hexagon socket screw): 0.54 N・m
5 Installation
5 - 9
FHV Series Smart Camera Setup Manual (Z408-E1)
5-1 Assembling Equipment
5
5-1-4 Lens Module / IP67 Configuration
To Next Page
