Omron FHV Series User Manual

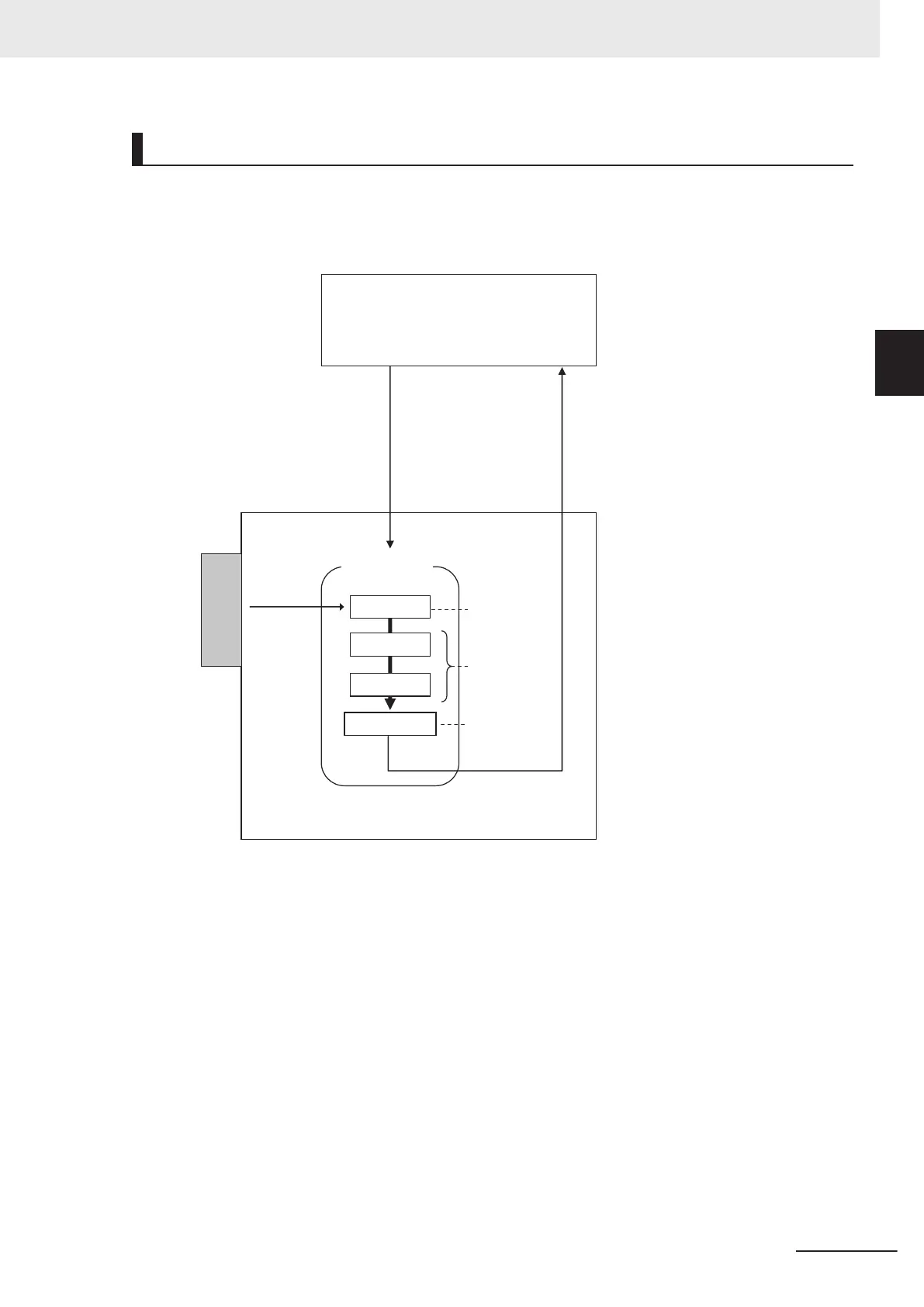

Concept of Measurement Processing
When the FHV receives a measurement trigger from the PLC or other external device, the image input
from a Camera, measurement processing, and output of measurement results (e.g., OK/NG judge-
ment results) are executed in the order that those processing items are registered in the measurement
flow.
Defect
Search
Measurement flow
FHV
Output Unit
Image Sensor
Measurement
trigger
• Judgement
result
• Measured
values
Measurement
results are
output
The measurement flow is executed basically in
order of the unit numbers.
Image input
from the
Camera
Measurement
processing of
the input image
PLC or other external device
Image Input
In the measurement flow, you can change the processing to execute based on the inspection results
or input conditions of the vision inspection.
2 Overview of FHV Series
2 - 3
FHV Series Smart Camera Setup Manual (Z408-E1)
2-1 Overview of System
2
2-1-1 Basic System of Measurement
