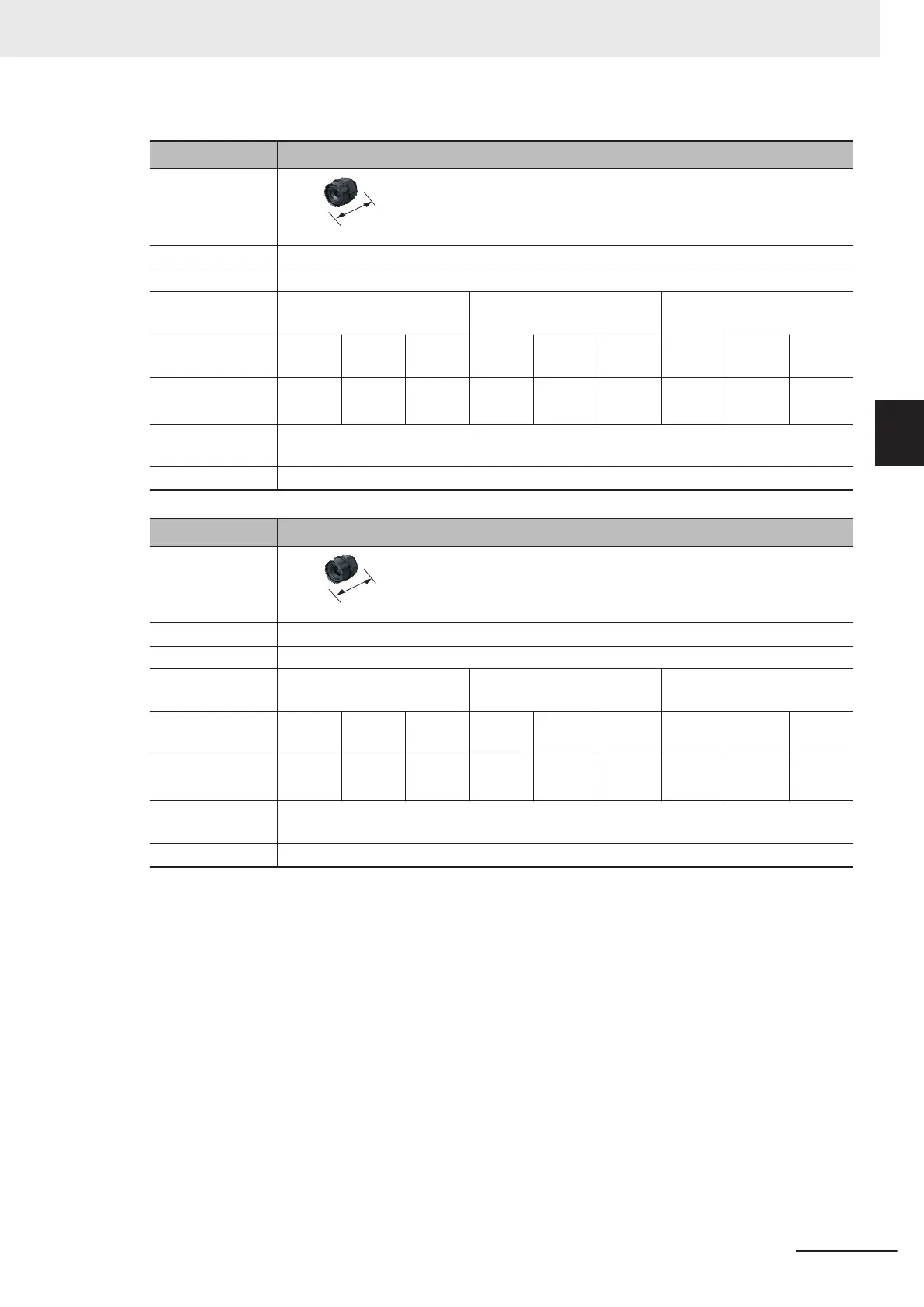

Model
3Z4S-LE VS-MCA10-□□□□
*1
Appearance/
Dimensions [mm]
24.2 [0.02x] 〜 25.5 [0.15x]
31 dia.
Focal length [mm] 10 mm
Filter size M27.0 P0.5
Optical
magnification
0.02x 0.10x 0.15x
Aperture
(fixed F No.)
2 5.6 8 2 5.6 8 2 5.6 8
Depth of field
[mm]
*2
460.0 1140.0 1640.0 19.2 49.6 70.4 9.2 22.8 32.7
Maximum sensor
size
1/2-inch
Mount C mount
Model
3Z4S-LE VS-MCA15-□□□□
*1
Appearance/
Dimensions [mm]
27.9 [0.03x] 〜 32.0 [0.30x]
31 dia.
Focal length [mm] 15 mm
Filter size M27.0 P0.5
Optical
magnification
0.03x 0.20x 0.30x
Aperture
(fixed F No.)
2 5.6 8 2 5.6 8 2 5.6 8
Depth of field
[mm]
*2
186.7 515.6 728.9 4.8 13.4 19.2 2.3 6.5 9.2
Maximum sensor
size
2/3-inch
Mount C mount
3 Configuration
3 - 23
FHV Series Smart Camera Setup Manual (Z408-E1)
3-4 C Mount Lenses
3
3-4-1 Specifications
