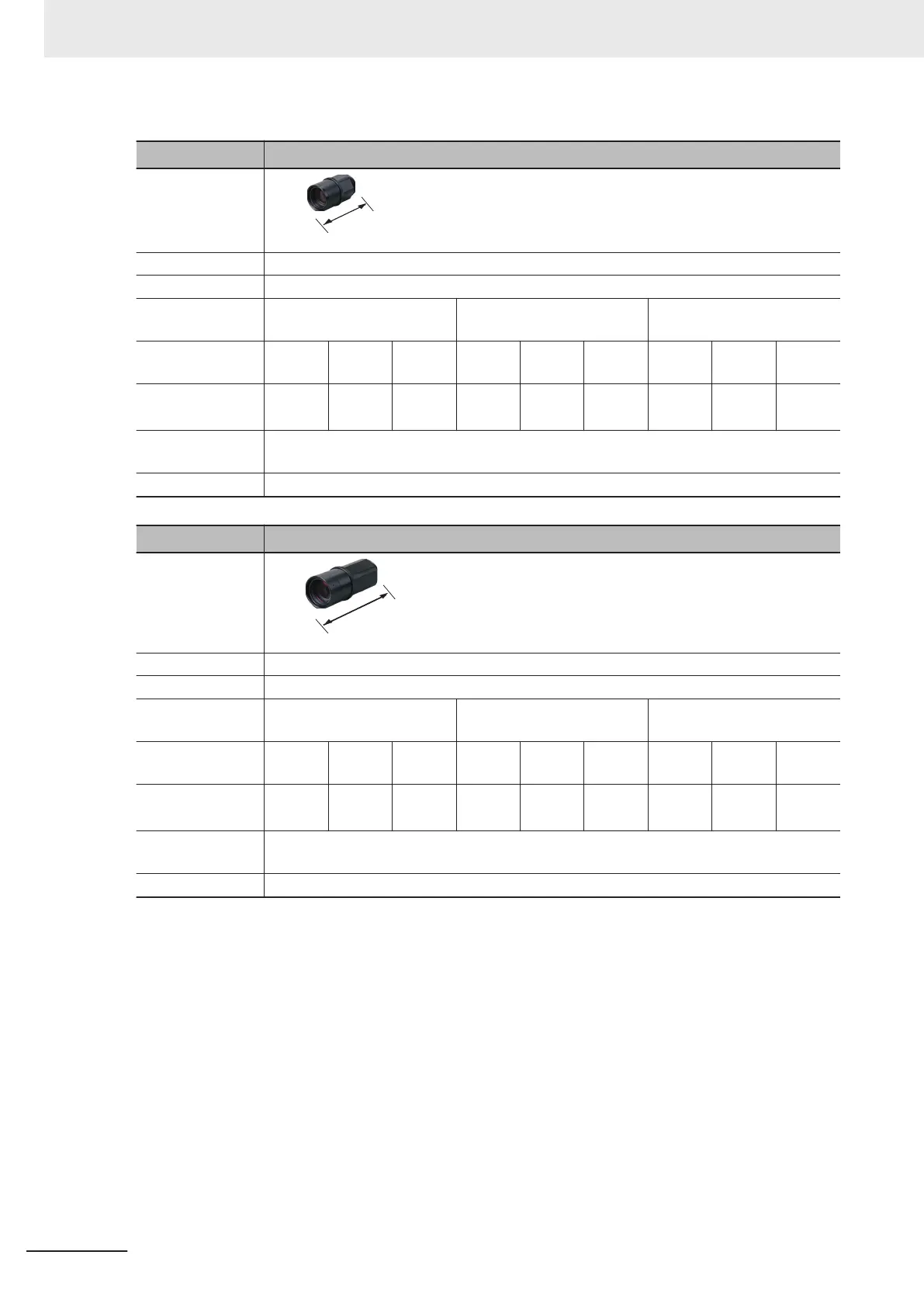

Omron FHV Series User Manual

Model
3Z4S-LE VS-MCA50-□□□□
*1
Appearance/
Dimensions [mm]
44.0 [0.08x] 〜 63.4 [0.48x]
31 dia.
Focal length [mm] 50 mm
Filter size M27.0 P0.5
Optical
magnification
0.08x 0.20x 0.48x
Aperture
(fixed F No.)
2 5.6 8 2 5.6 8 2 5.6 8
Depth of field
[mm]
*2
32.5 75.0 107.5 6.0 13.4 19.2 1.3 2.9 4.1
Maximum sensor
size
2/3-inch
Mount C mount
Model
3Z4S-LE VS-MCA75-□□□□
*1
Appearance/
Dimensions [mm]
70.0 [0.14x] 〜 105.5 [0.62x]
31 dia.
Focal length [mm] 75 mm
Filter size M27.0 P0.5
Optical magnifica-
tion
0.14x 0.20x 0.62x
Aperture (fixed F
No.)
2 5.6 8 2 5.6 8 2 5.6 8
Depth of field
[mm]
*2
16.7 28.6 41.2 9.2 13.4 19.2 1.3 2.5 3.6
Maximum sensor
size
2/3-inch
Mount C mount
*1. Insert the aperture into □□□□ in the model number as follows.
F=2: Blank
F=5: F5.6
F=8: F8
*2. When an allowable diameter of confusion circle is 0.04 mm
3 Configuration
3 - 26
FHV Series Smart Camera Setup Manual (Z408-E1)
