Omron FHV Series User Manual

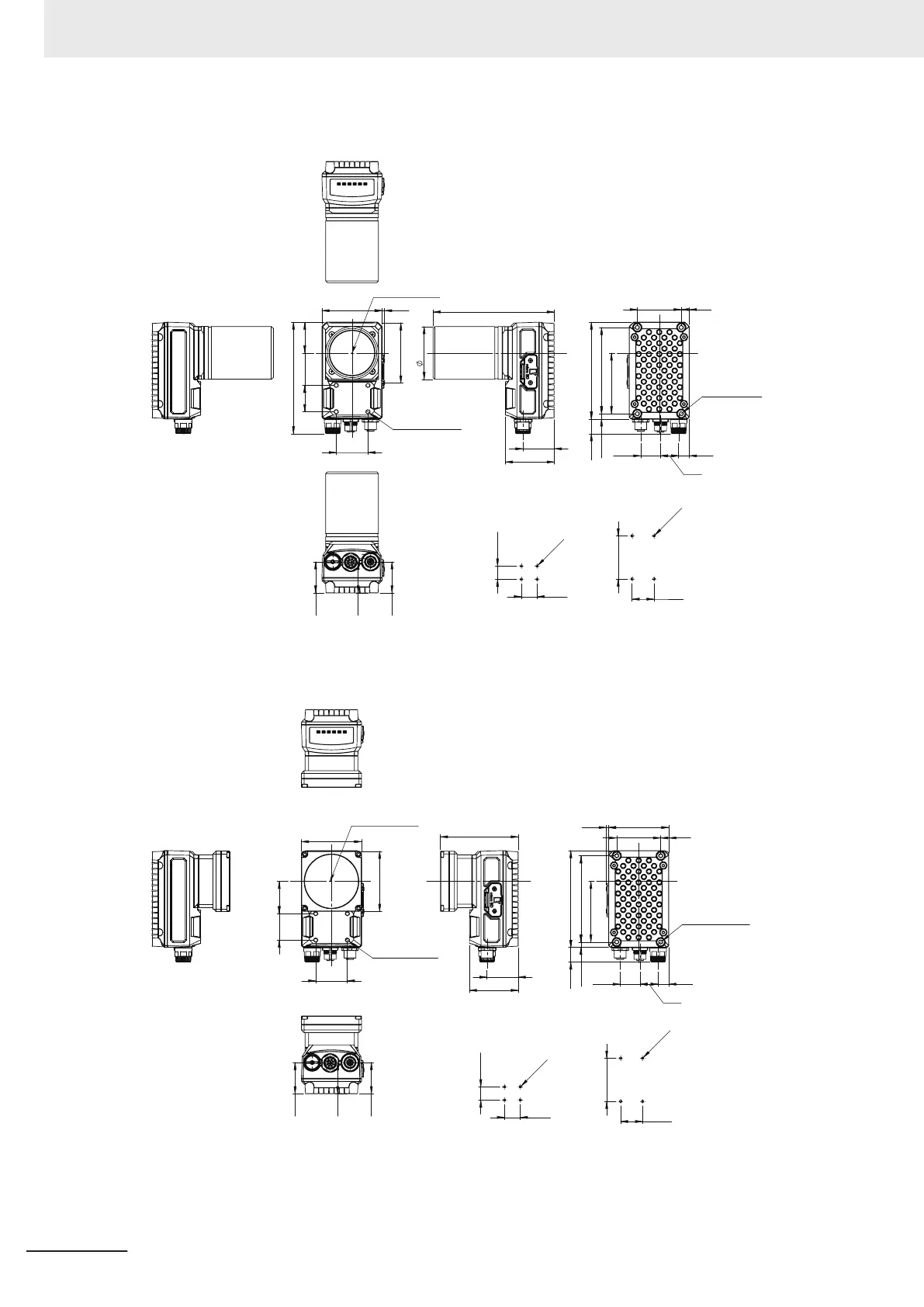

• Outer size when the waterproof hood, FHV-XHD-L, is mounted.
30.0
36.0
4-M5.0
68.4
126.7
68.5 2.7
36.8 35.0
55.5
137.7
60.0
35.5
50.0
98.0
9.2
4-M5.0
110.0
6.0
16.7
12.2
20.5
22.5
69.0
35.5 35.0 35.5
36.0
30.0
50.0
98.0
OPTICAL AXIS
Mounting screw holes (The tolerance: ± 0.1 mm)
depth4
depth6
Recommenden tightening torque: 2.3N・m
5.5dia.
5.5dia.
(Unit: mm)
• Outer size when the waterproof hood, FHV-XHD-LED, is mounted.
30.0
36.0
4-M5.0
68.4
68.4
36.8
55.5
88.5
35.5
50.0
98.0
9.2
4-M5.0
110.0
6.0
16.7
68.52.7
12.2
20.5
22.5
69.0
35.5 35.0 35.5
36.0
30.0
50.0
98.0
OPTICAL AXIS
Mounting screw holes (The tolerance: ± 0.1 mm)
depth4
depth6
Recommenden tightening torque: 2.3N・m
5.5dia.
5.5dia.
(Unit: mm)
3 Configuration
3 - 44
FHV Series Smart Camera Setup Manual (Z408-E1)
