102 LD Platform OEM User's Guide 11970-000 Rev H1
8.3 Safety Inspection
Rear Lifting Area
Lift at the center underside of the platform, where the skin has a cutout section. Do not lift any-
where else! Refer to the following illustration:

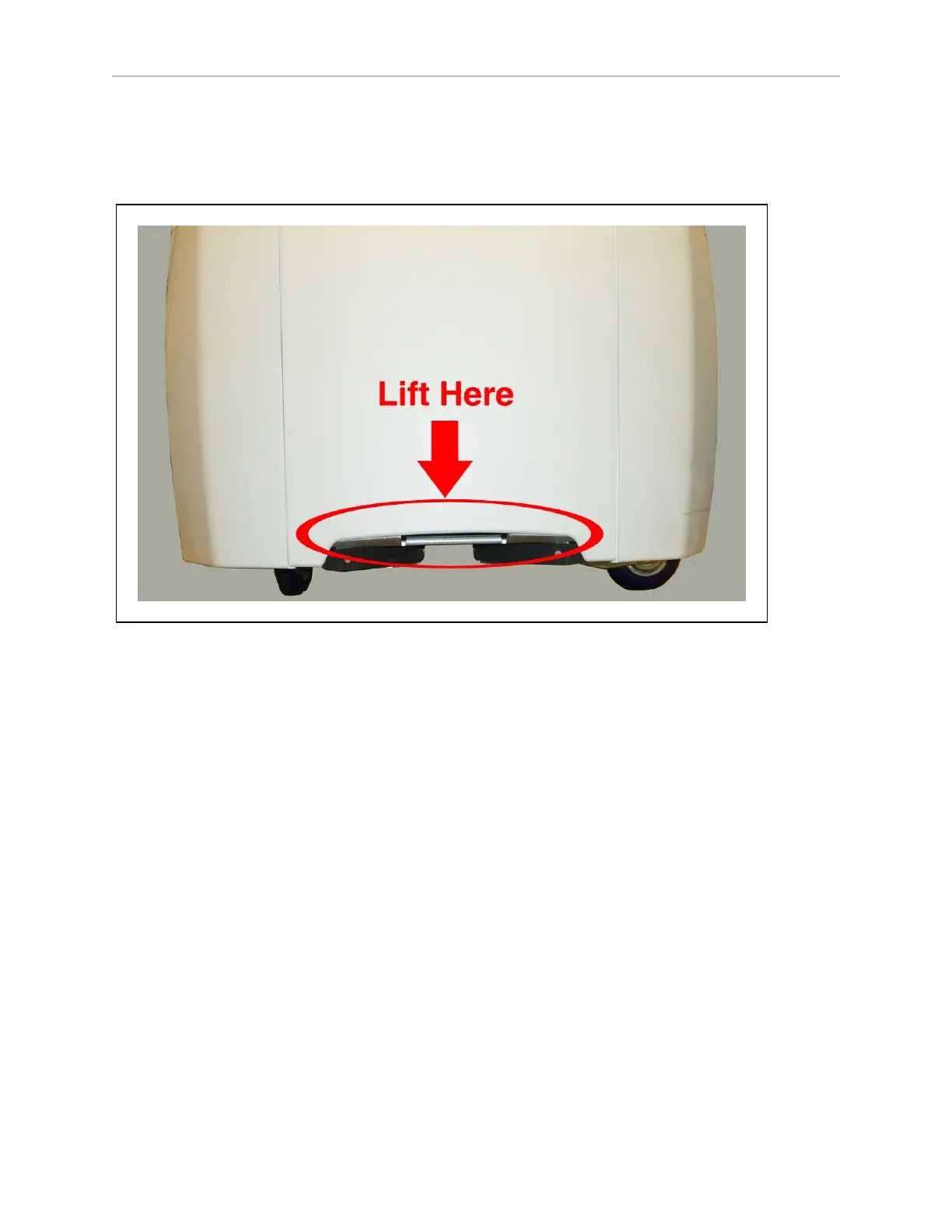

Figure 8-3. Bottom of battery door skin. Lift from the frame, not the skin.
8.3 Safety Inspection
Warning Devices
Do weekly inspections of the following warning devices for proper function.
Flashing Light
Each AIV must have a readily visible flashing light, to serve as a warning whenever the AIV
is ready to move or is moving. The exact nature of this light will vary depending on how the
payload structure was designed and built.
Light Discs
Check the light discs on each side of the AIV for proper function every week.
Buzzer
Check the warning buzzer for proper function. To comply with applicable standards, it is
important that the buzzer be audible in all operating conditions and environments.
