124 LD Platform OEM User's Guide 11970-000 Rev H1
8.8 Removing and Installing Skins

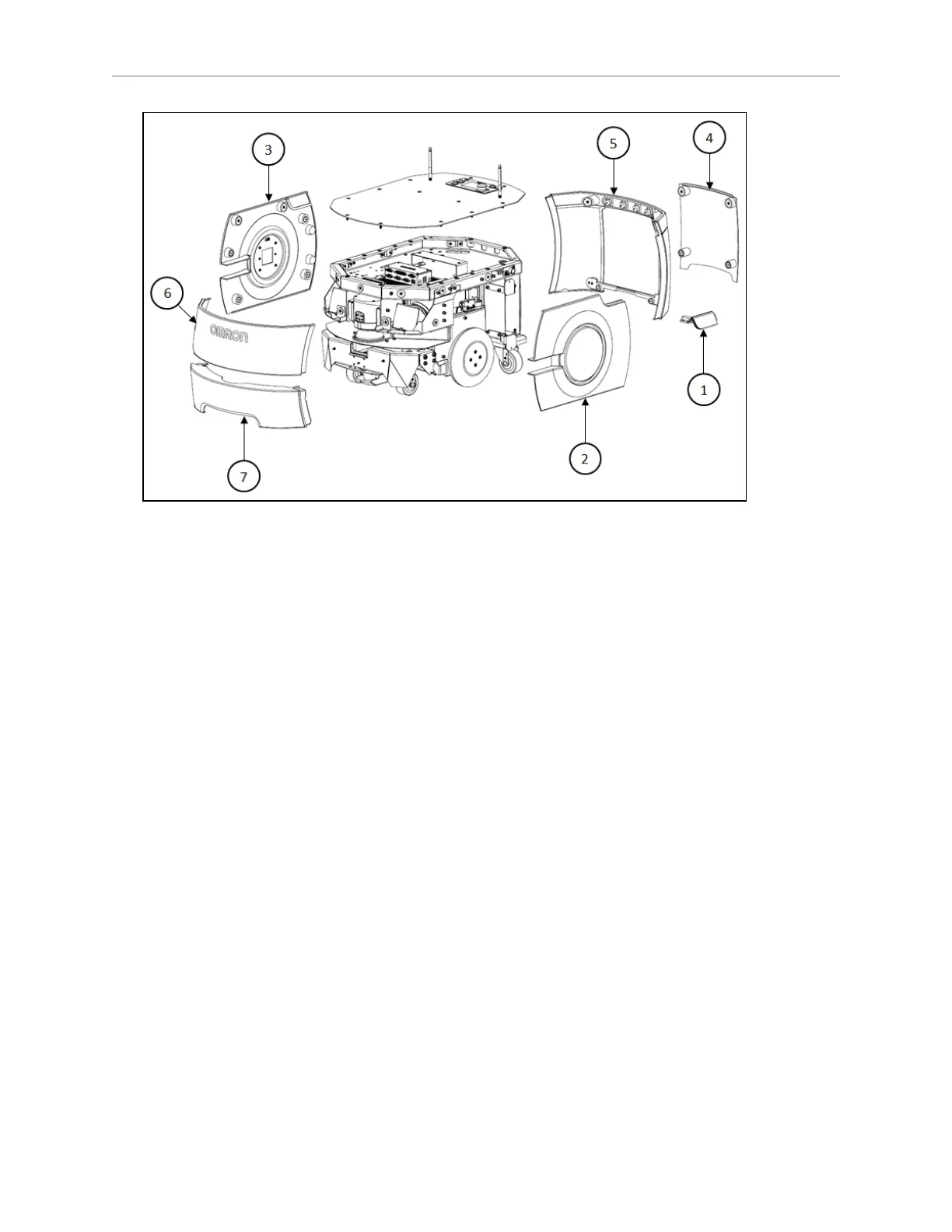

Figure 8-17. LD Platform OEM Skins
The skins are:
1.
Access Panel
2.
Left Side Skin
3.
Right Side Skin
Both side skins include a light disc and cover.
4.
Battery Door Skin
5.
Rear Skin
6.
Front Upper Skin
7.
Bumper
With the exception of the bumper, no tools are needed for either the removal or installation of
the platforms skins.
Removing Skins
NOTE:After removing skins, place them inner-side down, so the outer surfaces
don't get scratched.
You can remove the skins in the order in which they are listed above.
l
Remove the battery door skin before removing the rear skin and side skins.
l
The front upper must wait for the two side skins.
