Chapter 3: Setup

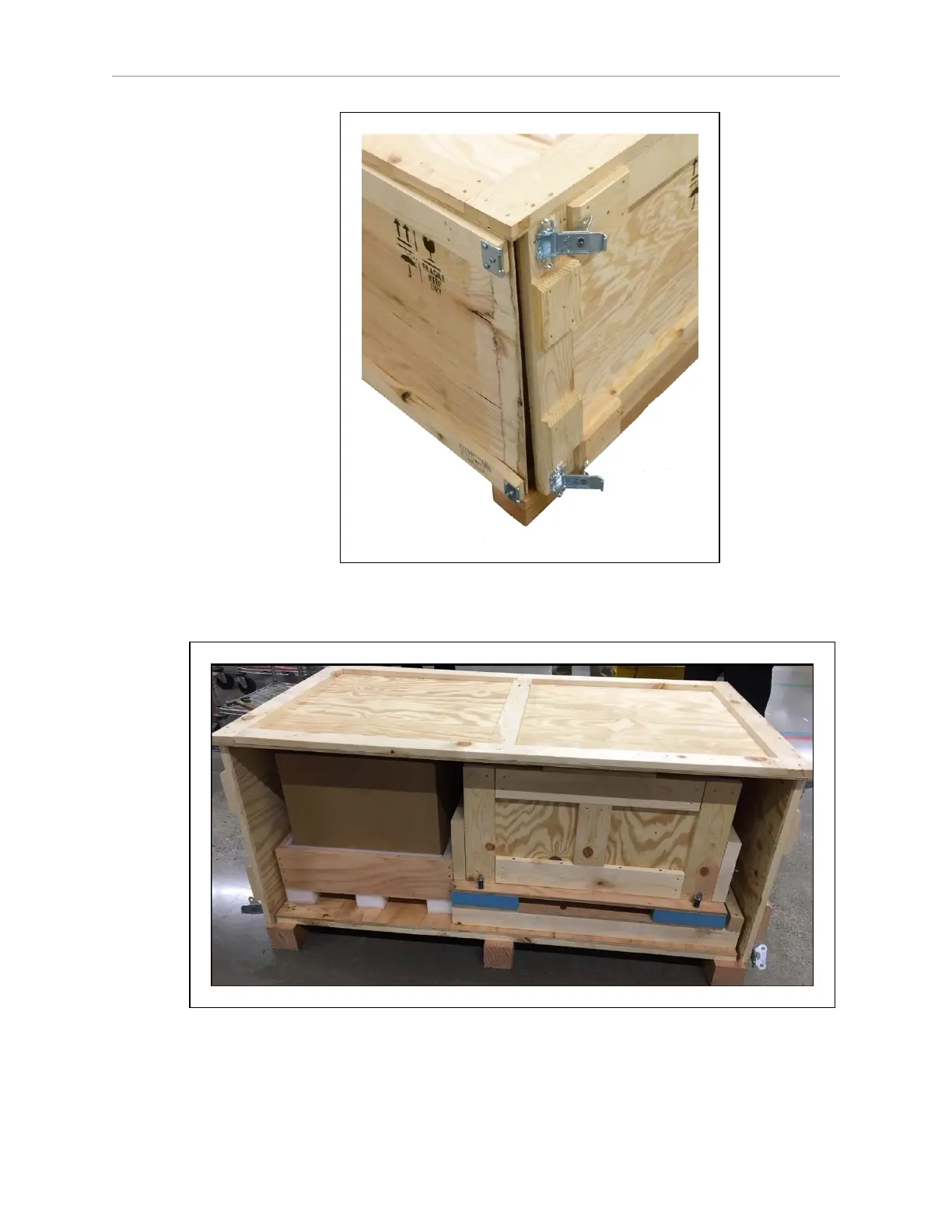

Figure 3-4. Two of Four Spring Latches Holding the Front Panel
Set the front panel aside. It will be used as a ramp later in this procedure.
Figure 3-5. Crate with Front Panel Removed
4.
Slide off the crate cover to reveal the crate, pallet, and contents.
11970-000 Rev H1 LD Platform OEM User's Guide 29
