Chapter 5: Payload Structures

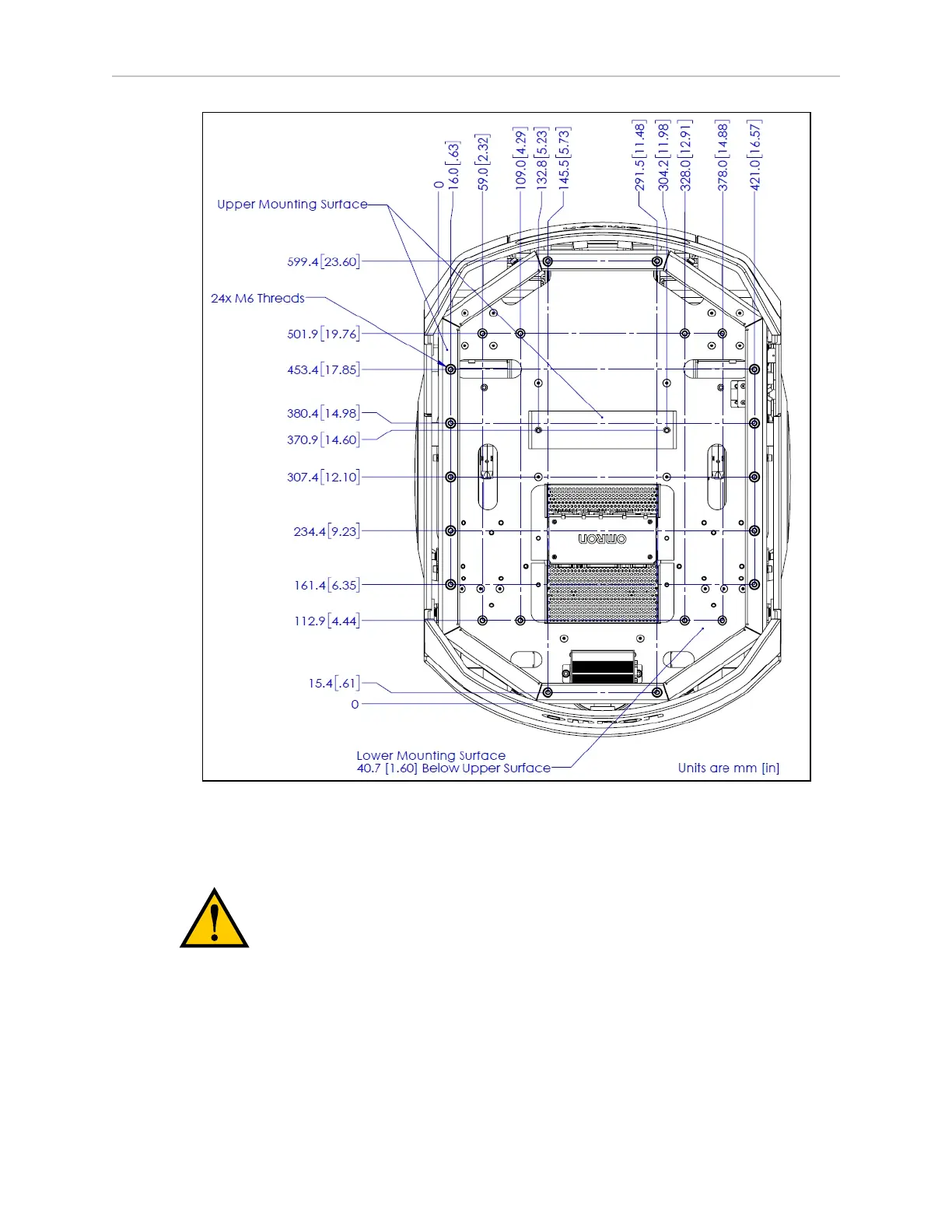

Figure 5-1. Platform Deck Dimensions, with M6-threaded Holes
In the preceding figure, all of the M6 self-clinching nuts (A)have a torque limit of 3 N·m (26.6
in-lb
f
).
CAUTION: Do not exceed this torque when attaching your payload structure to
these self-clinching nuts. See NOTE that follows.
11970-000 Rev H1 LD Platform OEM User's Guide 53
