 NA Units

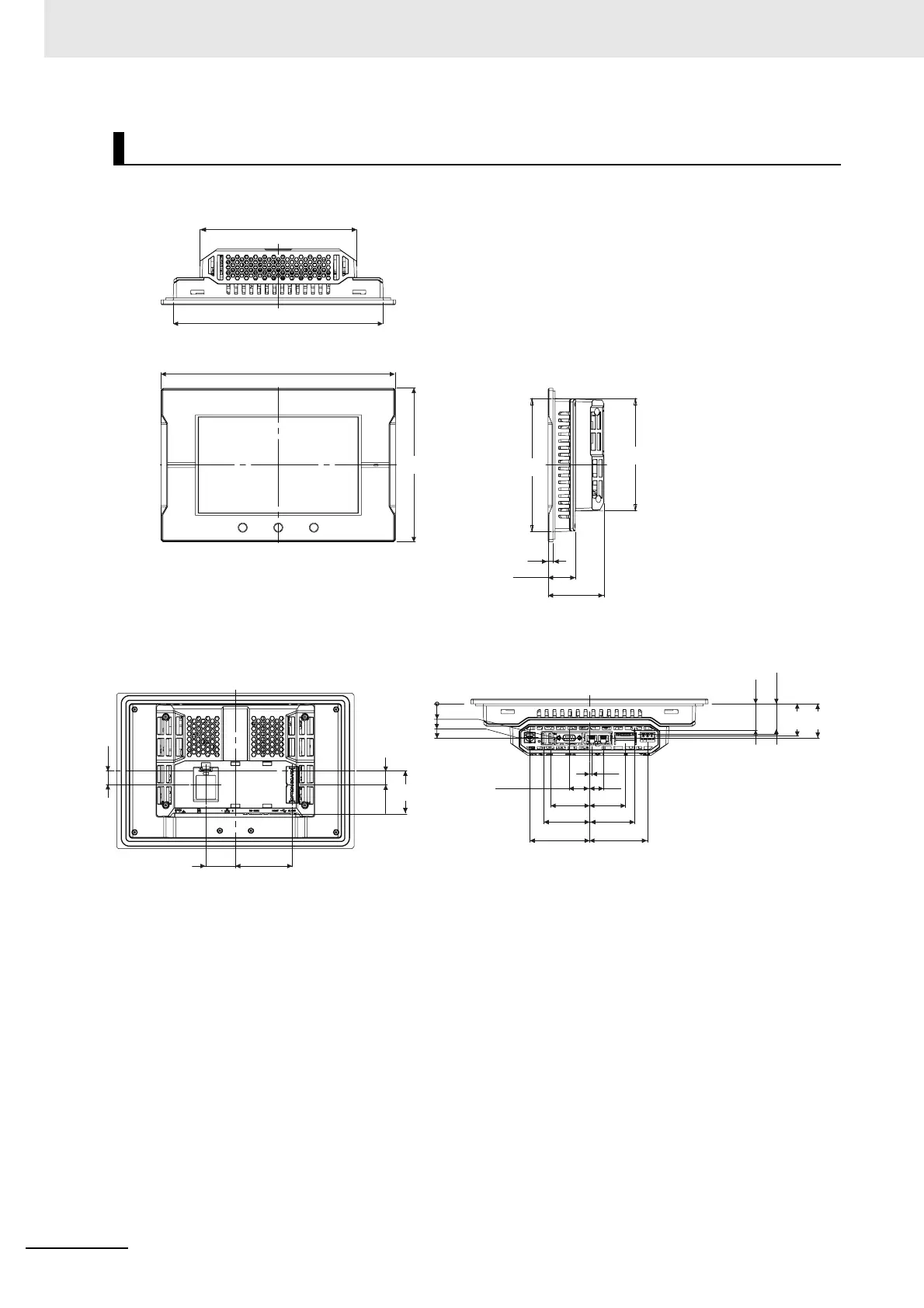

 Cable Connection Dimensions
NA5-9W
(Unit: mm)
194.2
260
290
6
69.1
33.5
139.1
190
165
(Unit: mm)
0
41.6
42
41.2
55
24.8
47.3
55.7
3
17
44
71 73
32.6
39.6 42.1
37
16.6
53.3
17.1
36 69.3
