2 - 9
2 Configuration Units
NA-series Programmable Terminal Hardware User’s Manual (V117)
2-2 SD Memory Cards
2
2-2-1 Models and Specifications
2-2 SD Memory Cards
This section describes how to use an SD Memory Card to transfer the project or save log data.
SD and SDHC memory cards are supported, but use the OMRON-specified SD Memory Cards. (Refer
to 1-3-3 Other Optional Products on page 1-6.) OMRON is not responsible for the operation, perfor-
mance, or write life of any other memory card.

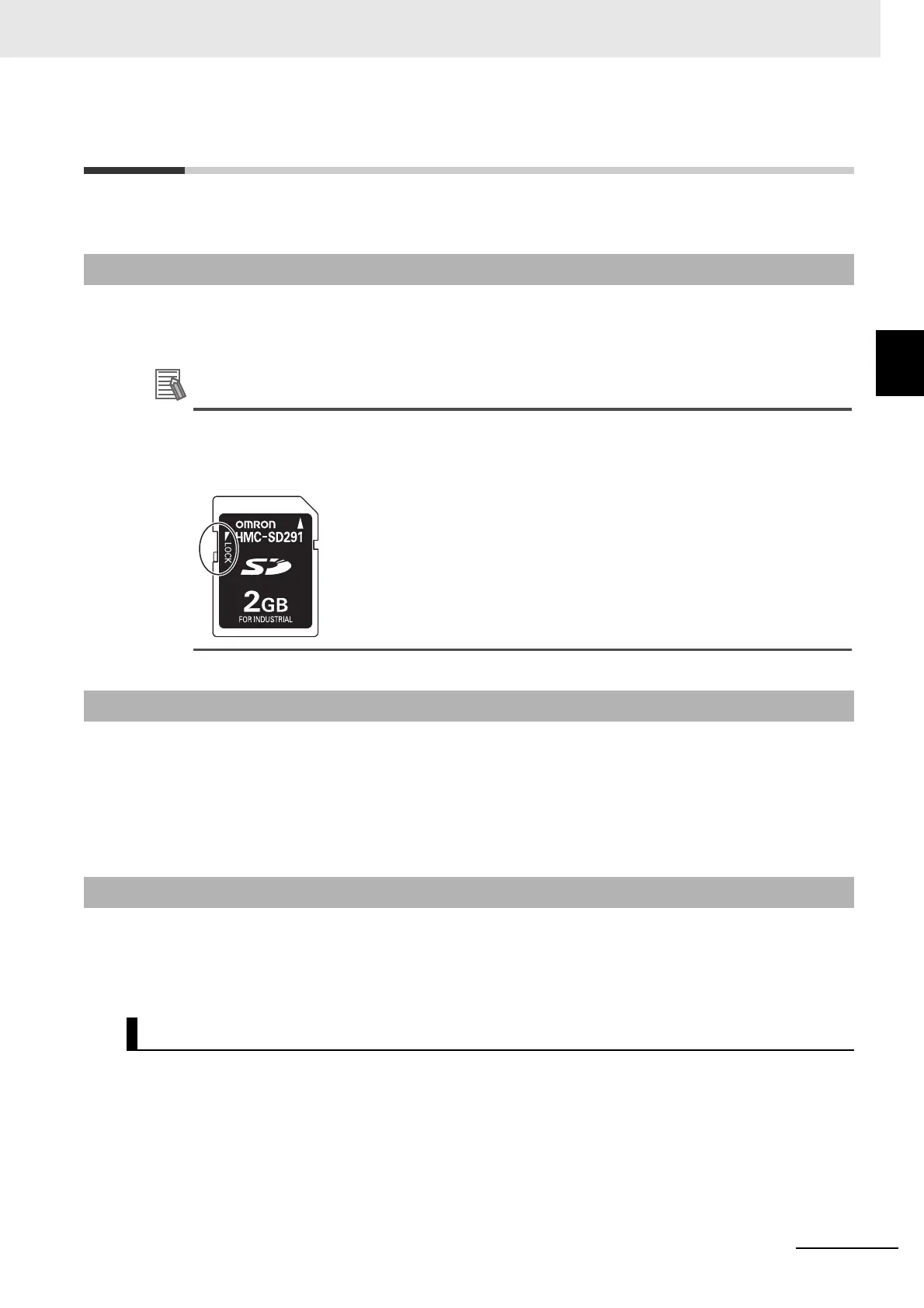

Write Protection Key
You will not be able to write to the SD Memory Card if the key is set to the LOCK position. (Use
this setting to prevent overwriting.)
You can use the SD Memory Card for the following applications.
• Automatically transferring the project data (which includes the screen data) created on the Sysmac
Studio to an HMI
• Updating the HMI system program
• Recording log data (data log and user alarms)
This section describes the methods to install and remove an SD Memory Card.
Refer to the NA-series Programmable Terminal Software User’s Manual (Cat. No. V118) for information
on executing actions and information on system-defined variables.
Observe the following precautions while an SD Memory Card is inserted.
• Before you remove the SD Memory Card, execute the EjectSDMemory action and check the
_HMI_CanEjectSDCard system-defined variable to make sure that the power supply to the SD Mem-
ory Card is stopped.
• Before you turn OFF the HMI power supply, execute the EjectSDMemory action and check the
_HMI_CanEjectSDCard system-defined variable to make sure that the power supply to the SD Mem-
ory Card is stopped.
2-2-1 Models and Specifications
2-2-2 Applications
2-2-3 Installing and Removing
Before Using an SD Memory Card
To Next Page
