1 Introduction to the NA-series Programmable Terminals
NA-series Programmable Terminal Hardware User’s Manual (V117)
1-3 Available Products
1
1-3-1 NA Units
1-3 Available Products

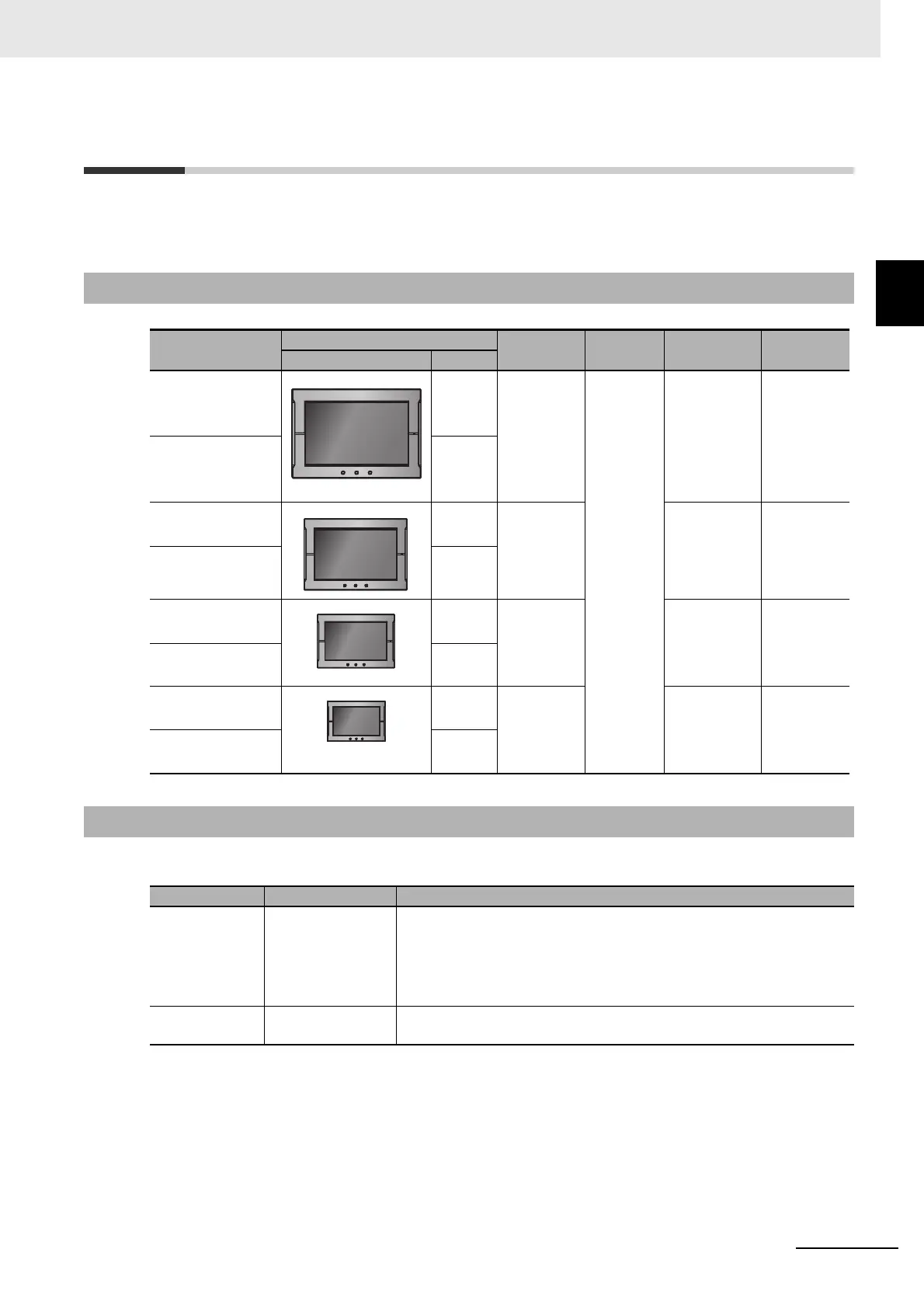

This section provides tables of the NA Units and optional products. Refer to 1-4 Specifications on page
1-7 for detailed specifications.
You use the Sysmac Studio to create applications for NA-series PTs and to debug them.
1-3-1 NA Units
Model
Case
Display
panel
Data
capacity
Power con-
sumption
Weight
Appearance Color
NA5-15W101S
NA5-15U101S
Silver 15.4 inches
256 MB
47 W max. 3.2 kg max.
NA5-15W101B
NA5-15U101B
Black
NA5-12W101S
NA5-12U101S
Silver 12.1 inches
45 W max. 2.3 kg max.
NA5-12W101B
NA5-12U101B
Black
NA5-9W001S
NA5-9U001S
Silver 9.0 inches
40 W max. 1.7 kg max.
NA5-9W001B
NA5-9U001B
Black
NA5-7W001S
NA5-7U001S
Silver 7.0 inches
35 W max. 1.3 kg max.
NA5-7W001B
NA5-7U001B
Black
1-3-2 Support Software
Name Model Specifications
Sysmac Studio
Standard Edition
SYSMAC-SE This software is used to create and debug applications for NA-series
PTs.
You can also use the Sysmac Studio to perform programming and simu-
lations for NJ/NX/NY-series Controllers because it provides an inte-
grated development environment for all Sysmac devices.
Sysmac Studio
HMI Edition
SYSMAC-HE001L You can use this edition only for the NA-series PTs.
