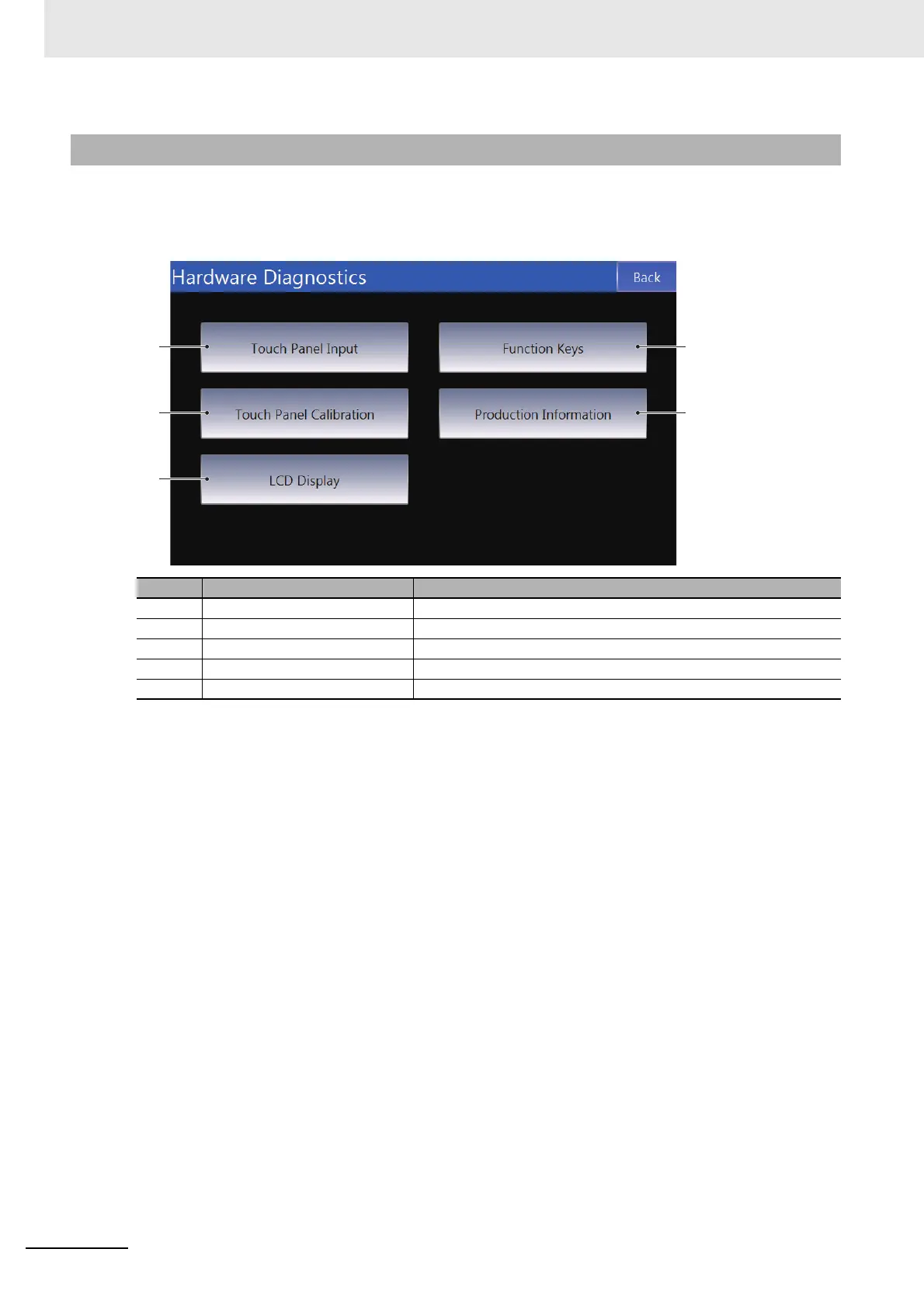

This screen is used to check the operation of the touch panel and to calibrate it.
You can tap any of the icons to access a function.
4-4-15 Hardware Diagnostics (Device System Menu)
No. Item Description
(a) Function Keys Checks the operation of the function keys.
(b) Production Information Displays product information.
(c) LCD Display Displays a color bar to use to check the LCD.
(d) Touch Panel Calibration Calibrates the touch panel.
(e) Touch Panel Input Checks touch panel inputs.
(a)
(b)
(e)
(c)
(d)
