Appendices
A - 8
NA-series Programmable Terminal Hardware User’s Manual (V117)
The High-pressure Waterproof Attachment (PWA) is required to conform to UL Type 4X standards. The
mounting panel thickness must be between 1.6 and 4.5 mm. To conform to UL Type 4X standards,
always use the NA5-W with a High-pressure Waterproof Attachment (PWA). If you do not
use a PWA, there is a risk of water entry, which may cause severe equipment damage.

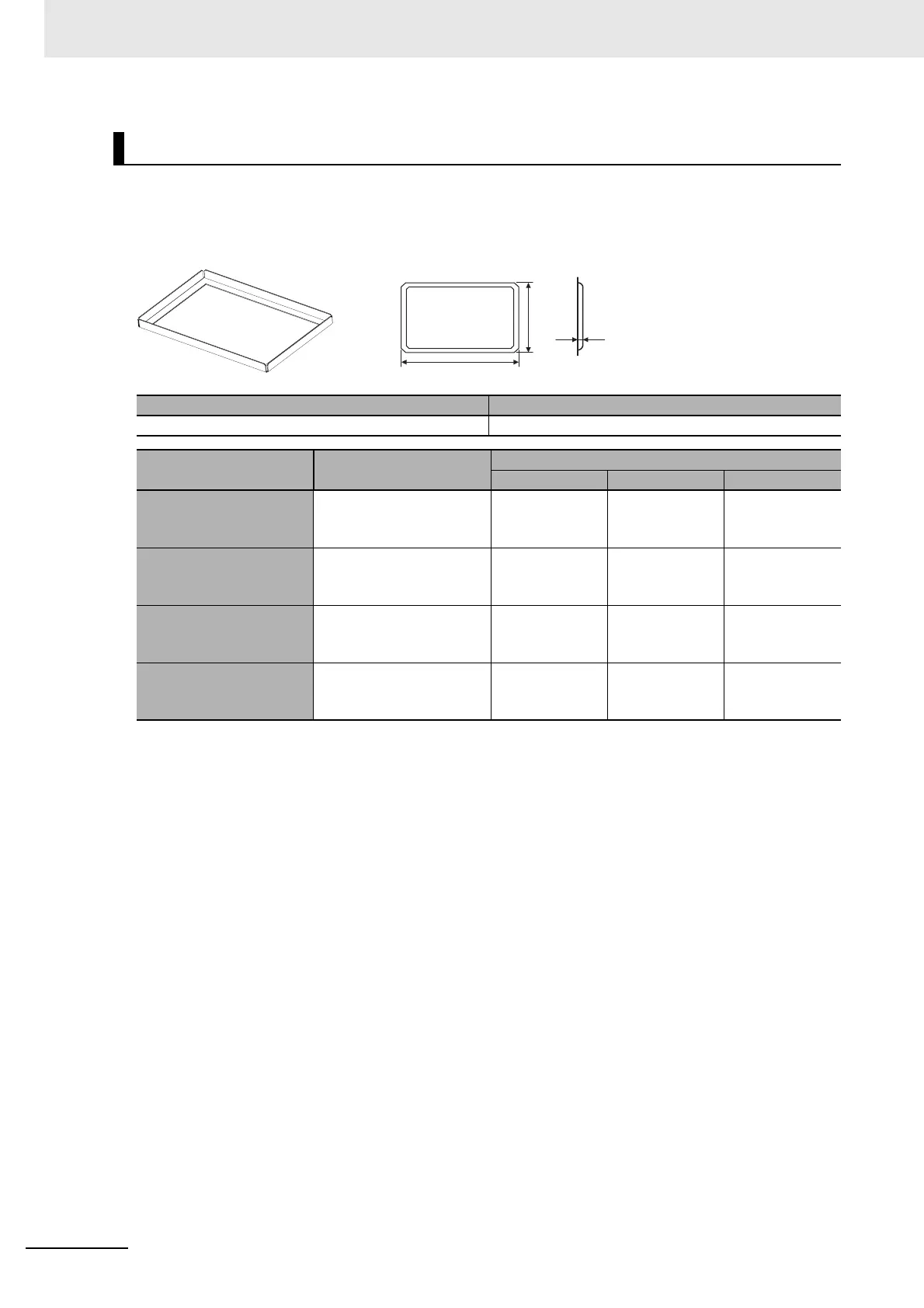

NA-WATW01 High-pressure Waterproof Attachment
Material Attachment method
Stainless steel (AISI 304) Mounting brackets
Model Specification
Dimensions (Unit: mm)
X Y Z
NA-15WATW01
High-pressure Waterproof
Attachment for
NA5-15W
430 306 19
NA-12WATW01
High-pressure Waterproof
Attachment for
NA5-12W
348 259 19
NA-9WATW01
High-pressure Waterproof
Attachment for
NA5-9W
298 203 19
NA-7WATW01
High-pressure Waterproof
Attachment for
NA5-7W
234 178 19
X
Y
Z
Dimensions
