2 Configuration Units
2 - 14
NA-series Programmable Terminal Hardware User’s Manual (V117)
You can use a direct connection or connect through an Ethernet switch by connecting to Ethernet port 2
on the NA Unit.
• Connect the Sysmac Studio to Ethernet port 2.
• The IP address and connection device do not need to be specified at the Sysmac Studio. Select the
Direct Connection with Sysmac Studio Check Box under HMI Settings − TCP/IP Settings and then
connect to Ethernet port 2.
• You can make the connection either with or without a switching hub.
• The Ethernet port on the NA Unit supports Auto-MDI, so you can use either a cross cable or a
straight cable if you connect directly to the computer.
Refer to the NA-series Programmable Terminal Device Connection User's Manual (Cat. No. V119) for
information on recommended Ethernet switches and connection details.

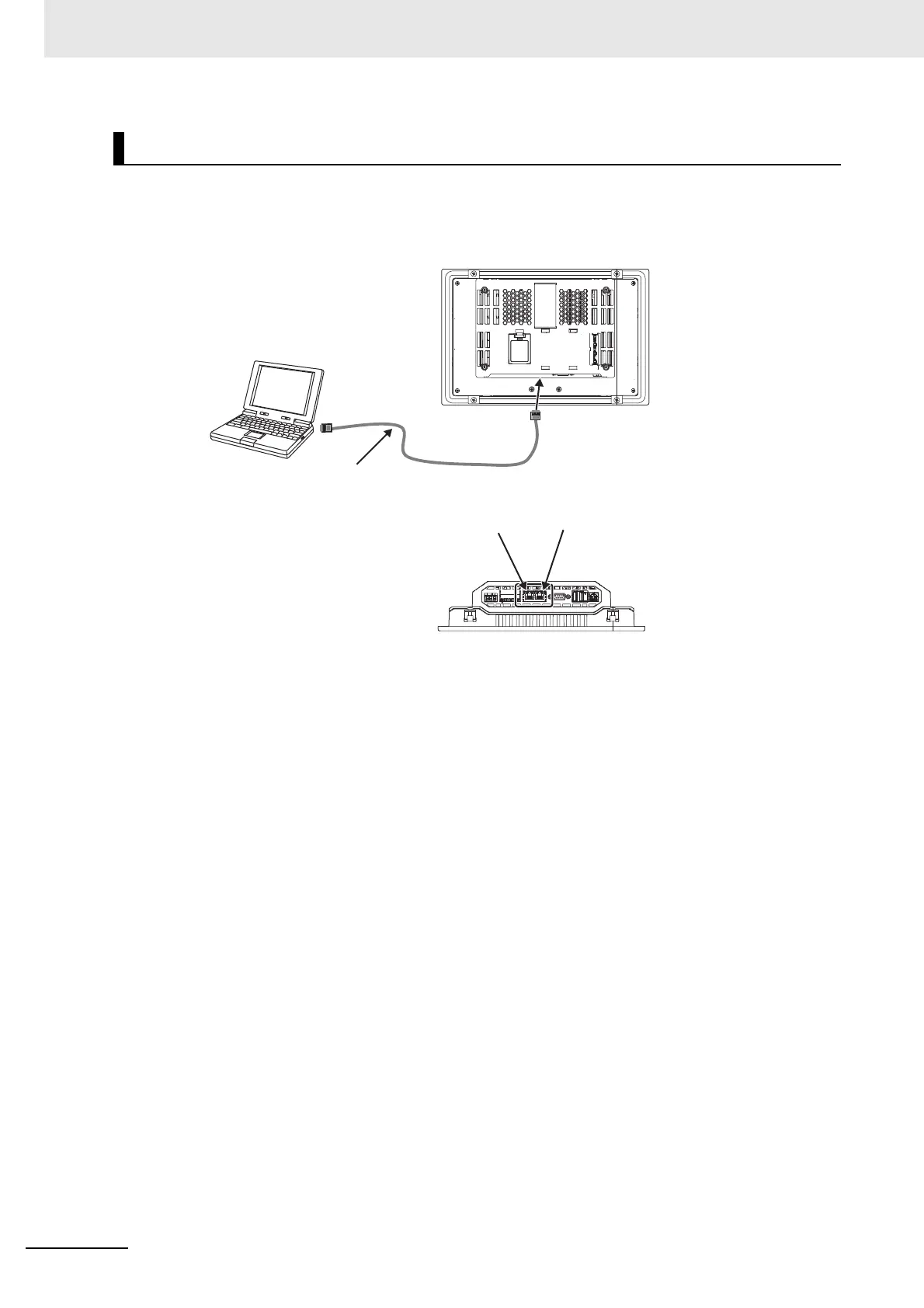

Connecting with Ethernet
Back Panel of
NA Unit
Ethernet cable (direct
connection or connection
through an Ethernet switch)
Connect to Ethernet port 2 (on the right).
Ethernet port 1
Ethernet port 2
Back Panel of
NA Unit
Sysmac Studio
To Next Page
