3 Installation and Wiring
NA-series Programmable Terminal Hardware User’s Manual (V117)
3-3 Installing NA Units
3
3-3-1 Installation in a Control Panel

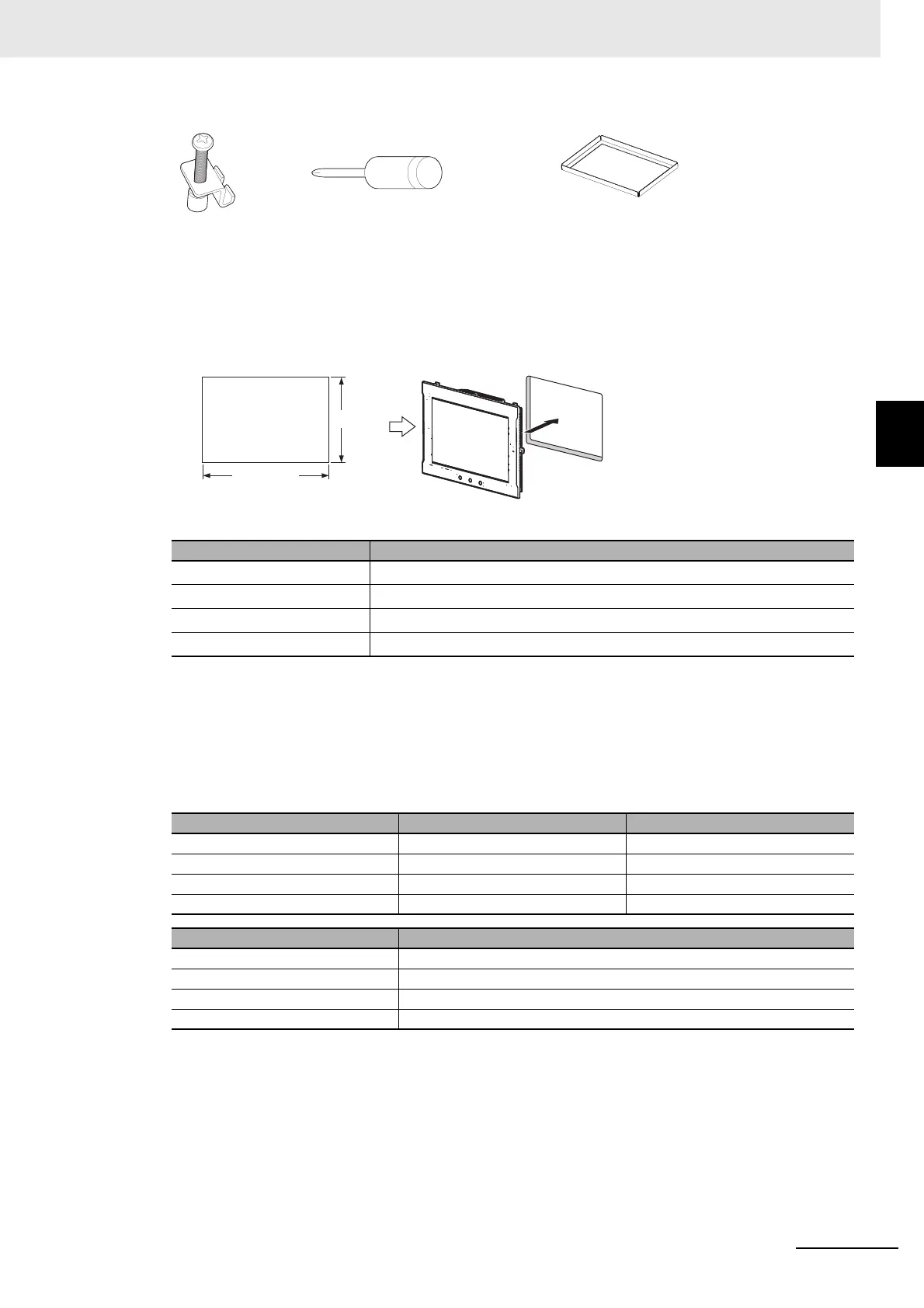

Use the following installation procedure.
1 Open a hole in which to embed the NA Unit with the following dimensions and insert the NA Unit
from the front side of the panel.
2 To conform to UL Type 4X standards, the panel thickness must be between 1.6 and 4.5 mm.
Always use the NA5-W with a High-pressure Waterproof Attachment (PWA) in
applications requiring UL Type 4X level protection. This is mandatory because there is a risk of
water entry, which may cause severe equipment damage.
Make sure that the internal dimensions at the back of the PWA allow mounting.
Slide the PWA over the NA Unit from the back until the flat side of the PWA is flat against the inside of
the panel, as shown in the following figure.
Model Dimensions
NA5-15W
392
+1/-0
× 268
+1/-0
mm (horizontal × vertical)
NA5-12W
310
+1/-0
× 221
+1/-0
mm (horizontal × vertical)
NA5-9W
261
+1/-0
× 166
+1/-0
mm (horizontal × vertical)
NA5-7W
197
+ 0.5/-0
× 141
+0.5/-0
mm (horizontal × vertical)
Model Dimensions without PWA Dimensions with PWA
NA5-15W 420 × 291 mm 430 × 306 mm
NA5-12W 340 × 244 mm 348 × 259 mm
NA5-9W 290 × 190 mm 298 × 203 mm
NA5-7W 236 × 165 mm 236 × 178 mm
Model PWA model number
NA5-15W NA-15WATW01
NA5-12W NA-12WATW01
NA5-9W NA-9WATW01
NA5-7W NA-7WATW01
Panel Mounting Bracket Phillips screwdriver
High-pressure Waterproof Attachment (PWA)
Vertical
Horizontal
Recommended panel thickness: 1.6 to 6.0 mm
