Bracket Mounting Locations for Different Units

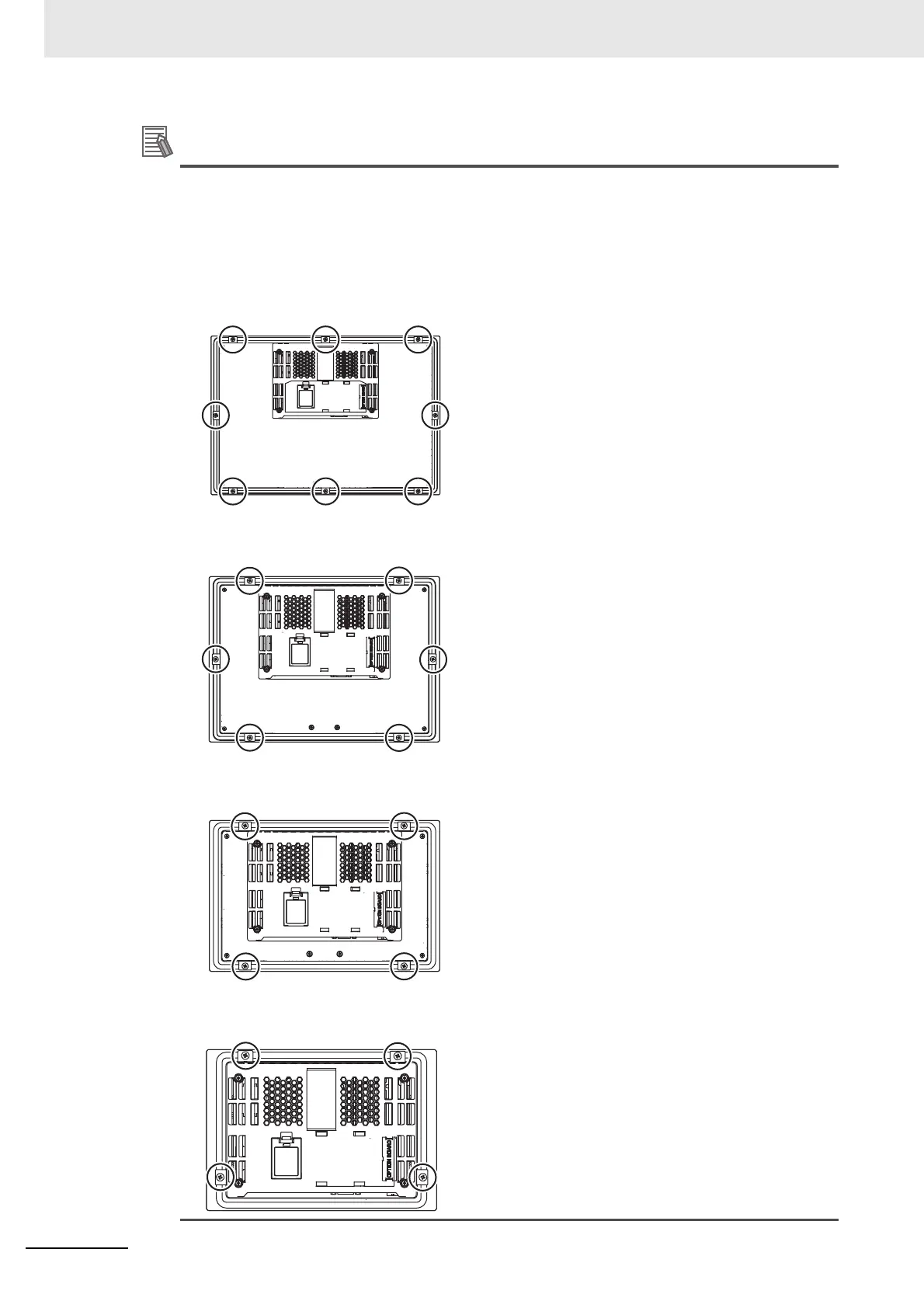

When you mount an NA Unit, secure it with the mounting brackets as shown in the following fig-
ures.
• NA5-15W
Secure the NA Unit with mounting brackets in the eight locations shown below.
• NA5-12W
Secure the NA Unit with mounting brackets in the six locations shown below.
•NA5-9W
Secure the NA Unit with mounting brackets in the four locations shown below.
•NA5-7W
Secure the NA Unit with mounting brackets in the four locations shown below.
