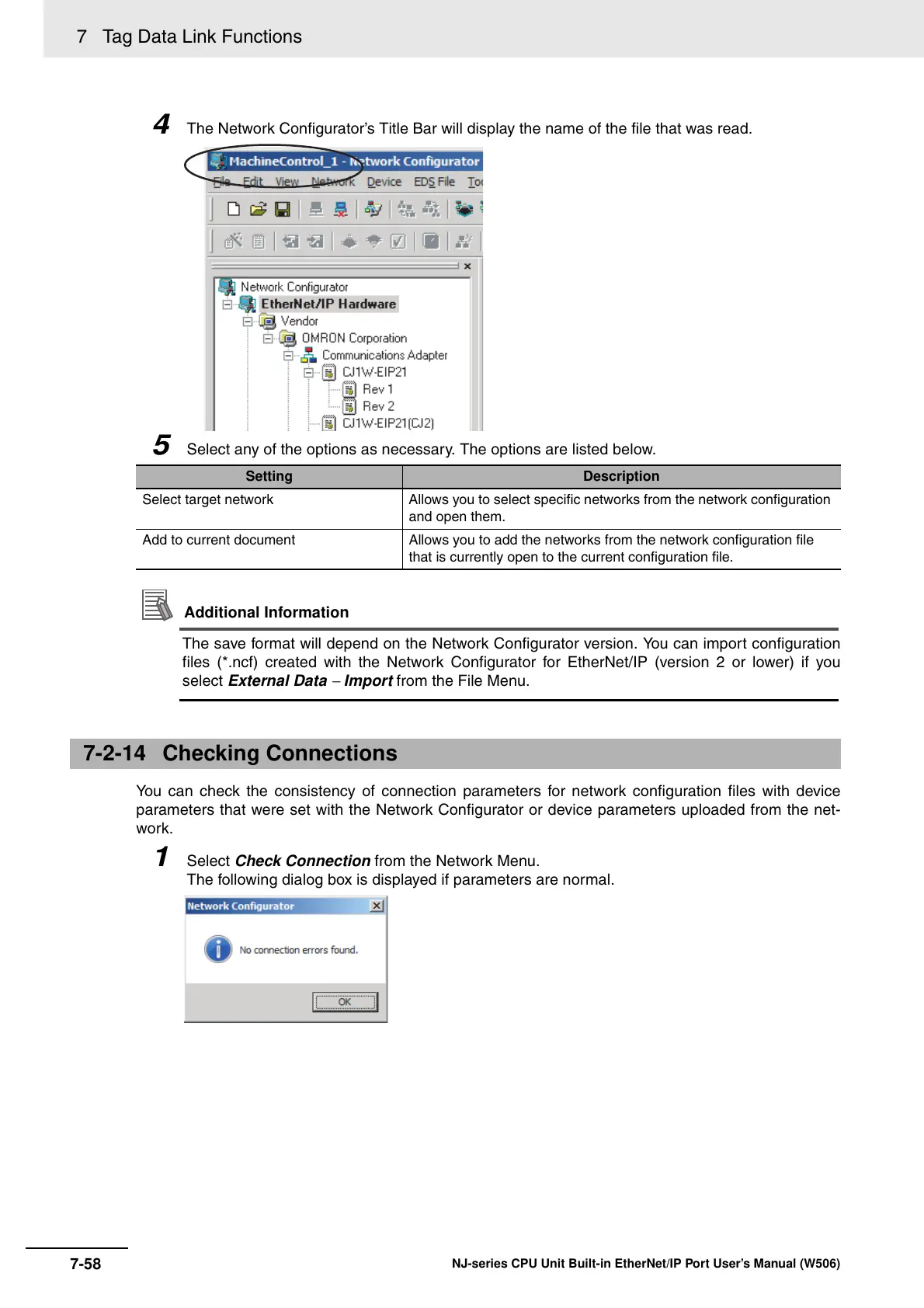

7 Tag Data Link Functions
7-58
NJ-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
4
The Network Configurator’s Title Bar will display the name of the file that was read.
5
Select any of the options as necessary. The options are listed below.
Additional Information
The save format will depend on the Network Configurator version. You can import configuration
files (*.ncf) created with the Network Configurator for EtherNet/IP (version 2 or lower) if you
select
External Data
−
Import from the File Menu.
You can check the consistency of connection parameters for network configuration files with device
parameters that were set with the Network Configurator or device parameters uploaded from the net-
work.
1
Select Check Connection from the Network Menu.
The following dialog box is displayed if parameters are normal.
Setting Description
Select target network Allows you to select specific networks from the network configuration
and open them.
Add to current document Allows you to add the networks from the network configuration file
that is currently open to the current configuration file.
7-2-14 Checking Connections
