Examples of Actual Applications of Direct Access
Section 10-1

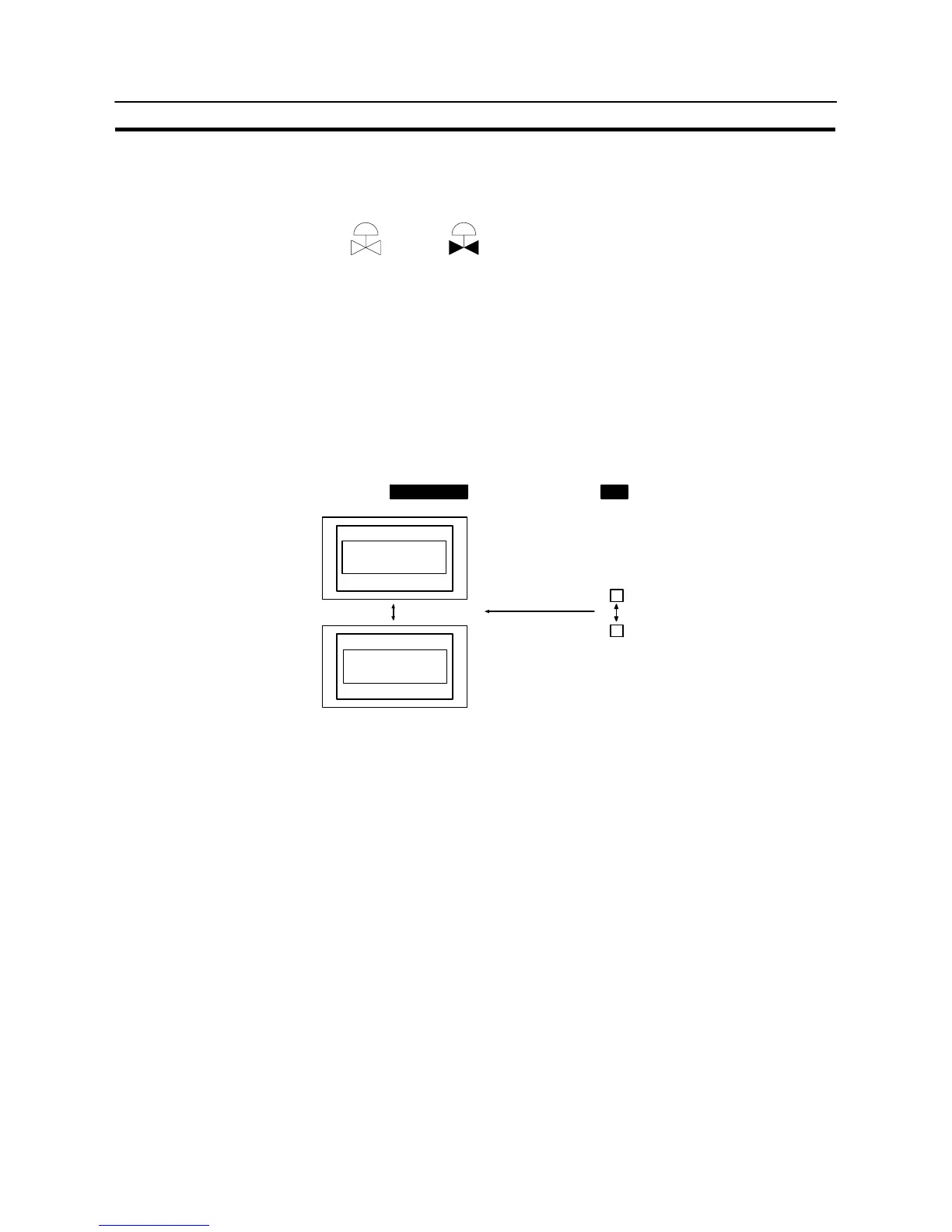

(1) Create figures depicting the valve when open (“A” in the figure below) and the
valve when closed (“B” in the figure below), either by using library data (fixed
display graphic) or image data (comprised of dots).
AB
(2) Register image/library data set as indicated below for the screen.
- “OFF State”, “Code”:
Check mark set, code of the figure depicting the closed valve created in (1)
- “ON State”, “Code”:
Check mark set, code of the figure depicting the open valve created in (1)
- PC Address:
Number of the bit used to change between the figures
Example: When the displayed character string is changed in accordance with the status of
one PC bit
0
ON/OFF
OFF
ON
Bit
OFF state
ON state
1
TRANSPORTING
TRANSPORT
OVER
PCNT31/NT31C
(1) Create library data with fixed display text reading “TRANSPORTING”, and
another library data with fixed display text reading “TRANSPORT OVER”.
(2) Register an image/library lamp set as indicated below for the screen.
- “OFF State”, “Code”:
Check mark set, code of the library data reading “TRANSPORTING”
created in (1)
- “ON State”, “Code”:
Check mark set, code of the library data reading “TRANSPORT OVER”
created in (1)
- PC Address:
Number of the bit used to change between the text items
