z Eight-point Input Units
All Analog Input Units
This section describes how to configure settings with the Sysmac Studio.
When you are using Support Software other than the Sysmac Studio, in the Edit Unit Operation Set-
tings Tab Page, set the parameters described in the procedure and transfer the settings to the target
NX Unit.
For details on how to display the Edit Unit Operation Settings Tab Page and to transfer settings to an
NX Unit with Support Software other than the Sysmac Studio, refer to the operation manual for the Sup-
port Software that you are using.

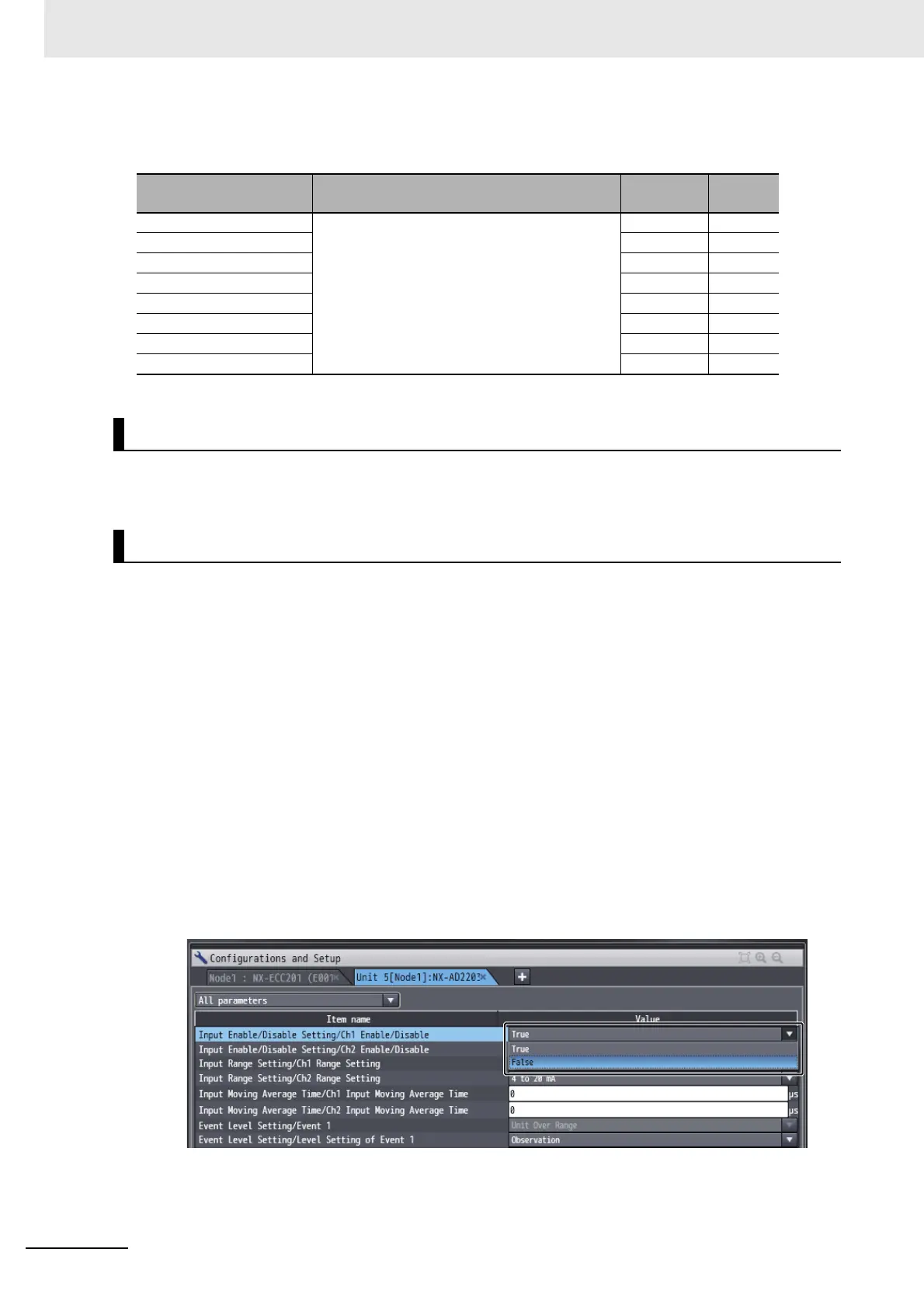

1 Display the Edit Unit Operation Settings Tab Page.
For the display methods, refer to A-7 Displaying the Edit Unit Operation Settings Tab Page on
page A-61
.
2 Select True (Enable) or False (Disable) from the list of Input Enable/Disable Setting for which
the channel you want to set.
Setting name Description
Default
value
Unit
Ch1 Enable/Disable Set to enable or disable the channel.
FALSE: Disable
TRUE: Enable
TRUE ---
Ch2 Enable/Disable TRUE ---
Ch3 Enable/Disable TRUE ---
Ch4 Enable/Disable TRUE ---
Ch5 Enable/Disable TRUE ---
Ch6 Enable/Disable TRUE ---
Ch7 Enable/Disable TRUE ---
Ch8 Enable/Disable TRUE ---
Target NX Units
Setting Method
To Next Page
