7-5 Functions
7
7-5-2 Selecting Channel To Use
This section describes how to configure settings with the Sysmac Studio.
When you are using Support Software other than the Sysmac Studio, in the Edit Unit Operation Set-
tings Tab Page, set the parameters described in the procedure and transfer the settings to the target
NX Unit.
For details on how to display the Edit Unit Operation Settings Tab Page and to transfer settings to an
NX Unit with Support Software other than the Sysmac Studio, refer to the operation manual for the Sup-
port Software that you are using.
1 Display the Edit Unit Operation Settings Tab Page.
For the display methods, refer to A-7 Displaying the Edit Unit Operation Settings Tab Page on
page A-61
.

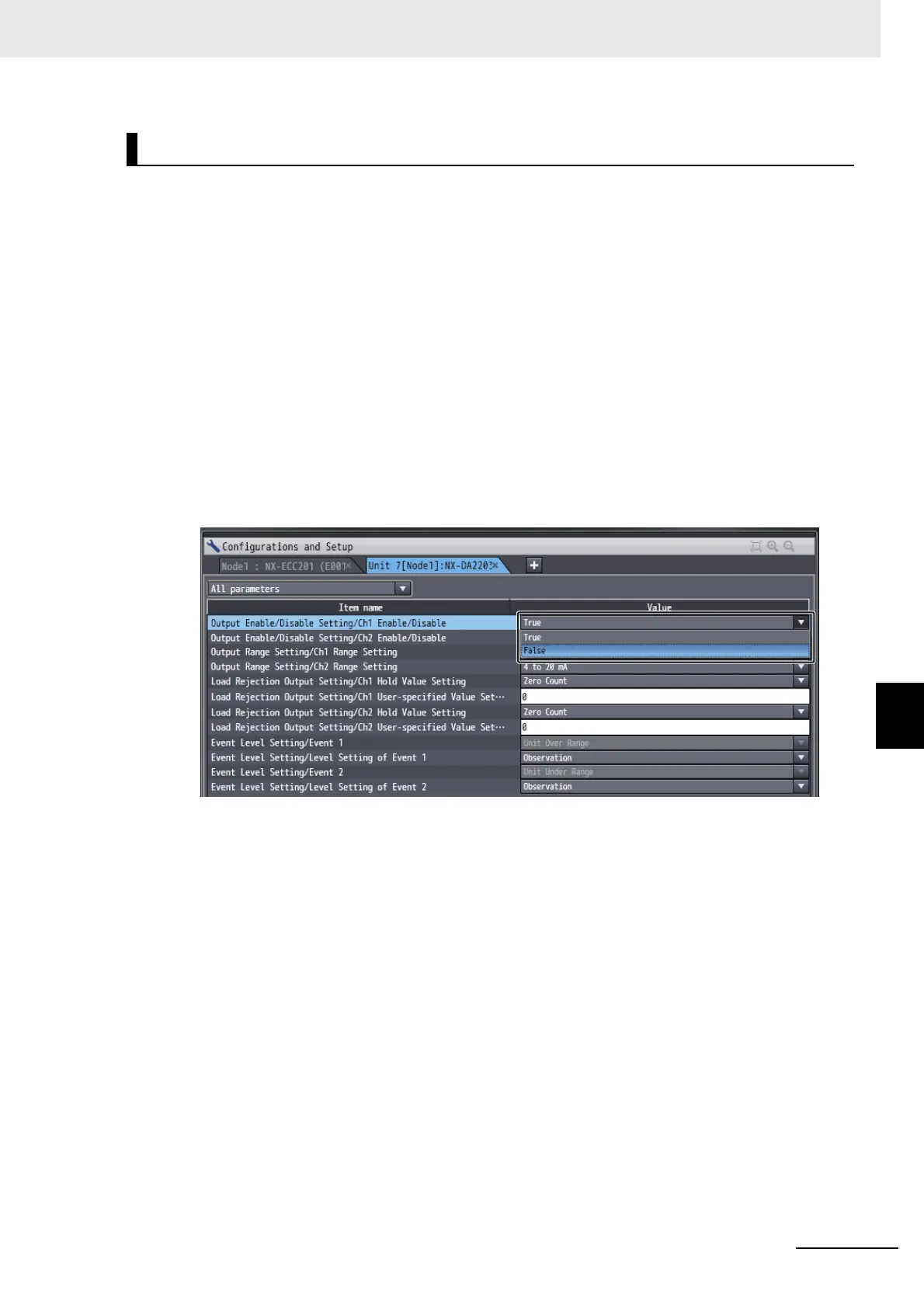

2 Select True (Enable) or False (Disable) from the list of Output Enable/Disable Setting for which
the channel you want to set.
Setting Method
