7 - 21
7 Analog Output Units
NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)
7-5 Functions
7
7-5-5 User Calibration
z Correctable Range
The correctable range is -5 to +5% of the output full scale.
The correctable range for each output range is as follows.
All Analog Output Units
This section describes how to configure settings with the Sysmac Studio.
You can perform the user calibration even if you are using Support Software other than the Sysmac
Studio.
For details on how to configure the user calibration settings with Support Software other than Sysmac
Studio, refer to the operation manual for the Support Software that you are using.

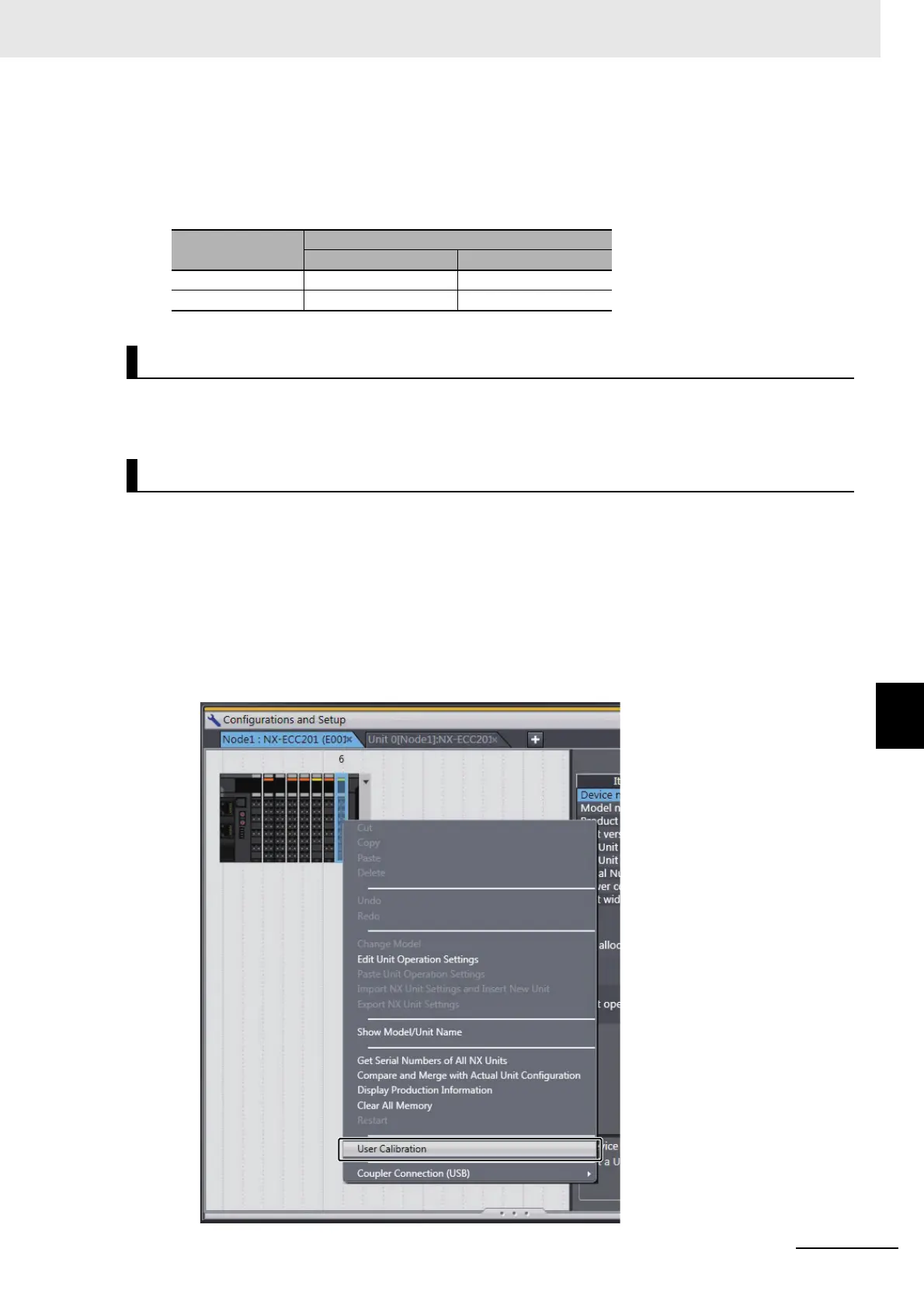

1 Right-click the NX Unit, then select User Calibration from the menu.
Output range
Correctable range
0% 100%
-10 to +10 V -11 to -9.0 V 9.0 to 11 V
4 to 20 mA 3.2 to 4.8 mA 19.2 to 20.8 mA
Target NX Units
Setting Method
To Next Page
