7 - 27

7 Analog Output Units

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

7-5 Functions

7-5-5 User Calibration

z Reset the Calibration Value to the Default

You can reset the calibration value to the default.

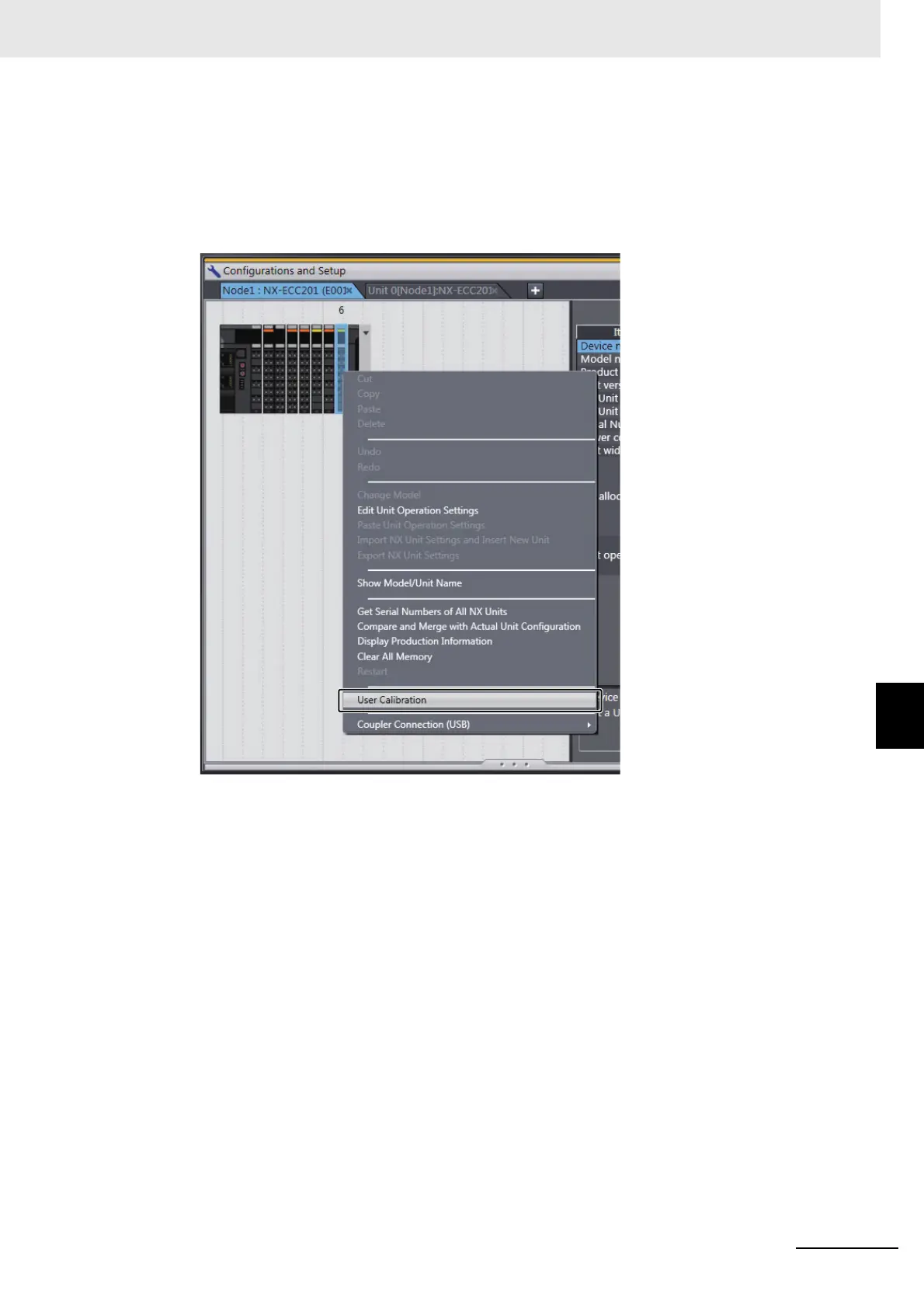

1 Right-click the NX Unit, then select User Calibration from the menu.
