NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

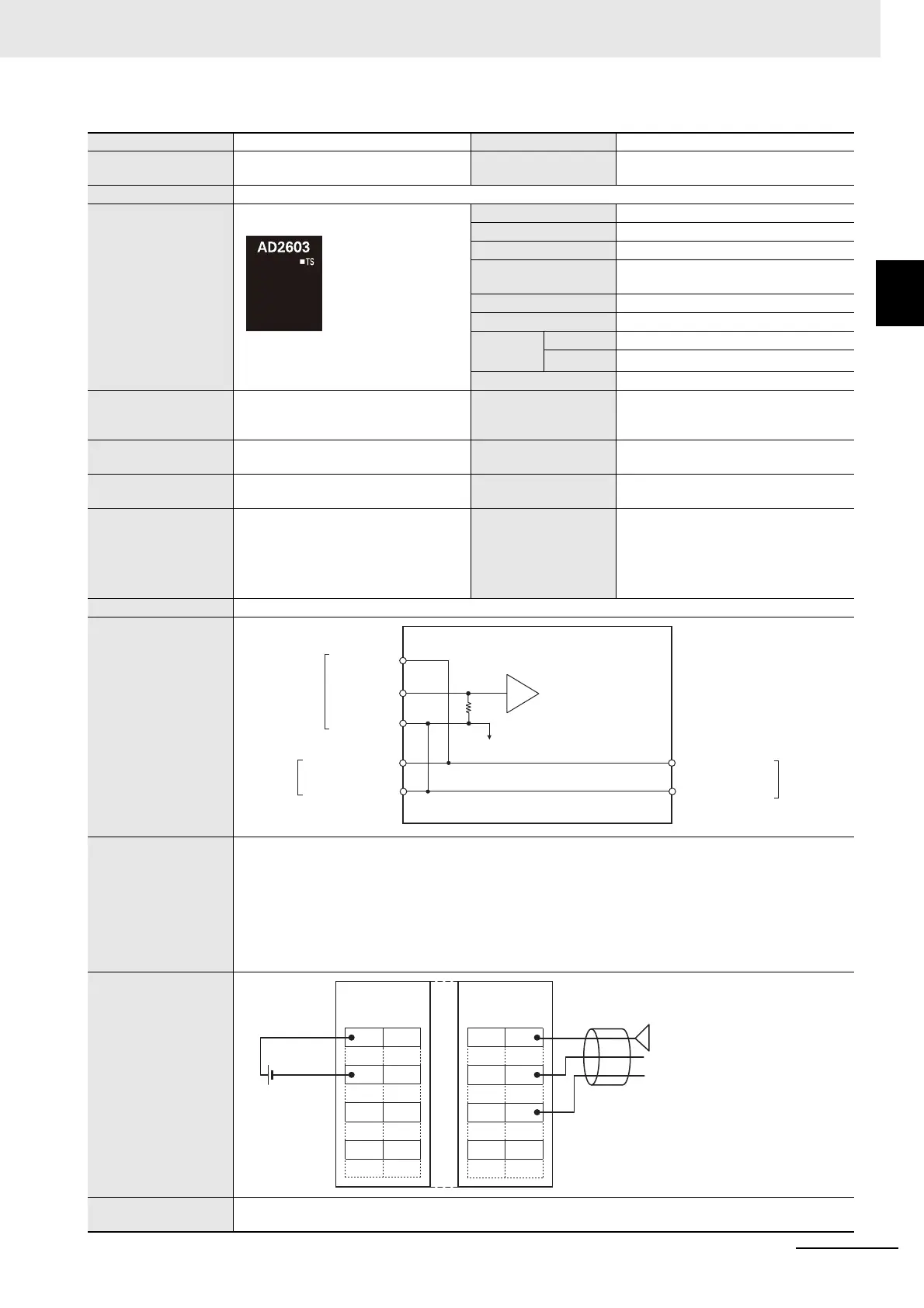

A-1 Data Sheet
A
A-1-2 Analog Input Units
Unit name Analog Input Unit (voltage input type) Model NX-AD2603
Number of points 2 points External connection
terminals
Screwless clamping terminal block (8 ter-
minals)
I/O refreshing method Free-Run refreshing
Indicators TS indicator Input method Single-ended input
Input range -10 to +10 V
Input conversion range -5 to 105% (full scale)
Absolute maximum
rating
±15 V
Input impedance 1 MΩ min.
Resolution 1/8000 (full scale)
Overall
accuracy
25 ° C ±0.2% (full scale)
0 to 55 ° C
±0.4% (full scale)
Conversion time 250 μs/point
Dimensions 12 (W) x 100 (H) x 71 (D) Isolation method Between the input and the NX bus: Power
= Transformer, Signal = Digital isolator (no
isolation between inputs)
Insulation resistance 20 MΩ min. between isolated circuits (at
100 VDC)
Dielectric strength 510 VAC between isolated circuits for 1
minute at a leakage current of 5 mA max.
I/O power supply
method
Supply from the NX bus Current capacity of I/O
power supply terminal
IOV: 0.1 A/terminal max., IOG: 0.1 A/termi-
nal max.
NX Unit power con-
sumption
• Connected to a CPU Unit
1.35 W max.
• Connected to a Communications Cou-
pler Unit
1.05 W max.
Current consumption
from I/O power supply
No consumption
Weight 70 g max.
Circuit layout
Installation orienta-
tion and restrictions
Installation orientation:
• Connected to a CPU Unit
Possible in upright installation.
• Connected to a Communications Coupler Unit
Possible in 6 orientations.
Restrictions: No restrictions
Terminal connection
diagram
Input disconnection
detection
Not supported.
AG: Analog circuit internal GND
AMP
IOV
Input1+ to 2+
IOG
AG
Terminal block
1 MΩ
NX bus
connector
(left)
I/O power supply +
I/O power supply −
I/O power supply +
I/O power supply −
NX bus
connector
(right)
IOV
IOG
IOV
IOG
IOV
IOG
IOV
IOG
A1 B1
A8 B8
24 VDC
A1 B1
A8 B8
IOV
IOG
NC
IOV
IOG
NC
Input +
24 V (Sensor power supply +)
0 V (Sensor power supply − / Input −)
Three-wire sensor
Additional I/O
Power Supply Unit
Input1+
Input2+
Voltage Input Unit
NX-AD2603
The NC terminal is not connected to the internal circuit.
