Omron NX1P2 series User Manual

5 Installation and Wiring
5 - 64
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

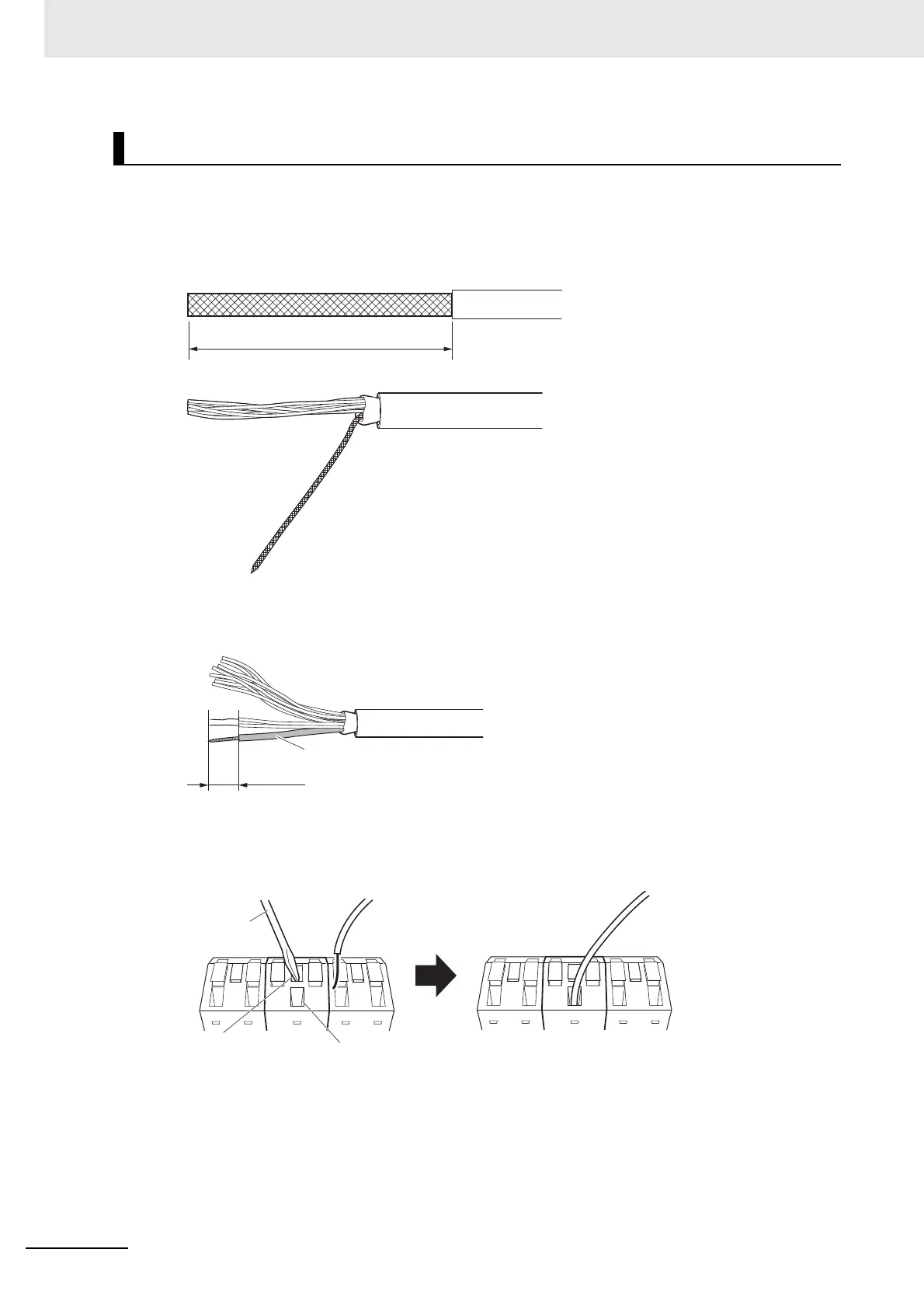

1 Cut the cable to the required length.
2 Remove the specified length of the sheath.
Be careful not to scratch the braided shield.
3 Unbraid and put up the braided shield.
4 Remove the insulation from each core wire using a stripper.
Cover the braided shield with a heat-shrinking tube (3.0 dia.), and heat the tube to shrink it in
place.
5 Using a thin flat-blade screwdriver, press in the release button of the terminal block. Insert the
cable core wire into the terminal hole.
Confirm that the core wire exposed part is fully inserted into the terminal hole, and then release
the release button.
To remove the wire, press in the release button with a thin flat-blade screwdriver, and pull out
the wire while it is unlocked.
A thin flat-blade screwdriver such as the one shown below is required to connect or remove
cables.
Wiring to Terminal Block of the NX1W-CIF01
40 mm (RS-232C)
Heat-shrinking tube
8 to 9 mm
Release button Terminal hole
Flat-blade
screwdriver

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
