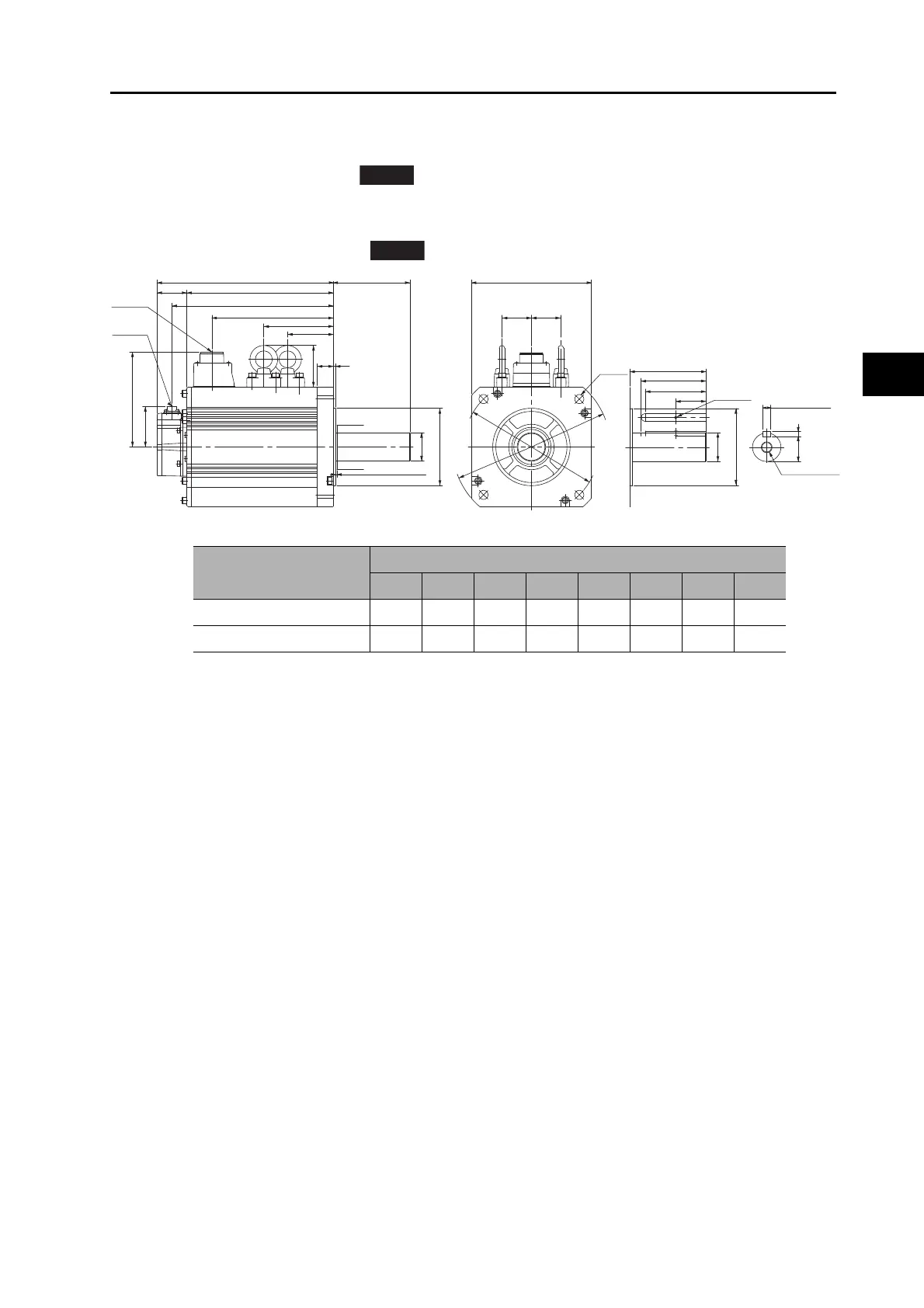

2-4 External and Mounting Dimensions
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
2
Standard Models and External Dimensions
4.5 kW (without Brake)
R88M-K4K510T (-S2)
4.5 kW (with Brake)
R88M-K4K510T-B (S2)
Note. The standard models have a straight shaft. Models with a key and tap are indicated with S2 at the
end of the model number.
Models with an oil seal are indicated with O at the end of the model number. The motor dimensions
do not change.
ABS
ABS
4-φ13.5
43.5
43.5
φ
233
φ200
(Key groove P9)
φ
114.3h7
φ
Sh6
45
37
0
-0.2
90
12h9
8
LR
96
Motor and
brake
connector
L1
61.5
L2
60
KB2
LM
24
LR
φSh6
φ114.3h7
3.2
KB1
140
LL
44
M4, through
Encoder
connector
176 × 176
(Shaft end specifications with key and tap)
M16
(depth 32 min.)
2 min.
Boss insertion positon
Model
Dimensions (mm)
LL LR LM S KB1 KB2 L1 L2
R88M-K4K510T@ 266 113 222 42 185 244 98 98
R88M-K4K510T-B@ 291 113 247 42 185 269 98 133
