3-107
3-4 Cable and Connector Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications
Connector Specifications
Control I/O Connector (R88A-CNU11C)
This is the connector to be connected to the Servo Drive's control I/O connector (CN1).
Use this connector when preparing a control cable by yourself.
For information on wiring method, refer to Control Cable Specifications (P.3-112).
This connector is soldered.

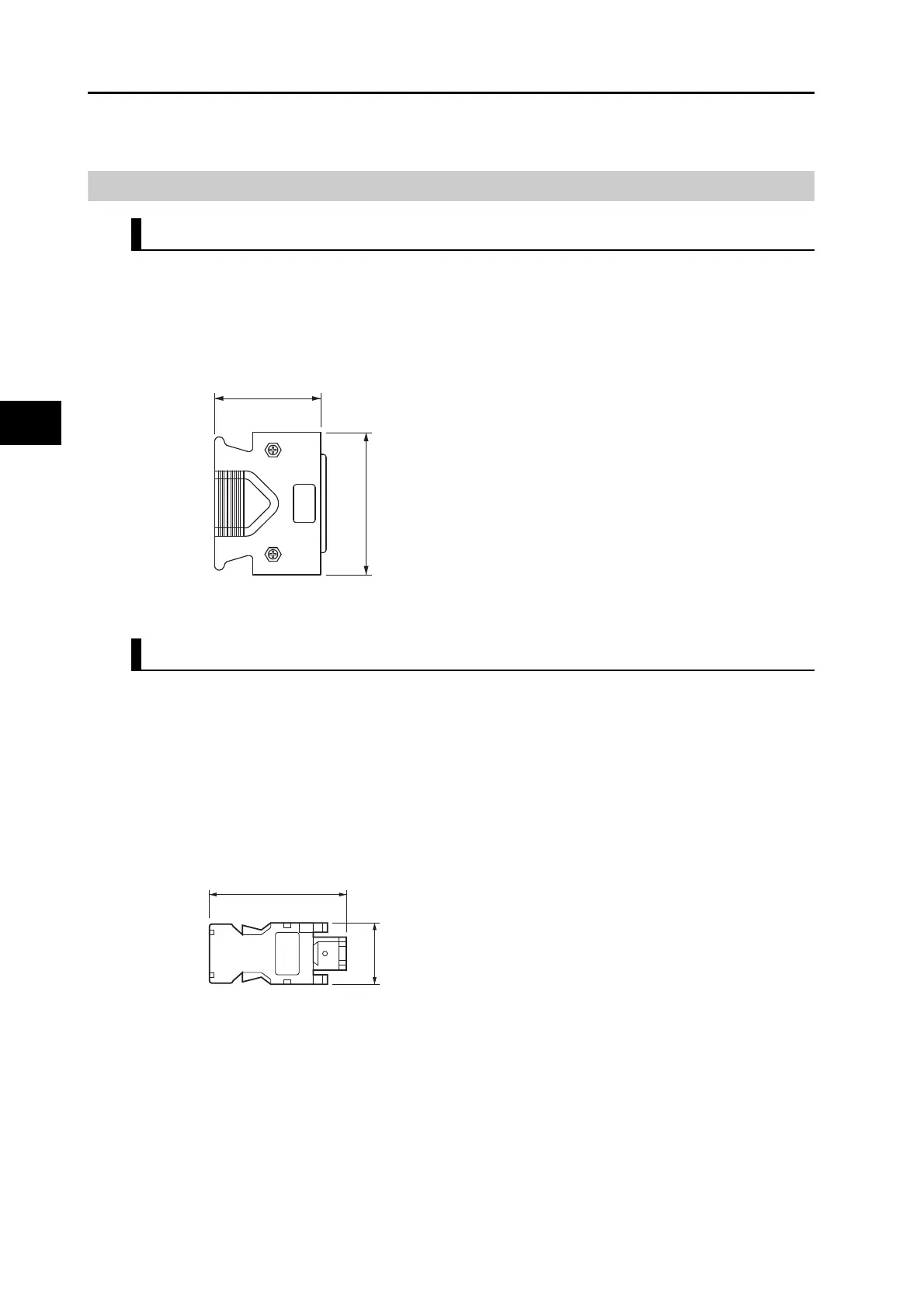

Dimensions
Encoder Connectors
These connectors are used for encoder cables.
Use them when preparing an encoder cable by yourself.
For information on wiring method, refer to Encoder Cable Specifications (P.3-97).
Dimensions
R88A-CNW01R (Drive's CN2 side)
This connector is soldered.
52.4
39
t = 18
Connector plug model
10150-3000PE (Sumitomo 3M)
Connector case model
10350-52A0-008 (Sumitomo 3M)
t = 12
43.5
18.8
Connector plug model
55100-0670 (Molex Japan)
