3-106
3-4 Cable and Connector Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications

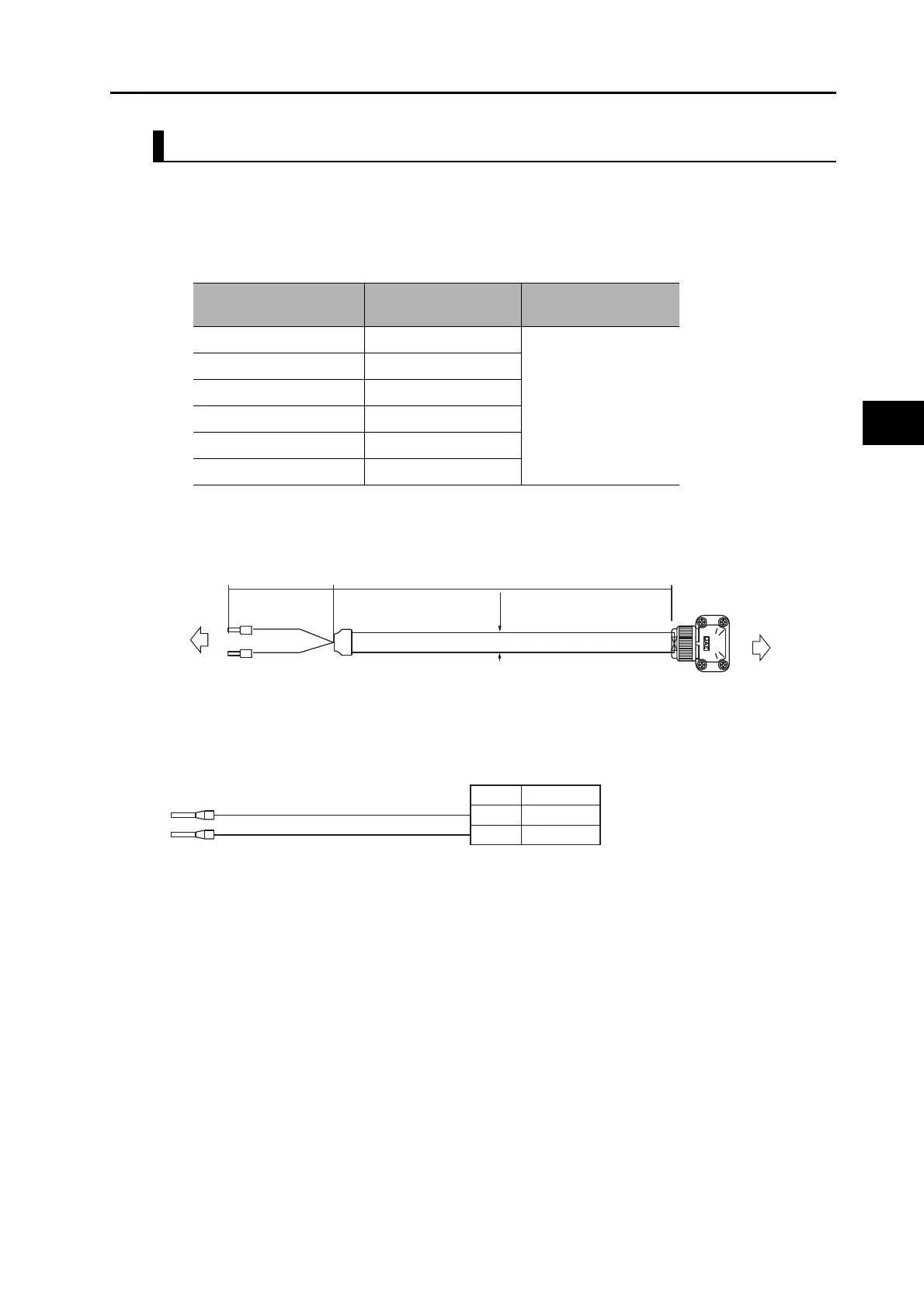

Brake Cables (European Flexible Cables)
R88A-CAKA@BR-E
Cable types
100 and 200 V:
(For 3,000-r/min Servomotors of 50 to 750 W)
Connection configuration and external dimensions
Wiring
Model Length (L)
Outer diameter of
sheath
R88A-CAKA001-5BR-E 1.5 m
6.0 dia.
R88A-CAKA003BR-E 3 m
R88A-CAKA005BR-E 5 m
R88A-CAKA010BR-E 10 m
R88A-CAKA015BR-E 15 m
R88A-CAKA020BR-E 20 m
(φ6.0)
(50)
L
Servo Drive side
R88D-K@
Servomotor side
R88M-K@
Number
1
2
Brake
Brake
Symbol
Servo Drive side
Black-1
Black-2
Servomotor side
Cable
0.5 mm
2
× 2C
or
AWG20 × 2C
[Servomotor side connector]
Connector model
JN4FT02SJ1-R (Japan Aviation Electronics)
Contact model
ST-TMH-S-C1B (Japan Aviation Electronics)
0.5
0.5
