Omron OMNUC G5 R88D-KT50F User Manual

3-108
3-4 Cable and Connector Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications
Angle clamp model JN6FR07SM1
(Japan Aviation Electronics)
Connector pin model LY10-C1-A1-10000
(Japan Aviation Electronics)
Straight plug model JN2DS10SL2-R
(Japan Aviation Electronics)
Contact model JN1-22-22S-PKG100
(Japan Aviation Electronics)

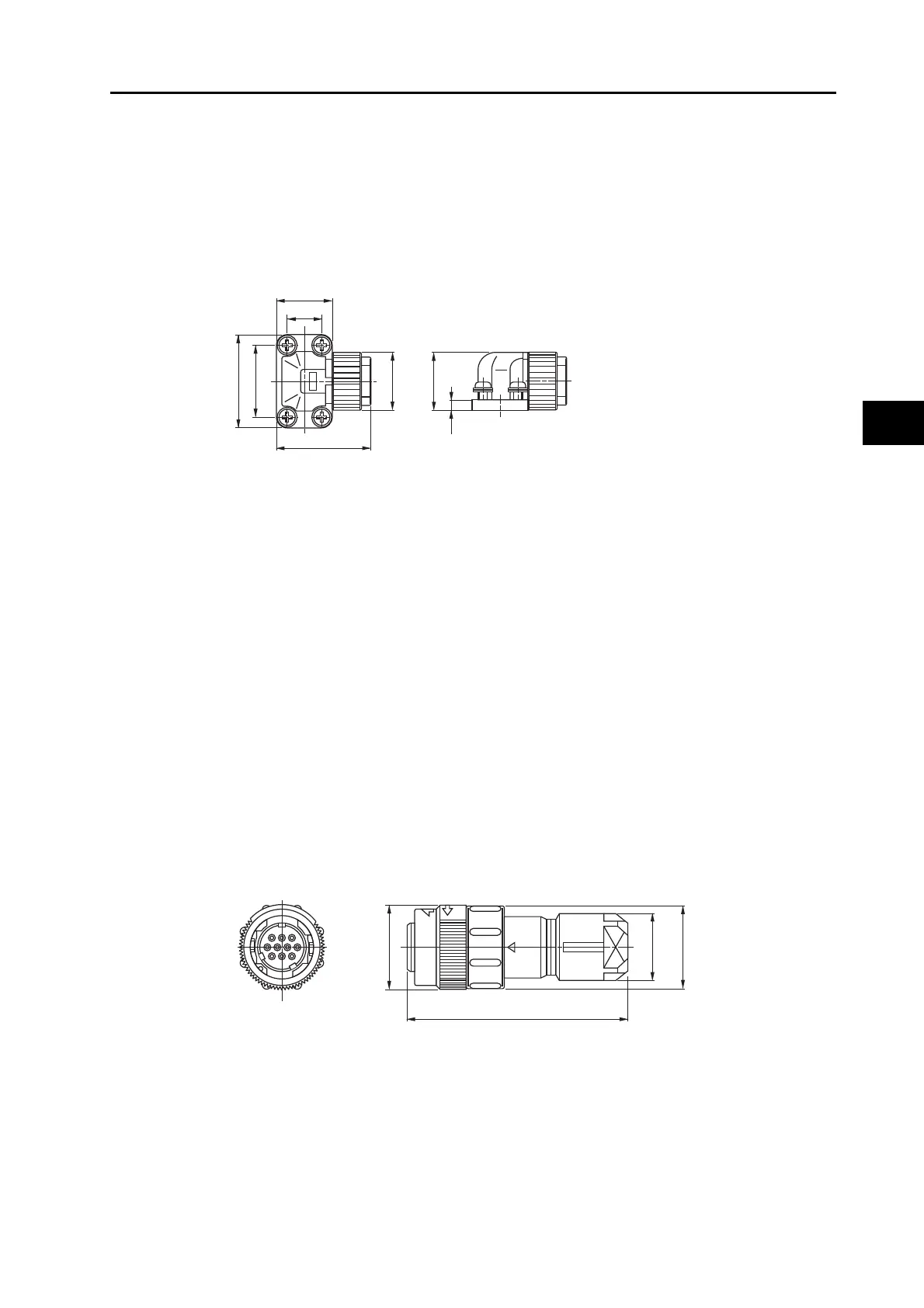

R88A-CNK02R (Servomotor side)
This connector is pressure welded.
For the tools that are required for production,
contact the manufacturer directly.
The cable direction from the angle plug can
be reversed.
Adaptive motors
100-V, 3,000-r/min Servomotors of 50 to 400
W
200-V, 3,000-r/min Servomotors of 50 to 750
W
12.5
21.5
φ13
21
16.6
8
13
2.2
R88A-CNK04R (Servomotor side)
This connector is pressure welded.
For the tools that are required for production,
contact the manufacturer directly.
Adaptive motors
200-V, 3,000-r/min Servomotors of all
capacities
200-V, 2,000-r/min Servomotors of all
capacities
200-V, 1,500-r/min Servomotors of all
capacities
200-V, 1,000-r/min Servomotors of all
capacities
400-V, 3,000-r/min Servomotors of all
capacities
400-V, 2,000-r/min Servomotors of all
capacities
400-V, 1,000-r/min Servomotors of all
capacities
400-V, 1,500-r/min Servomotors of all
capacities
31
47
10
J A E
8
φ15.6
52
φ20
φ19.5
