8-10
8-2 Gain Parameters
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
8
Parameter Details
The default setting is 180 for 200-V Servo Drives of 1 kW or higher, and 400-V Servo Drives.
Determine speed loop responsiveness.
The setting for the speed loop gain must be increased to increase the position loop gain and
improve the responsiveness of the entire servo system. Setting too high, however, may result in
vibration.
The setting unit for Pn101 will be Hz if the Inertia Ratio (Pn004) is set correctly.

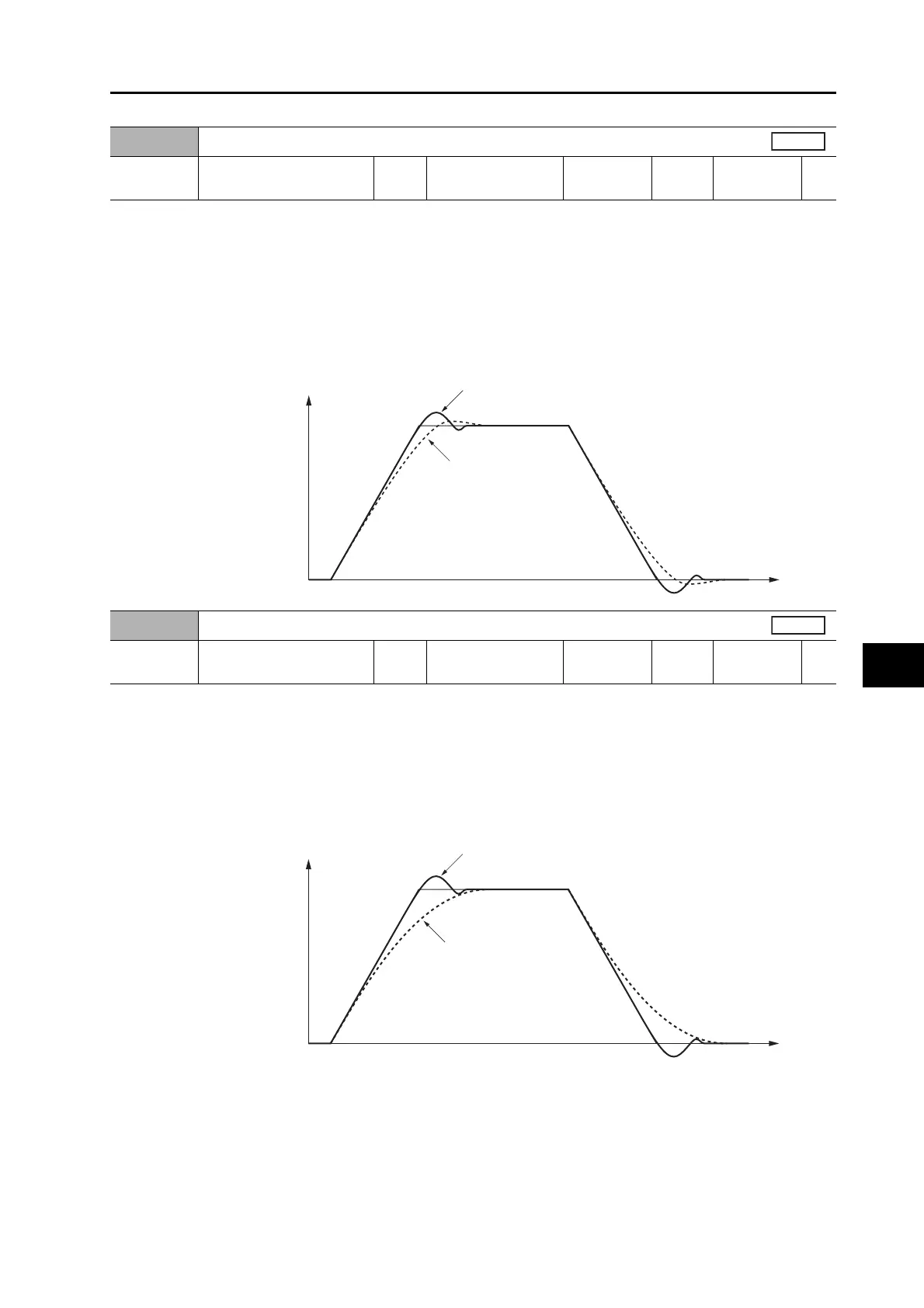

When the speed loop gain is changed, the response is as shown in the following diagram.
The default setting is 310 for 200-V Servo Drives of 1 kW or higher, and 400-V Servo Drives.
Set the speed loop integral time constant.
The smaller the set value, the faster the error approaches 0 when stopping. Set to 9,999 to
maintain integration. Set to 10,000 to invalidate the effect of integration.
When the speed loop integral time constant is changed, the response is as shown in the
following diagram.
Pn101
Speed Loop Gain
Setting
range
1 to 32,767 Unit 0.1 Hz
Default
setting
270 *
Power OFF
and ON
All
Motor speed
Time
Overshooting occurs if the speed loop gain is high.
(Vibration occurs if the gain is too high.)
Speed loop gain is low.
Pn102
Speed Loop Integral Time Constant
Setting
range
1 to 10,000 Unit 0.1 ms
Default
setting
210 *
Power OFF
and ON
All
Motor speed
Time
Overshooting occurs if the speed loop integral
time constant is small.
Speed loop integral
time constant is large.
