STC-MBS500POE / STC-MCS500POE
Product Specifications and User’s Guide
9.4 Edge Preset Trigger Mode (Trigger input while image is out)
In this trigger mode with positive polarity, the expose starts at rising edge of trigger signal. The exposure duration
time is based on the preset exposure setting stored by camera setting communication.
In this trigger mode with negative polarity, the expose starts at falling edge of trigger signal. The exposure duration
time is based on the preset exposure setting stored by camera setting communication.
However, if the trigger signal input while exposing with previous trigger signal or output image, trigger signal is
disregard.

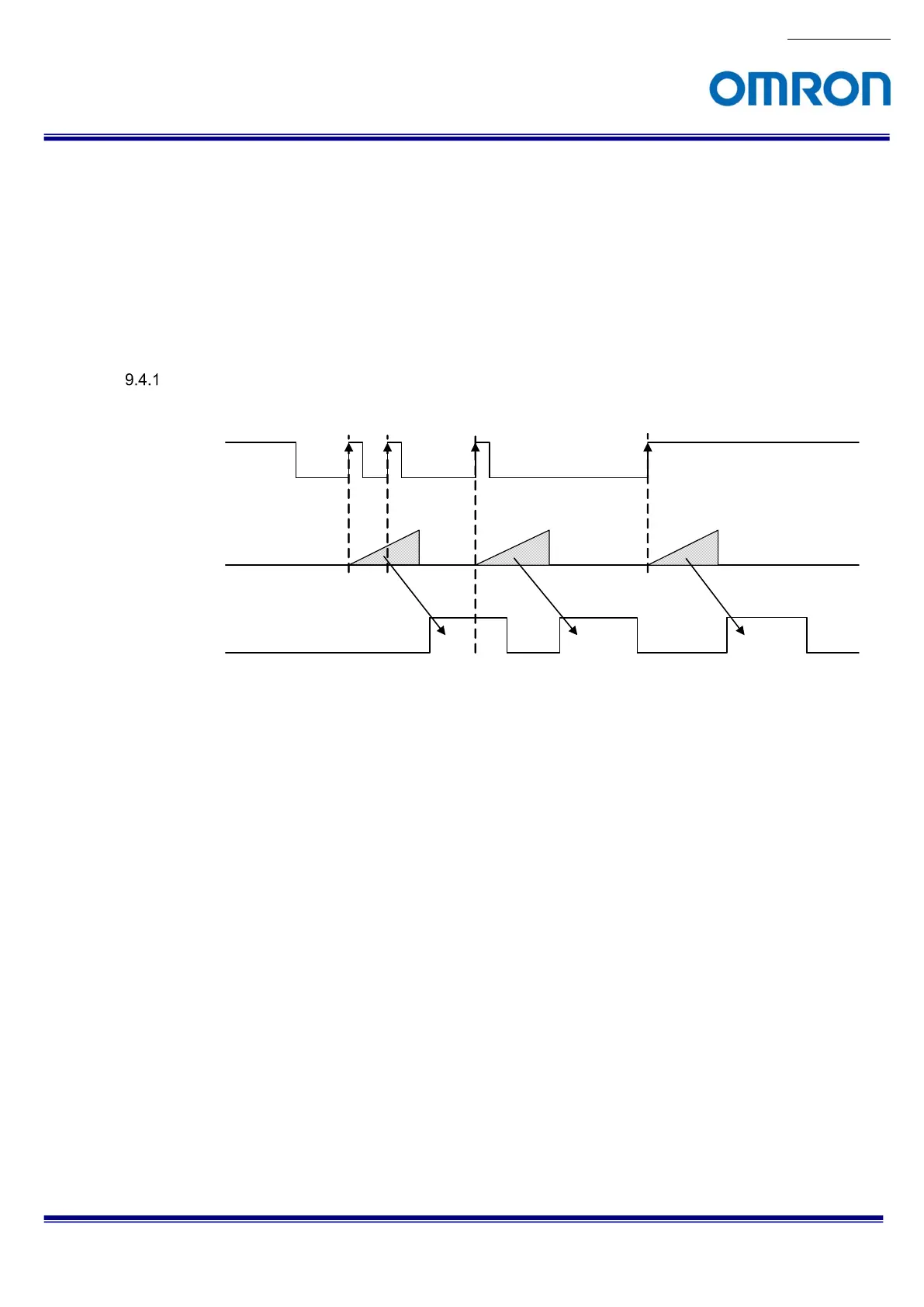

Timing
Expose
Image out
Trigger signal
(Positive polarity)
Note: The exposure time is “Exposure Time” on GenICam setting.
