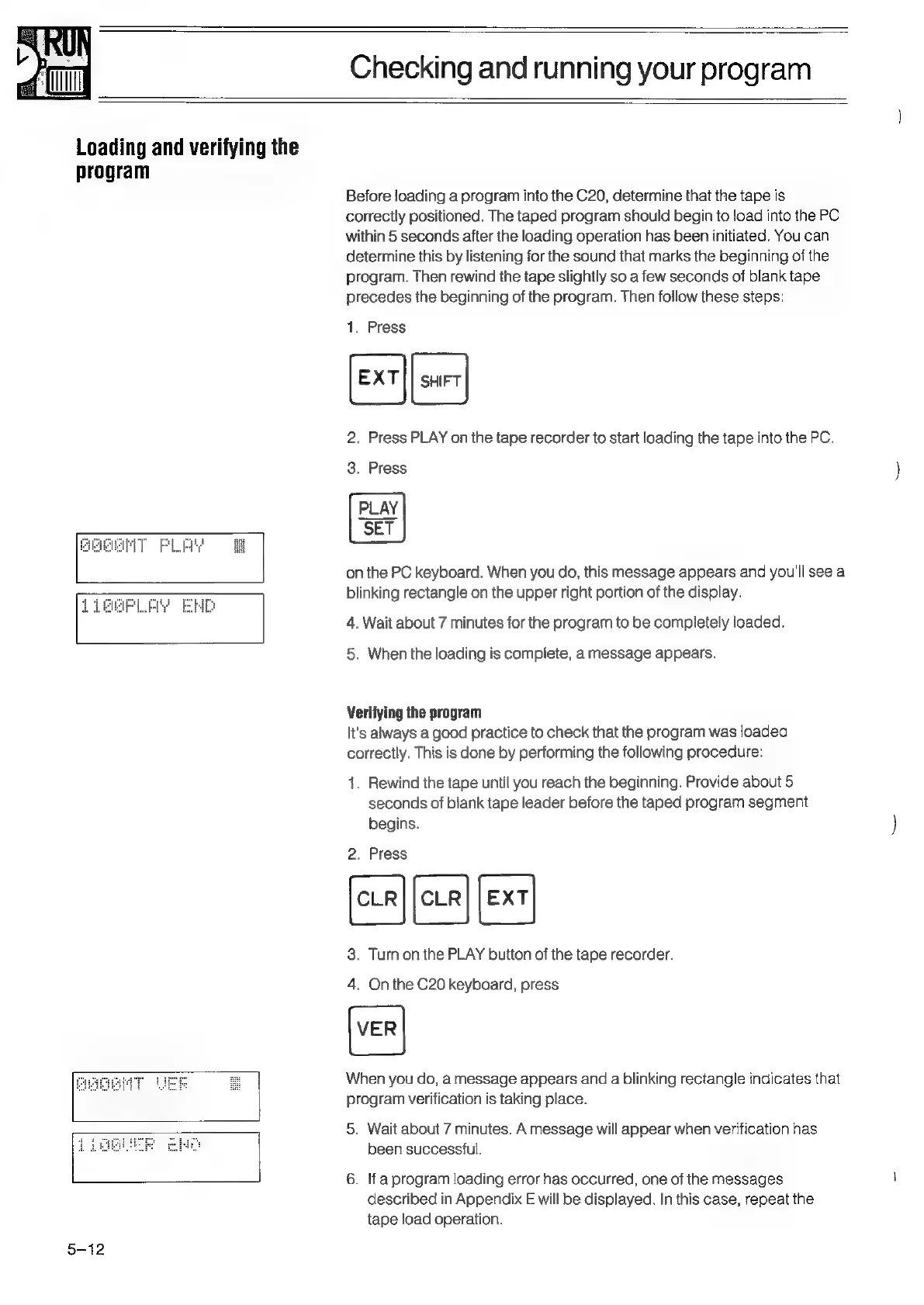

Checking and running your program
Loading and verifying the
program
Before loading a program into the C20, determine that the tape is
correctly positioned. The taped program should begin to load into the PC
within 5 seconds after the loading operation has been initiated. You can
determine this by listening for the sound that marks the beginning of the
program. Then rewind the tape slightly so a few seconds of blank tape
precedes the beginning of the program. Then follow these steps:
1. Press
2. Press PLAY on the tape recorder to start loading the tape into the PC.
3. Press
PLAY
SET
on the PC keyboard. When you do, this message appears and you'll see a
blinking rectangle on the upper right portion of the display.
4. Wait about 7 minutes for the program to be completely loaded.
5. When the loading is complete, a message appears.
Verifying the program
It's always a good practice to check that the program was loaded
correctly. This is done by performing the following procedure:
4. Rewind the tape until you reach the beginning. Provide about 5
seconds of blank tape leader before the taped program segment
begins.
2. Press
3. Turn on the PLAY button of the tape recorder.
4. On the C20 keyboard, press
VER
When you do, a message appears and a blinking rectangle indicates that
program verification is taking place.
5. Wait about 7 minutes. A message will appear when verification has
been successful.
6. Ifa program loading error has occurred, one of the messages
described in Appendix E will be displayed. In this case, repeat the
tape load operation.
