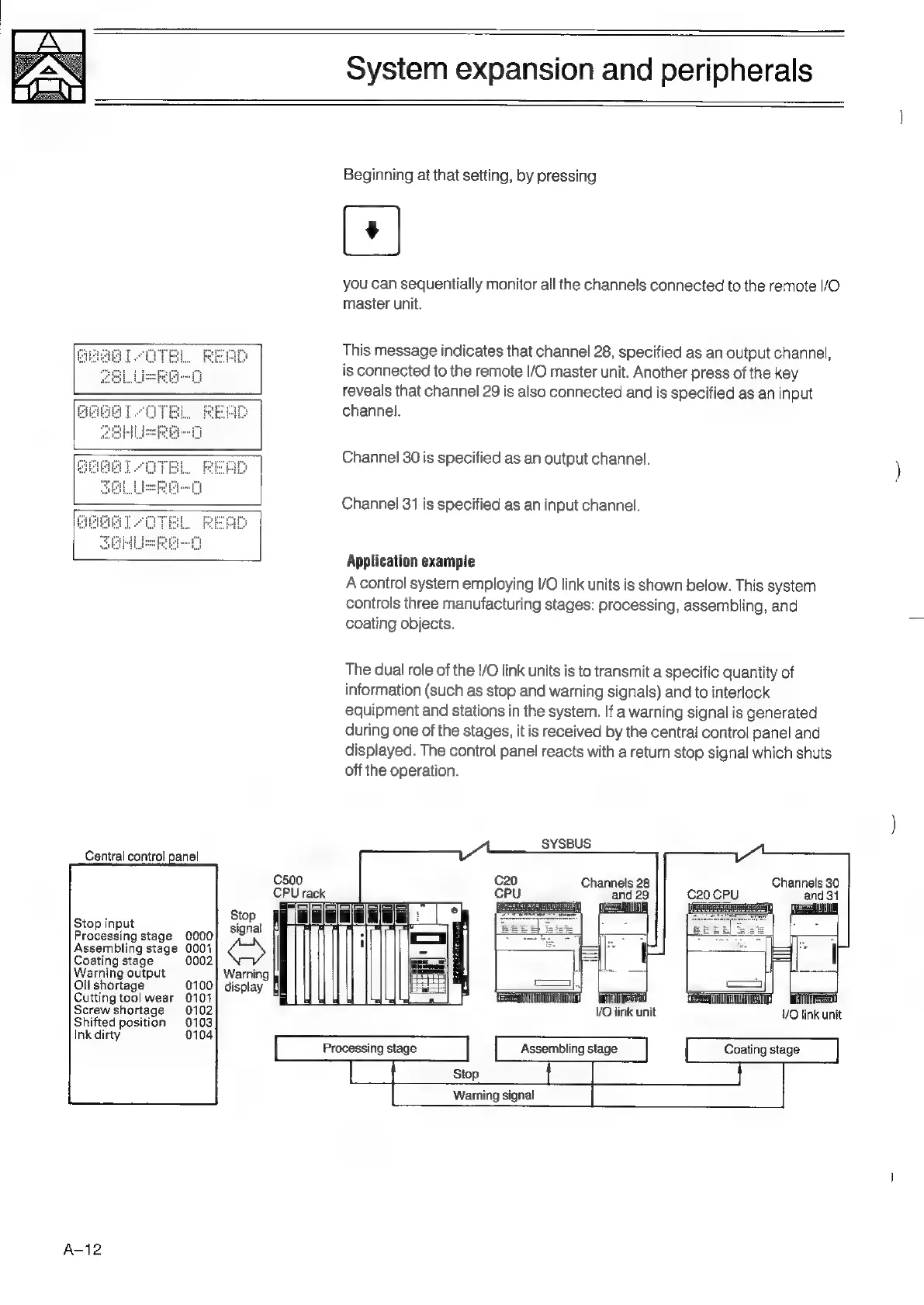

System
expansion
and
peripherals
Central
control
panel
i
Stop
Stop
input
signal
Processing
stage
Assembling
stage
Coating
stage
Warning
output
Warning
Oil
shortage
0100]
display
Cutting
tool
wear
0101
Screw
shortage
0102
Shifted
position
0103
Ink
dirty
0104
A-12
C500
CPU
rack
.
Processing
stage
Beginning
at
that
setting,
by
pressing
[+
|
you
can
sequentially
monitor
all
the
channels
connected
to
the
remote
I/O
master
unit.
This
message
indicates
that
channel
28,
specified
as an
output
channel,
is
connected
to
the
remote
I/O
master
unit.
Another
press
of
the
key
reveals
that
channel
29
is
also
connected
and
is
specified
as
an
input
channel.
Channel
30
is
specified
as
an
output
channel.
Channel
31
is
specified
as
an
input
channel.
Application
example
A
control
system
employing
I/O
link
units
is
shown
below.
This
system
controls
three
manufacturing
stages:
processing,
assembling,
and
coating
objects.
The
dual
role
of
the
!/O
link
units
is
to
transmit
a
specific
quantity
of
information
(such
as
stop
and
warning
signals)
and
to
interlock
equipment
and
stations
in
the
system.
If
a
warning
signal
is
generated
during
one
of
the
stages,
it
is
received
by
the
central contro!
panel
and
displayed.
The
control
panel
reacts
with
a
return
stop
signal
which
shuts
off
the
operation.
SYSBUS
Channels
30
and
31
Channels
28
and'29
==]
5
pee
HA
MEE
1/0
ink
unit
VO
link
unit
Assembling
stage
Coating
stage
Stop
Warning
signal
