Omron SYSMAC C Series User Manual

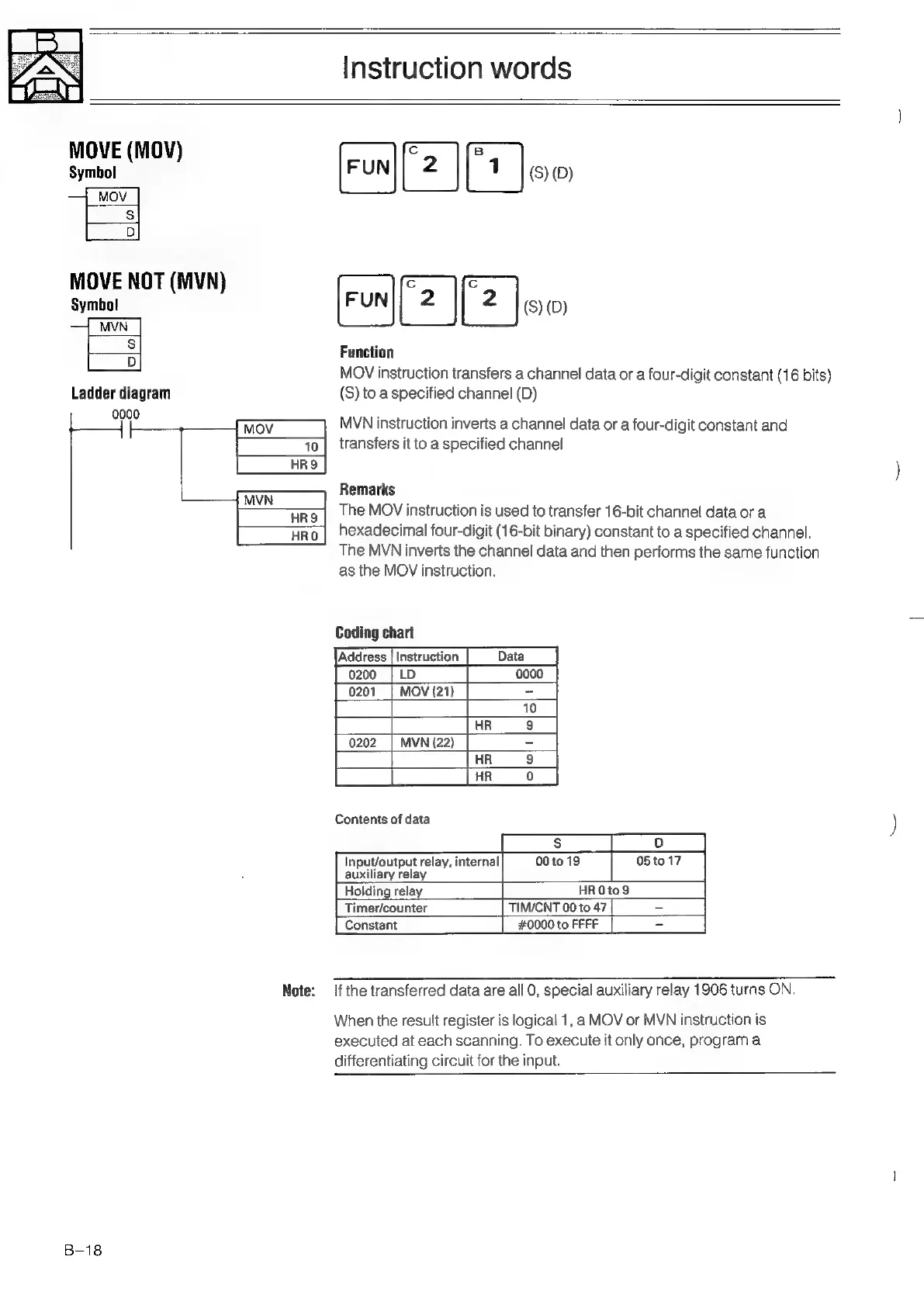

Instruction words
MOVE (MOV)
Symbol
MOV
MOVE NOT (MVN)
Symbol
MVN
S
D
Ladder diagram
0000
Note:
c
Function
MOV instruction transfers a channel data or a four-digit constant (16 bits)
(S) to a specified channel (D)
(S) (D)
MVN instruction inverts a channel data or a four-digit constant and
transfers it to a specified channel
Remarks
The MOV instruction is used to transfer 16-bit channel data or a
hexadecimal four-digit (16-bit binary) constant to a specified channel.
The MVN inverts the channel data and then performs the same function
as the MOV instruction.
Coding chart
[Instruction | __ Data |
| 0200 [to | œ0%0 |
MOV (21) one |
ae eee
nee need T
MVN (22) a
———
Contents of data
Input/output relay, internal 00 to 19 05to 17
auxiliary relay
Holding relay HR Ot
Timer/counter TIM/CNT 00 to 47
Constant #0000 to FFFF
if the transferred data are all 0, special auxiliary relay 1906 turns ON.
When the result register is logical 1, a MOV or MVN instruction is
executed at each scanning. To execute it only once, programa
differentiating circuit for the input.
