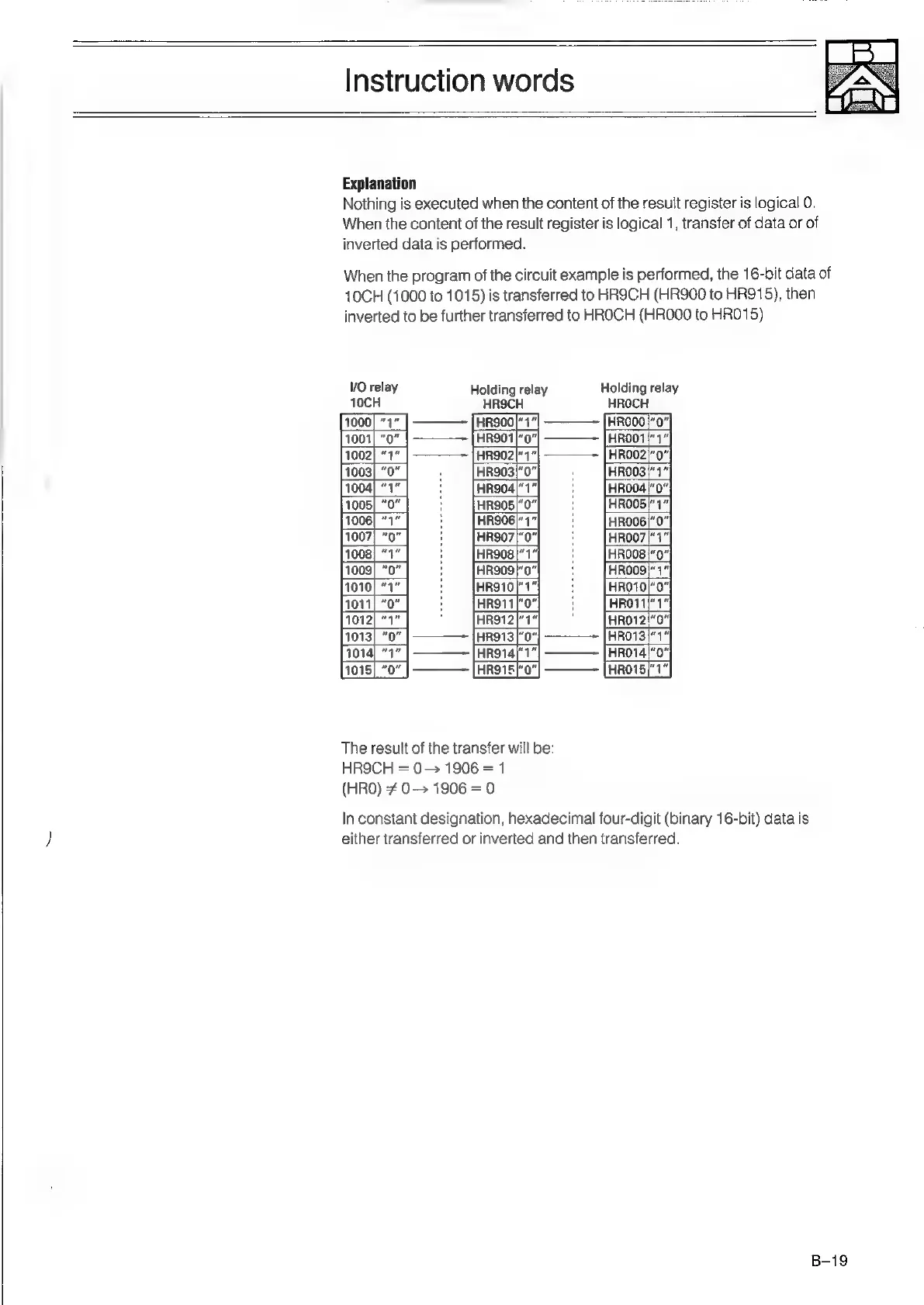

Instruction words
Explanation
Nothing is executed when the content of the result register is logical 0.
When the content of the result register is logical 1, transfer of data or of
inverted data is performed.
When
the
program
of
the
circuit
example
is
performed,
the
16-bit
data
of
10CH
(1000
to
1015)
is
transferred
to
HRICH
(HR900
to
HR915),
then
inverted
to
be
further
transferred
to
HROCH
(HROOO
to
HRO15)
I/O relay Holding relay Holding relay
10CH HRSCH HROCH
The result of the transfer will be:
HR9CH = 0-> 1906 = 1
(HRO) # 0— 1906 =0
In constant designation, hexadecimal four-digit (binary 16-bit) data is
either transferred or inverted and then transferred.
B-19
