2 Instructions
2-140
CP1E CPU Unit Instructions Reference Manual(W483)

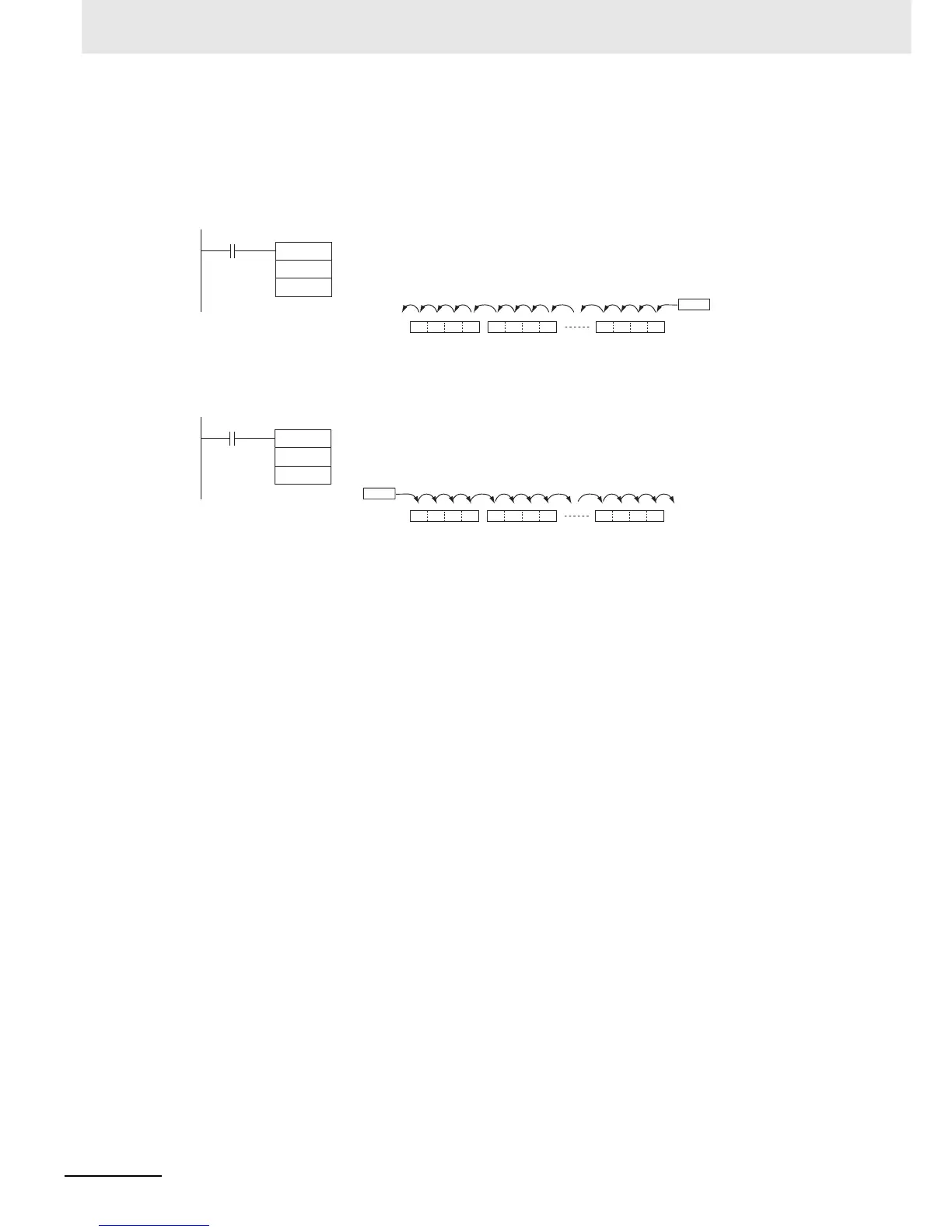

Sample program
 SLD
When CIO 0.00 is ON, words CIO 100 through CIO 102 will shift by one digit (4 bits) to the left. A zero
will be placed in bits 0 to 3 of word CIO 100 and the contents of bits 12 to 15 of CIO 102 will be lost.
 SRD
When CIO 0.00 is ON, words CIO 100 through CIO 102 will shift by one digit (4 bits) to the right. A zero
will be placed in bits 12 to 15 of CIO 102 and the contents of bits 0 to 3 of word CIO 100 will be lost.
SLD
100
102
0.00
St
E
Lost
0Hex
E: CIO 102 St+1: CIO 101 St: CIO 100
15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
SRD
100
102
0.00
St
E
Lost
0Hex
E: CIO 102 St+1: CIO 101 St: CIO 100
15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0 15 12 11 8 7 4 3 0
