Sample program
 Converting ASCII Text in Decimal Notation to Floating-point Data

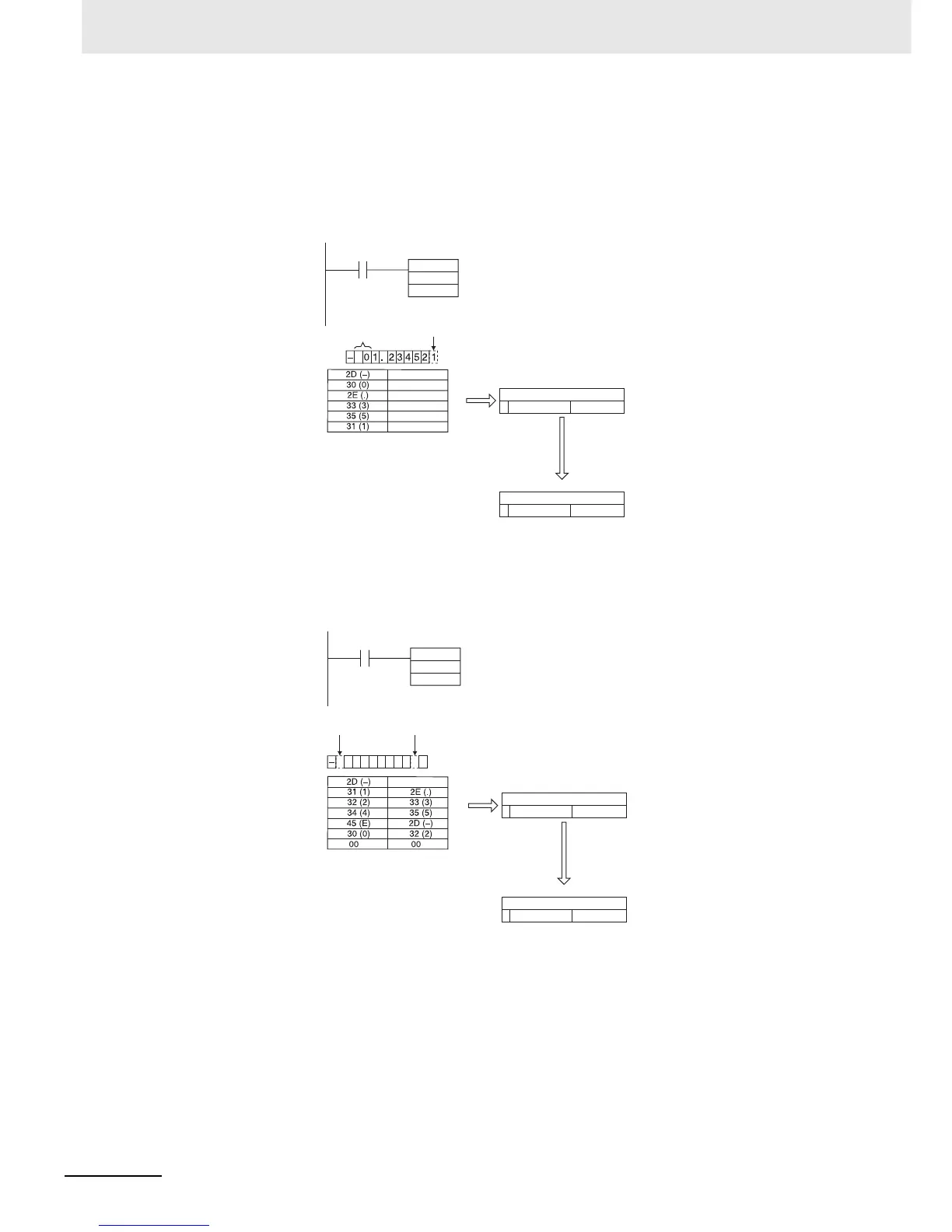

When CIO 0.00 is ON in the following example, FVAL(449) converts the specified decimal-notation
ASCII text number in the source words starting at D0 to floating-point data and writes the result to des-
tination words D100 and D101.
 Converting ASCII Text in Scientific Notation
When CIO 0.00 is ON in the following example, FVAL(449) converts the specified scientific-notation
ASCII text number in the source words starting at D0 to floating-point data and writes the result to des-
tination words D100 and D101.
0000010011000000
101111111
0011110
0.00
15 0
D100
D101
20 (Space)
31 (1)
32 (2)
34 (4)
32 (2)
00
D0
D1
D2
D3
D4
D5
0000010011000000
101111111
0011110
15 0
FVAL
D0
D100
The 7th and higher digits are ignored.
(The sign, decimal point, and leading
zeroes/spaces are not counted.)
Ignored
Conversion
Storage
0100001010101111
1011110001001010
0.00
15 0
D100
D101
D0
D1
D2
D3
D4
D5
D6
0100001010101111
1011110001001010
15 0
FVAL
D0
D100
1. 2345E-02
Ignored Ignored
Conversion
Storage
20 (Space)
