Omron SYSMAC CP Series Instruction & Reference Manual

2-19
2 Instructions
CP1E CPU Unit Instructions Reference Manual(W483)
Sequence Output Instructions
2
OUT/OUT NOT
Hint
• Immediate refreshing (!) can be specified for OUT and OUT NOT. An immediate refresh instruction
updates the status of the built-in output terminal just after the instruction is executed for the CPU Unit,
at the same time as it writes the status of the execution condition (power flow) to the specified output
bit in I/O memory.
• Difference between SET/RSET and OUT
For OUT, the operand bit is turned ON when the input condition turns ON and is turned OFF when
the input condition turns OFF. For SET and RSET, the operand bit turns ON or OFF, respectively,
when the input condition turns ON and the operand bit does not change when the input condition
turns OFF.

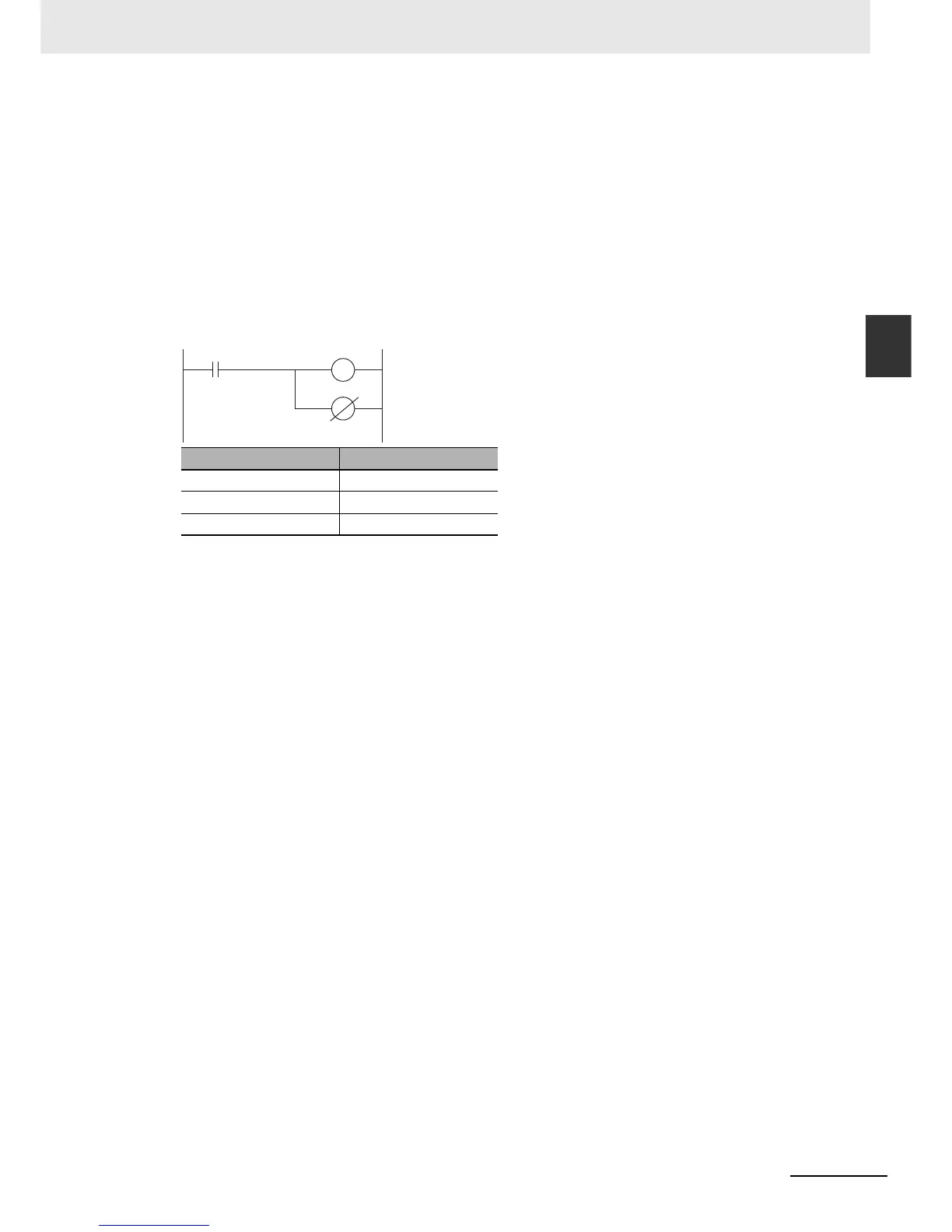

Sample program
Instruction Operand
LD 0.00
OUT 100.00
OUT NOT 100.01
0.00
100.00
100.01
