2-43
2 Instructions
CP1E CPU Unit Instructions Reference Manual(W483)
Sequence Control Instructions
2
IL/ILC

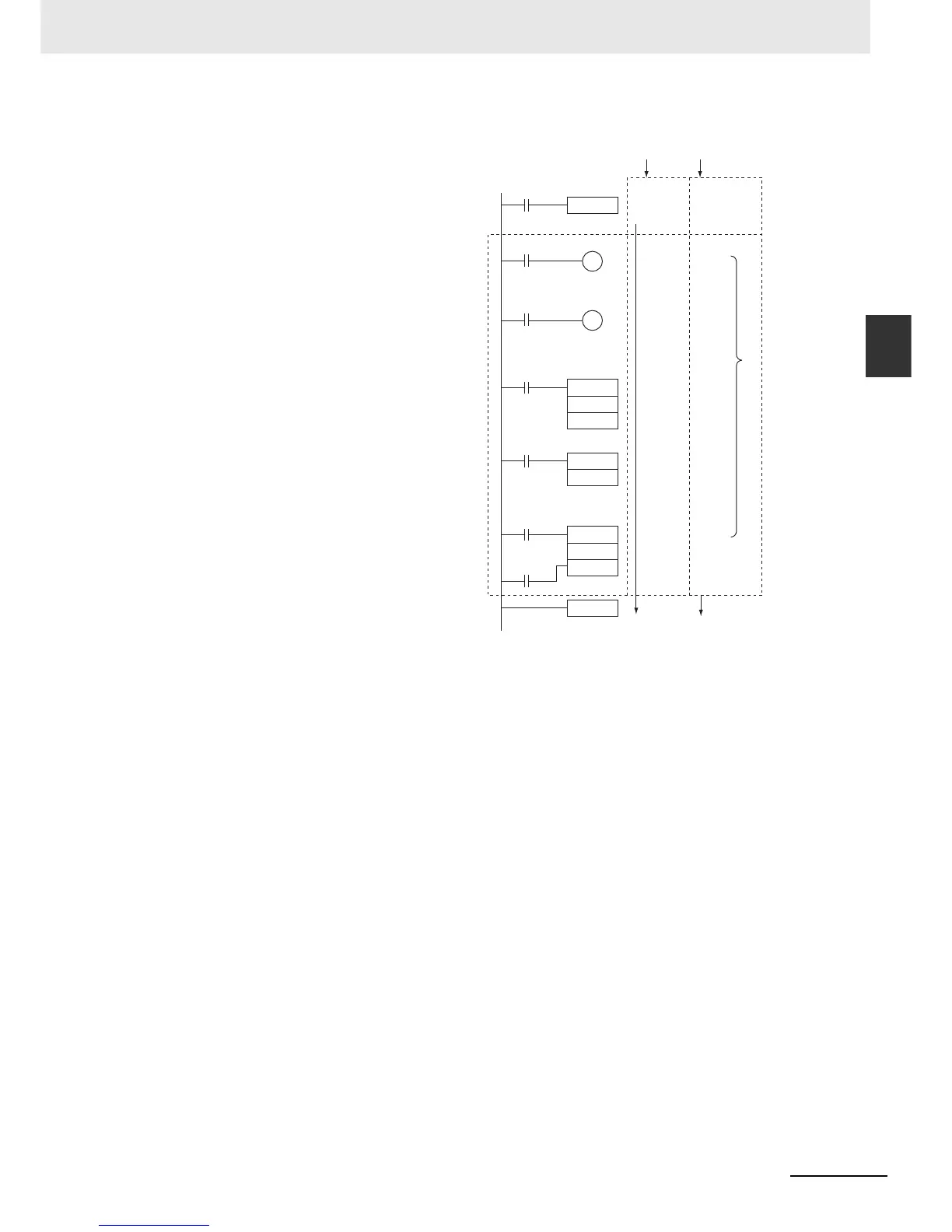

Sample program
When CIO 0.00 is OFF in the right
example, all outputs between IL(002)
and ILC(003) are interlocked. When
CIO 0.00 is ON in the right example,
the instructions between IL(002) and
ILC(003) are executed normally.
IL
TIM
SET
0.03
CNT
ILC
0.00
0.01
0.02
2.00
H0
0.00 OFF
OFF
OFF
Reset
Retained
Retained
Normal
execution
Outputs
interlocked
0.00 ON
