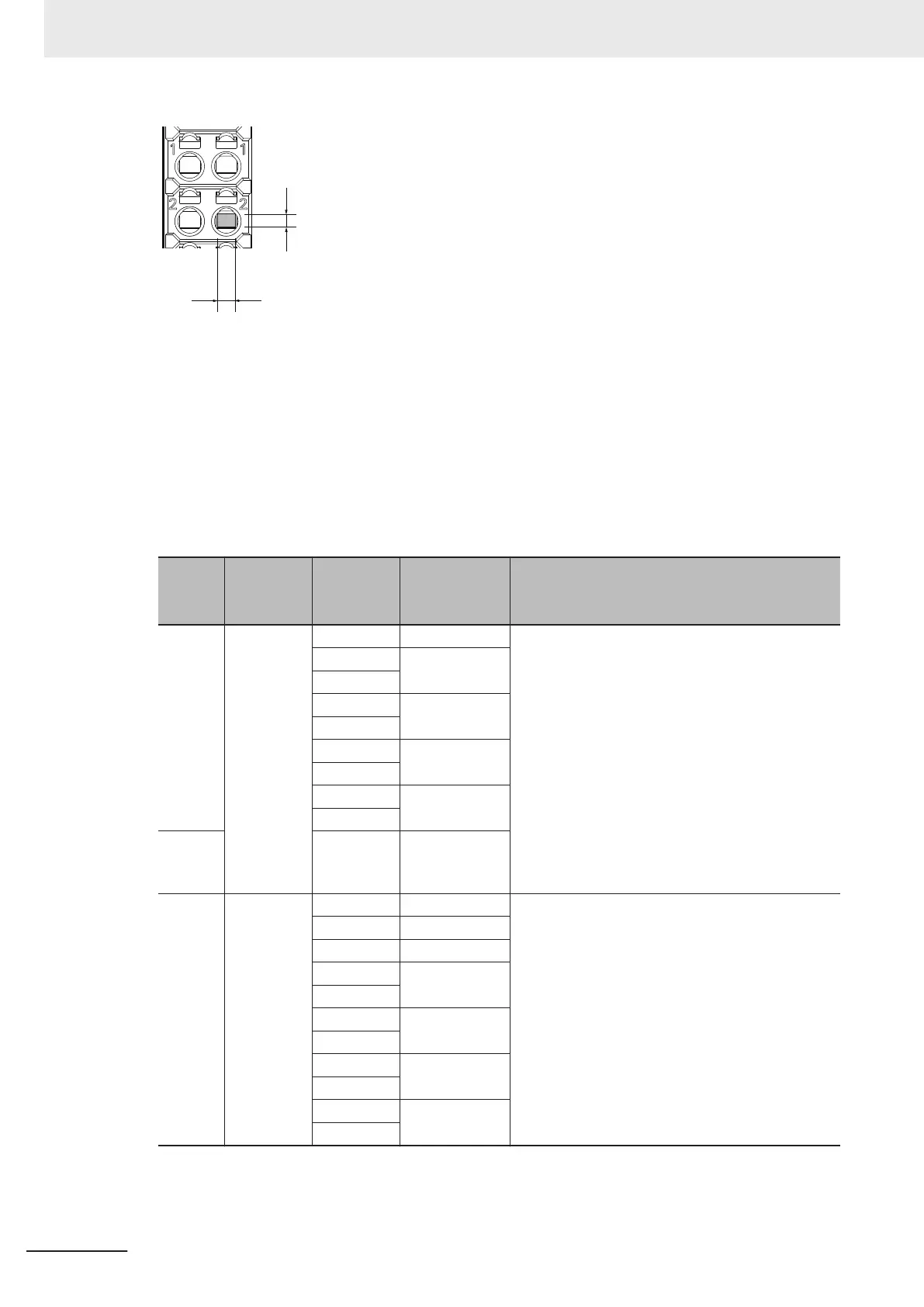

1.6 mm max. (except ground terminals)
2.0 mm max. (ground terminals)
2.4 mm max. (except ground terminals)
2.7 mm max. (ground terminals)

Using Ferrules
If you use ferrules, attach the twisted wires to them.
Observe the application instructions for your ferrules for the wire stripping length when attaching
ferrules.
Always use plated one-pin ferrules. Do not use unplated ferrules or two-pin ferrules.
The applicable ferrules, wires, and crimping tools are given in the following table.
Termi-
nal type
Manufac-
turer
Ferrule
model
Applicable
wire
(mm
2
(AWG))
Crimping tool
All ter-
minals
except
ground
termi-
nals
Phoenix
Contact
AI0,34-8
0.34 (#22) Phoenix Contact (Applicable wire sizes are given in
parentheses.)
CRIMPFOX 6 (0.25 to 6 mm
2
, AWG24 to 10)
AI0,5-8
0.5 (#20)
AI0,5-10
AI0,75-8 0.75 (#18)
AI0,75-10
AI1,0-8 1.0 (#18)
AI1,0-10
AI1,5-8 1.5 (#16)
AI1,5-10
Ground
termi-
nals
AI2,5-10
2.0
*1
All ter-
minals
except
ground
termi-
nals
Weidmuller H0.14/12 0.14 (#26) Weidmuller (Applicable wire sizes are given in pa-
rentheses.)
PZ6 Roto (0.14 to 6 mm
2
, AWG26 to 10)
H0.25/12
0.25 (#24)
H0.34/12 0.34 (#22)
H0.5/14 0.5 (#20)
H0.5/16
H0.75/14 0.75 (#18)
H0.75/16
H1.0/14 1.0 (#18)
H1.0/16
H1.5/14 1.5 (#16)
H1.5/16
*1.
Some AWG14 wires exceed 2.0 mm
2
and cannot be used in the screwless clamping terminal block.
4 Installation and Wiring
4-46
NX-series System Units User's Manual (W523)
