3-3SectionMounting of ID Controller
16
3-2 Installation Environment
Although the ID Controller V60-CD1D has a high reliability and strong environ-
mental durability as a control component, take the following into consideration
when installing the ID Controller in order to improve the reliability of the overall
system and to make the best use of its functions:
Installation Location
Do not install the ID Controller at the following locations:
• Where the temperature falls below –10°C or rises above +55°C, or where the
temperature fluctuation is great and condensation is generated.
• Where the relative humidity falls below 35% or exceeds 85%.
• Where it is subject to corrosive gas, flammable gas, dust, salt, and iron chips.
• Where it is subject to direct vibration or shock.
• Where it is subject to direct sunlight.
• Where it is subject to splashes of water, oil, and chemical substances.
Mounting Position in a Control Panel
The operating temperature range of the ID Controller is from –10°C to +55°C.
When installing the Controller in a control panel, pay attention to the following
points:
• Provide enough space around the Controller for ventilation purposes.
• Do not install the Controller in the vicinity of equipment generating heat (such
as heaters, transformers, and large resistors).
• If there is a possibility that the temperature exceeds +55°C, install a fan or air
conditioner for forced cooling.
3-3 Mounting of ID Controller

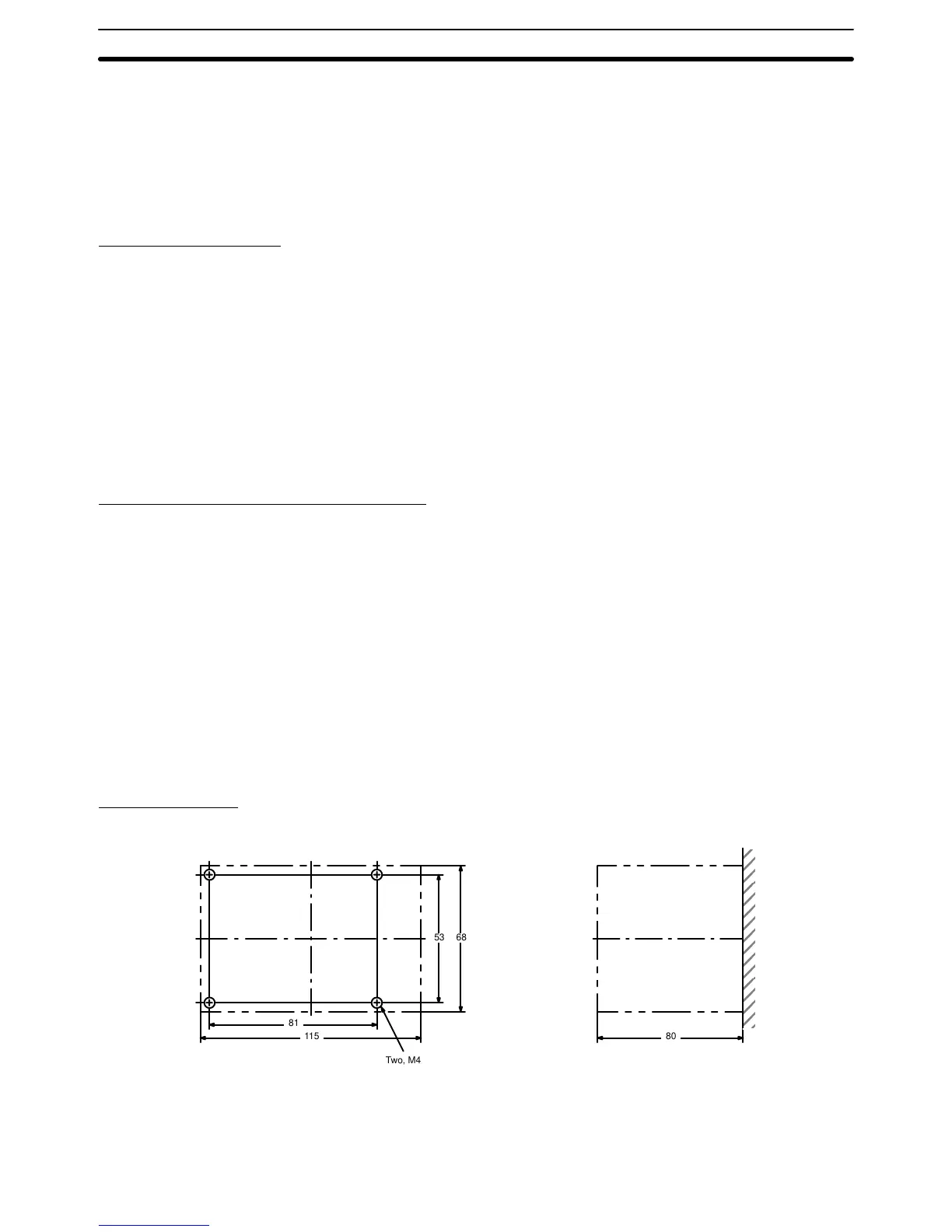

Panel Mounting
