4-4SectionTypes of Commands and Responses
45
4-4-13 Controller Control Command (CC)
Manipulates/reads I/O.

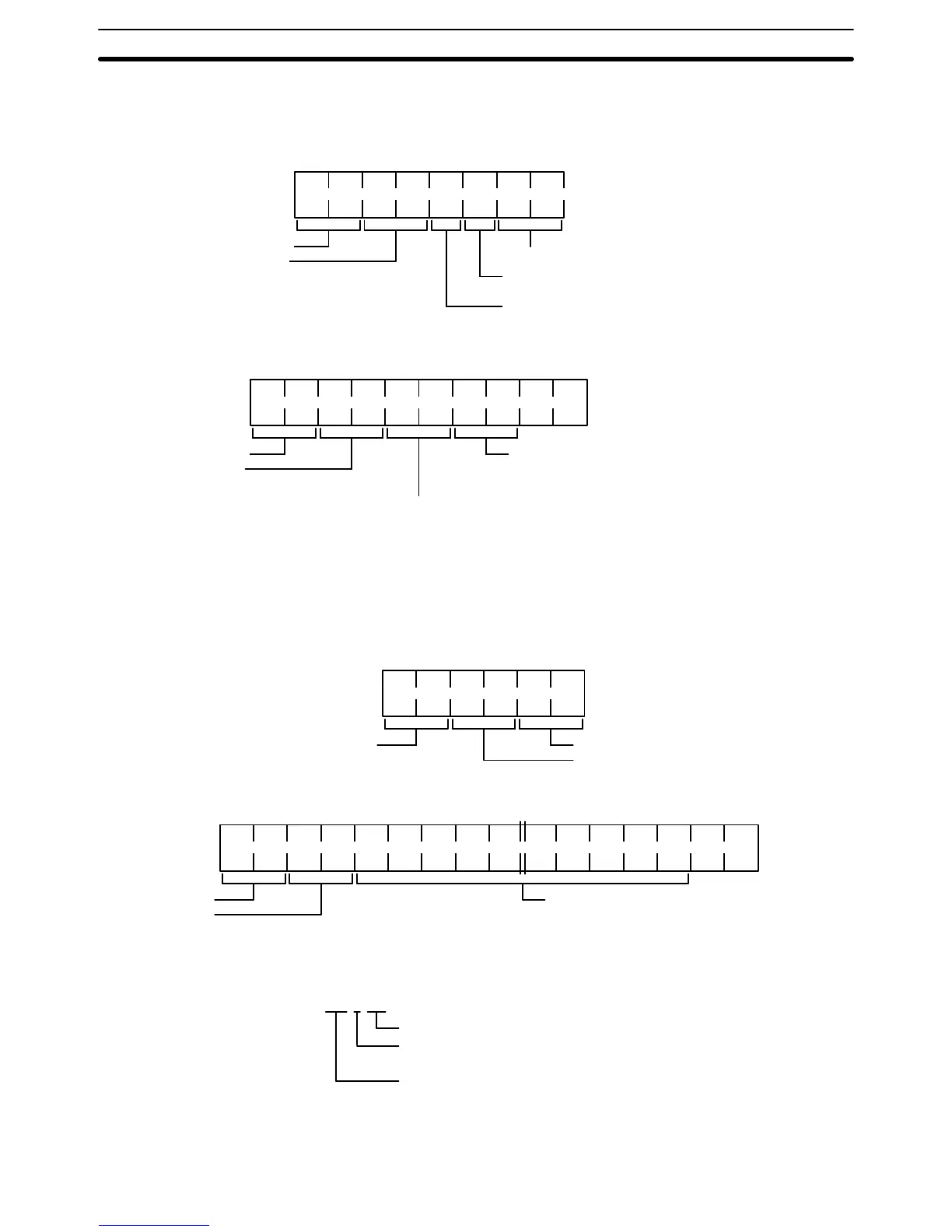

Command Format
CC0001 CR
Header
Terminator
Processing code
(fixed to 00)
OUT 2 manipulation
(0: Not manipulated, 1: ON, 2: OFF)
OUT 1 manipulation
(0: Not manipulated, 1: ON, 2: OFF)
Response Format
CC000111 CR
Header
End code
Output status after manipulation
1st character: OUT1,
2nd character: OUT2
1: ON, 0: OFF
Current input status
1st character: IN1,
2nd character: IN2
1: ON, 0: OFF
4-4-14 Error Information Read Command (CF)
Reads the latest error log information.
Command Format
CF00 CR
Header
Terminator
Processing code (fixed to 00)
Response Format
Header
End code
CF00RD170RD 14 CR
Latest error log information (new -> old)
The latest error log information is arranged in the order of occurrence and five
characters indicate one error.
RD 1 7 0
Code of error that has occurred
No. of head in which error has occurred (lower communication error only)
If error other than lower communication error has occurred, (space).
Command in which error has occurred
Note The error log information is cleared by means of power reset. If this command is
executed in this status, no error log information is read.
