4-4SectionTypes of Commands and Responses
37
Response Format
RD00XXX X
∗
Header
Read data
Read
∗
End code
00: Normal completion
Note If the Data Carrier is missing, “RD72” is returned.
4-4-2 Write (WT)
Writes data to the Data Carrier. If the Data Carrier is missing, an error response
(end code: 72 = Data Carrier missing) is returned.

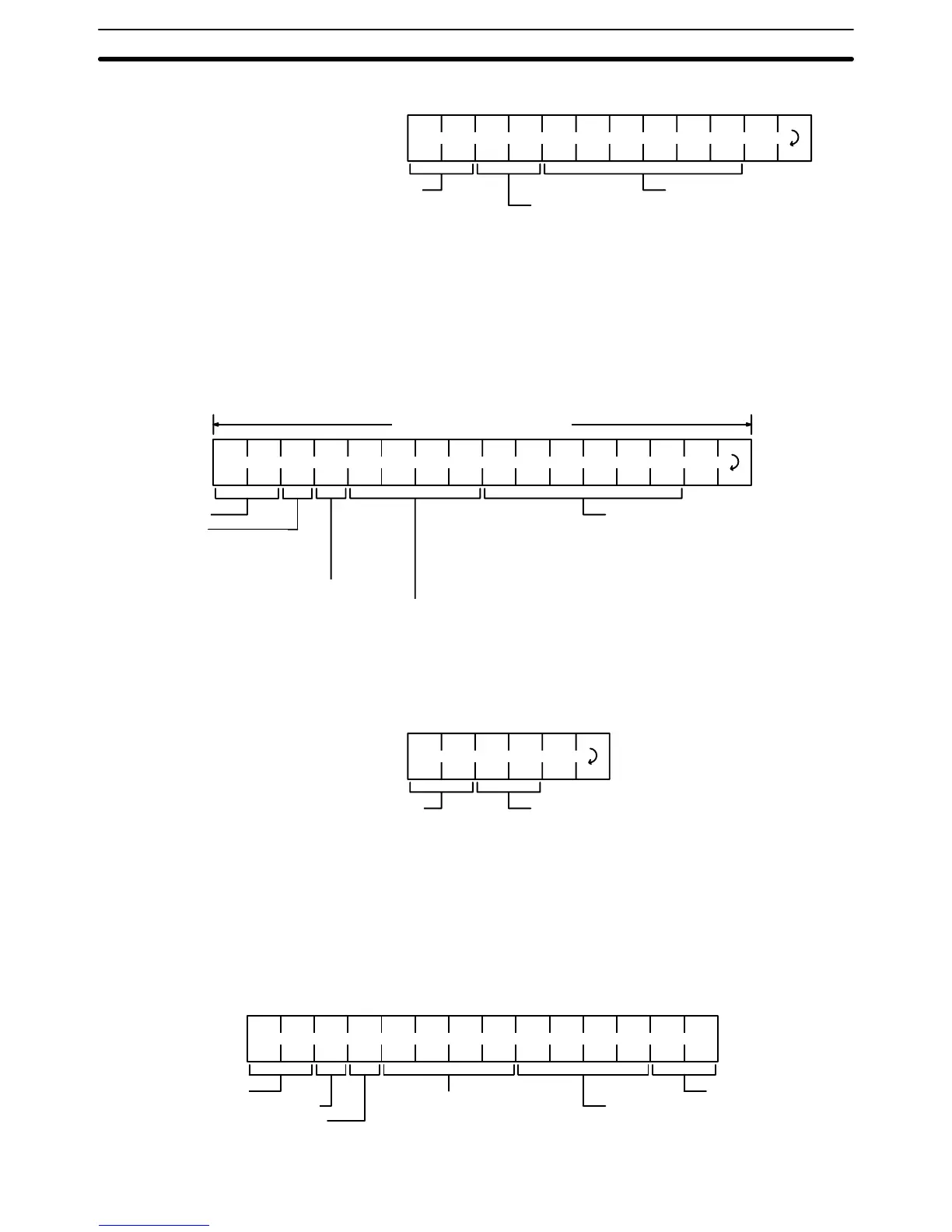

Command Format
WTA/H1XXXXXXX X
1 frame = 266 characters max.
∗
Header
ASCII/HEX code specification
A: ASCII code, JIS 8 code
H: HEX code
R/W Head No. specification (fixed to 1)
First address No. specification range
0000-07FF (2KB type)
0000-1FFF (8KB type)
Note: Addresses 0000 and 0001 cannot be
written as these are a production date area.
Specify the number of bytes to be writ-
ten. The number of bytes that can be
read at a time is as follows:
ASCII: 256 characters (256 bytes)
HEX: 256 characters (128 bytes)
Write
Response Format
WT 0 0Write
End code
00: Normal completion
∗
Header
Note If the Data Carrier is missing, “WT72” is returned.
4-4-3 Expansion Read Command (XR)
Performs batch read processing of up to 2 KB. The processing procedure to the
DC is the same as that of the read command.
Command Format
XRH/A1XXXXXXXX CR
Header
ASCII/HEX code specification No. of bytes read
∗
Terminator
First address
specification
(0000-FFFF)
R/W Head No. specification
(fixed to 1)
