3-4SectionConnecting Connector
17

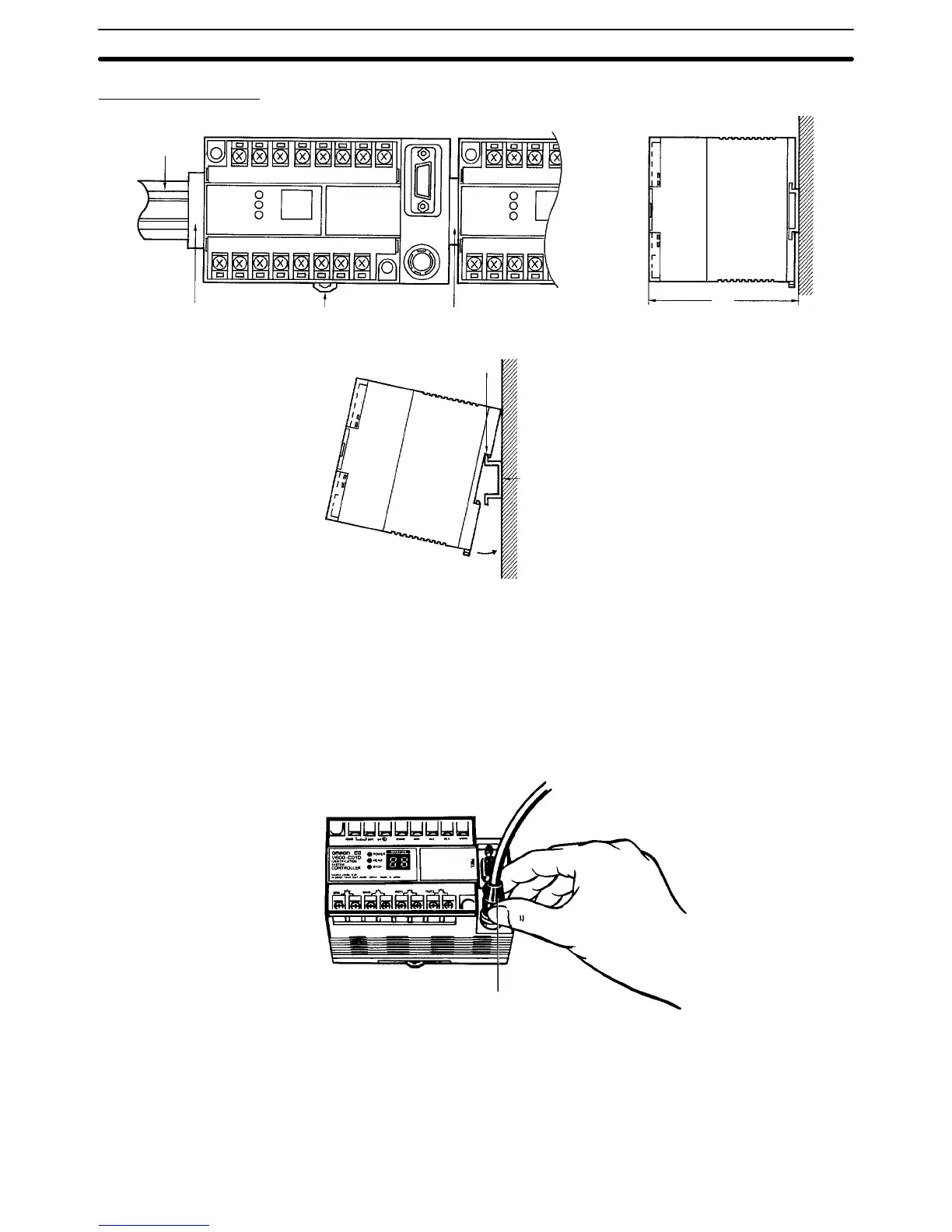

DIN Rail Mounting
80
DIN rail
End plate Mounting hook Spacer
Recommended DIN rail
B
A
1, 2, 3... 1. To mount the ID Controller on a DIN rail, first engage part A, and then push
the ID Controller in direction B.
2. To remove the Controller from the DIN rail, pull the mounting hook of the
Controller toward you.
3-4 Connecting Connector
To Connect
Rubber mold
1, 2, 3... 1. Hold the rubber mold of the connector and insert the connector into the mat-
ing connector on the ID Controller.
2. Push the connector straight in until it is locked.
Note The connector is not locked when it is pushed while holding the ring.
Be sure to hold the rubber mold.
To Next Page
