4-3SectionCommand Format
34

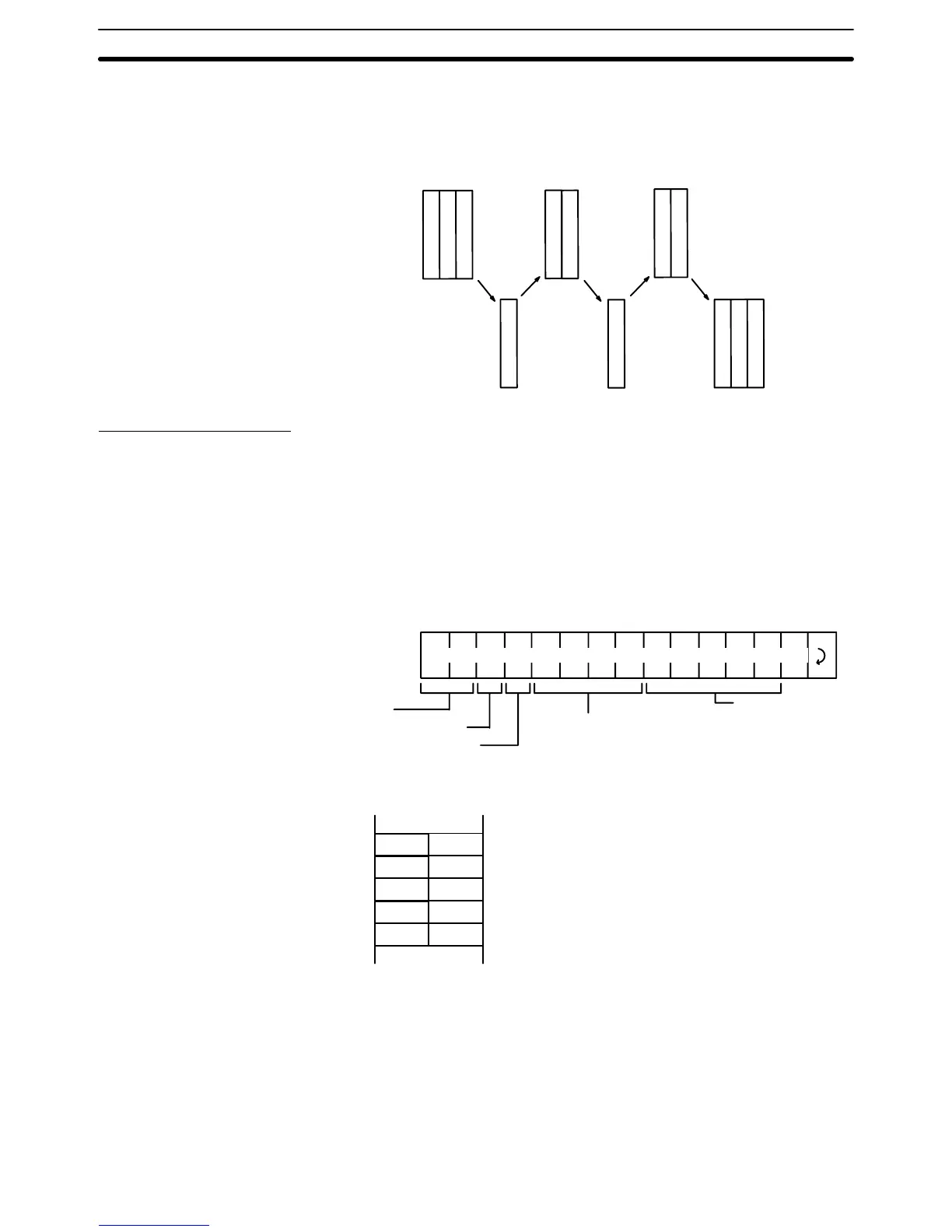

If command length exceeds 266 characters (for expansion write command):
When the ID Controller receives a command which is not the last frame, it
transmits a delimiter (CR) to the host controller, and is ready to receive the
next command frame.
Command
Response
<Host >
<ID Controller>
Delimiter: CR
Terminator
Text
Delimiter
Delimiter
Text
Delimiter
Terminator
Text
Header XW
Terminator
Text
Header XW
Specifying Data Code
Whether the read or write data is treated as an ASCII (or JIS 8) code or HEX code
is specified in a command.
ASCII (JIS 8 Code)
When the data length is specified to be 7 bits by the DIP switch of the ID Control-
ler, ASCII is specified. When the data length is specified to be 8 bits, the JIS 8
code is specified.
One character of ASCII or JIS 8 code data occupies 1 byte (1 address) of the
Data Carrier memory.
Example of specifying ASCII code:
Header
First address
Write data
Command
ASCII specification
R/W Head No. specification
(fixed to 1)
WTA10010OMRON∗
Data Carrier memory address:
Address
0010
0011
0012
0013
0014
“O”
“M”
“R”
“O”
“N”
4
4
5
4
4
F
D
2
F
E
Note For ASCII (JIS 8 code), refer to Appendix A.
Hex Code
One character is treated as a hexadecimal number. Therefore, only numerals 0
through 9 and A to F can be accepted.
Two characters of data occupy 1 byte (1 address) of the Data Carrier memory.
Therefore, specify data in 2-character units (in even numbers) when using a
write command. If an odd number of data is specified by mistake, an error oc-
curs.
